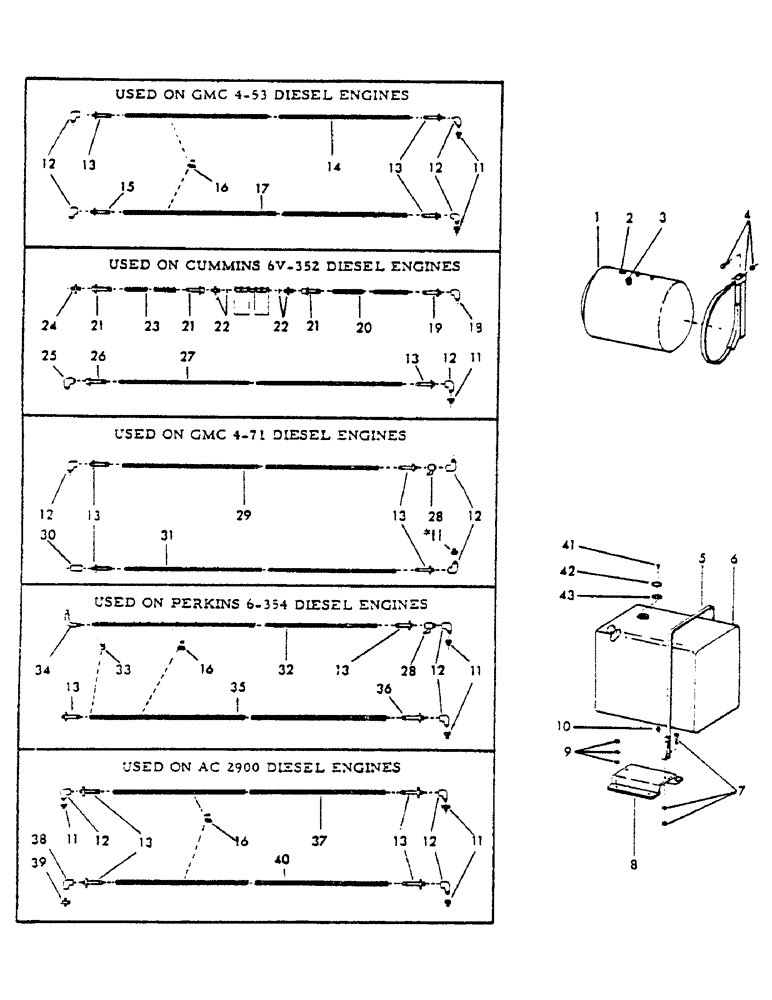

Запчасти Case 40EC (C13) - FUEL TANK AND LINES (02) - FUEL SYSTEM

1

S38176M2

TANK, fuel - (Includes items 2 and 3) - (Used with Cummins 6V-352, AC 2900, Perkins 6-354 and GMC 4-53 diesel engines)

1шт.

Change in listing.

1шт.

2

S502600

SENDER UNIT

GAUGE, fuel - (Electrical) - (Used with Cummins 6V-352, AC 2900, Perkins 6-354 and GMC 4-53 diesel engines)

1шт.

Change in listing.

1шт.

S49475

GASKET

1шт.

Added listing.

1шт.

S14530

SCREW, machine - #10 NF x 3/4" (Mounts, Serial Range: gauge-tank)

5шт.

Added listing.

1шт.

3

80526

RIVET,But Hd, 3/8" x 2"

CAP, fuel tank - (Used with Cummins 6V-352, AC 2900, Perkins 6-354 and GMC 4-53 diesel engines)

1шт.

4

207825

BRACKET, tank mounting - (Set of 2) - (Used with Cummins 6V-352, AC 2900, Perkins 6-534 and GMC 4-53 diesel engines)

2шт.

2467

CPSW - 1/2" x 1-1/2" NC grade 5

2шт.

17169

NUT - 1/2" NC

4шт.

5

81133

STRAP - fuel tank - (Used with GMC 4-71 diesel engines)

2шт.

6

502212M1

TANK, fuel - (Used with GMC 4-71 diesel engine)

1шт.

7

2402

LAMP

CPSW - 3/8" x 1-1/4" NC grade 5

4шт.

7385

WASHER, flat - 3/8"

4шт.

4222

NUT - 3/8" NC

4шт.

8

211621

SUPPORT, fuel tank mounting - (Used with GMC 4-71 diesel engines)

2шт.

9

4222

NUT - 3/8" NC

8шт.

7385

WASHER, flat - 3/8"

8шт.

4397

LOCKWASHER - 3/8"

8шт.

10

15162

PLUG, fuel tank - 1/4" NPT

1шт.

11

17551

BUSHING, reducer - 3/8" NPT male x 1/4" NPT female - (Quantity of 1 used with Cummins 6V-352 and GMC 4-71 diesel engines, quantity of 2 used with GMC 4-53 and Perkins 6-354 diesel engines and quantity of 1 used with AC 2900 diesel engines)

1шт.

12

63648

WEDGE,1.25" ID x 5" OD x 2.38"

ELBOW, 90 degrees - 1/4" NPT male x 1/4" NPT female - (Quantity of 1 used with Cummins 6V-352 diesel engines, quantity of 2 used with Perkins 6-354 diesel engines, quantity of 3 used with AC 2900, GMC 4-71 diesel engines and quantity of 4 used with GMC 4-

1шт.

13

63652

END, hose (Quantity of 1 used with Cummins 6V-352 diesel engines, quantity of 2 used with Perkins 6-354 diesel engines, quantity of 3 used with GMC 4-53, GMC 4-71 diesel engines and quantity of 4 used with AC 2900 diesel engines)

1шт.

14

63654

HOSE, low pressure - (Bulk) - 3/8" ID x 41" long - (Inlet) - (Used with GMC 4-53 diesel engines)

1шт.

15

67644

RESTRICTOR, fuel line - (Used with GMC 4-53 diesel engine)

1шт.

16

76696

CLAMP - (Quantity of 2 used with GMC 4-53, Perkins 6-354 and AC 2900 diesel engines)

1шт.

17167

LOCK NUT

NUT, self locking - 3/8" NC

1шт.

17

63654

HOSE, low pressure - (Bulk) - 3/8" ID x 62" long - (Return) - (Used with GMC 4-53 diesel engines)

1шт.

18

83167

ELBOW, 90 degrees - (Used with Cummins 6V-352 diesel engines)

1шт.

19

83165

END, hose - (Used with Cummins 6V-352 diesel engines)

1шт.

20

70628

HOSE

low pressure - (Bulk) - 1/2" ID x 40" long - (Inlet) - (Used with Cummins 6V-352 diesel engines)

1шт.

21

83166

PLATE

END, hose - (Used with Cummins 6V-352 diesel engines)

3шт.

22

7964

CONNECTOR - (1/2" tube) - 7/8" - 14 male x 3/4" - 16 male - 37 degrees flared - (Includes "O" ring) - (Used with GMC 4-53 diesel engines)

2шт.

6063

DECAL

"O" RING - .755" ID x .949" O.D.

2шт.

23

70628

HOSE

low pressure - (Bulk) - 1/2" ID x 50" long - (Inlet) - (Used with Cummins 6V-352 diesel engines)

1шт.

24

60833

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 3/8" - 18 male - 37 degrees flared - (Used with Cummins 6V-352 diesel engines)

1шт.

25

7734

PRESSURE SWITCH

ELBOW, 90 degrees - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared - (Used with Cummins 6V-352 diesel engines)

1шт.

26

83164

END, hose - (Used with Cummins 6V-352 diesel engines)

1шт.

27

63654

HOSE, low pressure - (Bulk) - 3/8" ID x 70" long - (Return) (Used with Cummins 6V-352 diesel engines)

1шт.

28

77280

VALVE, shut off (Quantity of 1 used with GMC 4-71 and Perkins 6-354 diesel engines)

1шт.

29

63654

HOSE, low pressure - (Bulk) - 3/8" ID x 120" long - (Inlet) - Used with GMC 4-71 diesel engines)

1шт.

30

17706

COUPLING - 1/4" NPT female x 1/4" NPT female - (Used with GMC 4-71 diesel engines)

1шт.

31

63654

HOSE, low pressure - (Bulk) - 3/8" ID x 120" long - (Return) - (Used with GMC 4-71 diesel engines)

1шт.

32

63654

HOSE, low pressure - (Bulk) - 3/8" ID x 100" long - (Inlet) - (Used with Perkins 6-354 diesel engine)

1шт.

33

16604

SPACER

CLAMP, spring - (Used with Perkins 6-354 diesel engines)

6шт.

34

209417

LINE, fuel (Used with Perkins 6-354 diesel engines)

1шт.

35

80943

HOSE, low pressure - (Bulk) - 1/4" ID x 100" long - (Return) (Used with Perkins 6-354 diesel engines)

1шт.

36

80944

SCREW

END, hose - (Used with Perkins 6-354 diesel engines)

1шт.

37

63654

HOSE, low pressure - (Bulk) - 3/8" ID x 100" long - (Inlet) - (Used with AC 2900 diesel engines)

1шт.

38

60912

ELBOW, 90 degrees - 1/4" - 18 NPT female x 1/4" - 18 NPT female (Used with AC 2900 diesel engines)

1шт.

39

82545

ADAPTER - (Used with AC 2900 diesel engines)

1шт.

40

63654

HOSE, low pressure - (Bulk) - 3/8" ID x 100" long - (Return) - (Used with AC 2900 diesel engine)

1шт.

41

14530

HARNESS

SCREW, machine - #10 x 3/4" NF - (Used with GMC 4-71 diesel engines)

5шт.

42

63590

COVER, gauge hole - (Used with GMC 4-71 diesel engines)

1шт.

43

49745

CONNECTING LINK

GASKET, gauge hole cover - (Used with GMC 4-71 diesel engines)

1шт.
