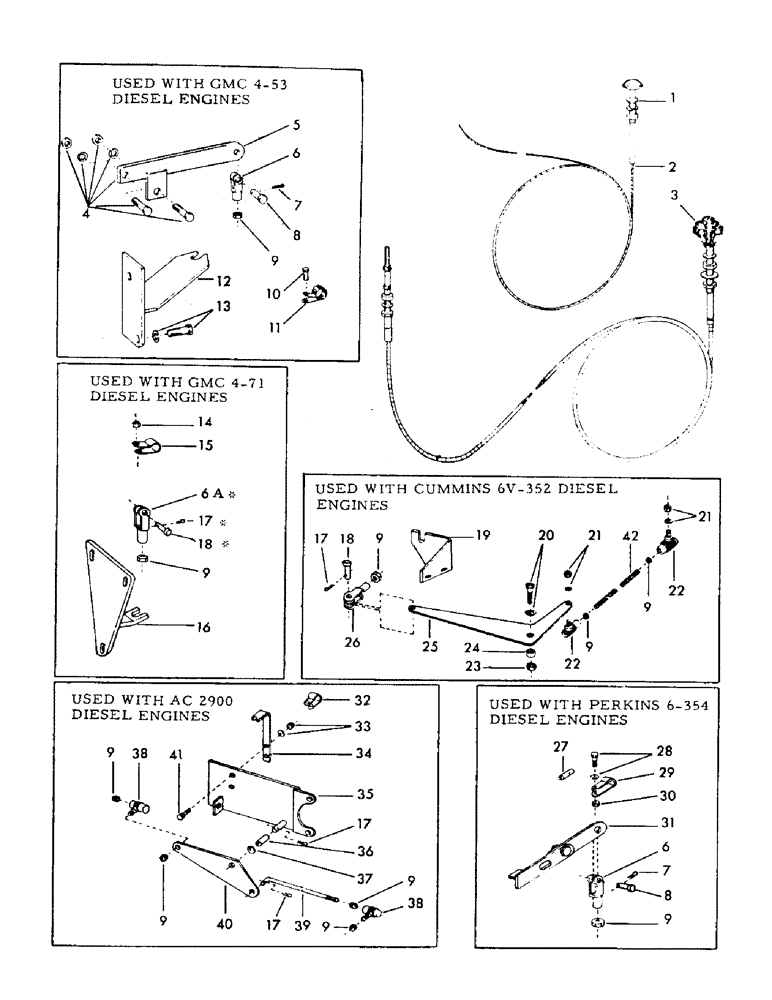

Запчасти Case 40EC (C20) - SHUT OFF, THROTTLE AND BRACKETS, (FOR GMC 4-71, GMC 4-53 (01) - ENGINE

1

7385

WASHER, flat - 7/8" - (Used on GMC 4-53 and AC 2900 diesel engines)

1шт.

2

201620M1

CABLE, choke and shut off

2шт.

3

405931M1

CABLE, throttle control

1шт.

4

2021

WASHER

CPSW - 5/16" x 1" NF gr. 5 - (Used on GMC 4-53 diesel engine)

2шт.

4396

LOCKWASHER - 5/16" - (Used on GMC 4-53 diesel engine)

2шт.

NZ4202

TOGGLE

NUT - 5/16" NF - (Used on GMC 4-53 diesel engine)

2шт.

5

208818

LEVER, throttle - (Used on GMC 4-53 diesel engine)

1шт.

6

12568

SNAP RING,M210, Int

YOKE - (Used on GMC 4-53 and Perkins 6-354 diesel engines)

1шт.

Change in listing.

1шт.

6a

S82381

YOKE

- (Used on GMC 4-71 engine)

1шт.

7

4610

TOY

PIN, cotter - 3/32" x 1/2" long - (Used on GMC 4-53, and on Perkins 6-354 diesel engines)

1шт.

Change in listing.

1шт.

8

S10714

CLEVIS PIN

PIN, clevis - 1/4" x .648" grip length - (Used on GMC 4-53, and on Perkins 6-354 diesel engines)

1шт.

Change in listing.

1шт.

9

4241

SET

NUT, jam - 1/4" NF - (Quantity of 1 used on GMC 4-53, GMC 4-71 and on Perkins 6-354 diesel engines and quantity of 3 used on Cummins 6V-352 diesel engine and quantity of 4 used on AC 2900 diesel engine)

1шт.

10

7490

CPSW - #10 x 3/8" NC - (Used on GMC 4-53 diesel engine)

1шт.

11

75863

STD EXHAUST VALVE

CLAMP, choke and shut off - (Used on GMC 4-53 diesel engine)

1шт.

12

208816

BRACKET, throttle cable mounting - (Used on GMC 4-53 diesel engine)

1шт.

13

2101

CPSW - 1/2" x 1-1/4" NC gr. 5 - (Used on GMC 4-53 diesel engine)

2шт.

4399

WASHER

LOCKWASHER - 1/2" - (Used on GMC 4-53 diesel engine)

2шт.

14

17167

LOCK NUT

NUT, self locking - 3/8" NC - (Used on GMC 4-71 diesel engine)

2шт.

15

76692

CLAMP, choke and shut off - (Used on GMC 4-71 diesel engine)

2шт.

16

211614

BRACKET, throttle cable mounting - (Used on GMC 4-71 diesel engine)

1шт.

17

4620

BEARING CUP

PIN, cotter - 1/8" x 3/4" long - (Used on Cummins 6V-352 diesel engine & GMC 4-71 engine)

1шт.

18

10736

PIN, clevis - 5/16" x .734" girp length - (Used on Cummins 6V-352 diesel engine & GMC 4-71 engine)

1шт.

19

212025M1

BRACKET, throttle cable mounting - (Used on Cummins 6V-352 diesel engine)

1шт.

20

2047

PIN

CPSW - 3/8" x 2-1/2" NF gr. 5 - (Used on Cummins 6V-352 diesel engine)

1шт.

7385

WASHER, flat - 3/8" - (Used on Cummins 6V-352 diesel engine)

1шт.

21

4201

DRILL

NUT - 3/8" NC - (Used on Cummins 6V-352 diesel engine)

2шт.

7377

WASHER, flat - 1/4" - (Used on Cummins 6V-352 diesel engine)

2шт.

22

70046

KEY

BALLJOINT - (Used on Cummins 6V-352 diesel engine)

2шт.

23

4203

NUT

- 3/8" NF - (Used on Cummins 6V-352 diesel engine)

1шт.

24

71419

SPACER - (Used on Cummins 6V-352 diesel engine)

1шт.

25

83209

BELLCRANK - (Used on Cummins 6V-352 diesel engine)

1шт.

26

82381

YOKE - (Used on Cummins 6V-352 diesel engine)

1шт.

Change in listing.

1шт.

27

48946

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 8

STOP, throttle control, - (Used on Perkins 6-354 diesel engine)

2шт.

28

2349

CPSW - 1/4" x 1/2" NC gr. 5 - (Used on Perkins 6-354 diesel engine)

1шт.

4395

WASHER

LOCKWASHER - 1/4" - (Used on Perkins 6-354 diesel engine)

1шт.

29

75865

SPARE PART

CLAMP, throttle control - (Used on Perkins 6-354 diesel engine)

1шт.

77479

CLAMP - choke and shut off - (Used on Perkins 6-354 diesel engine)

1шт.

30

4220

TOOL

NUT - 1/4" NC - (Used on Perkins 6-354 diesel engine)

1шт.

31

211061

LEVER, throttle control - (Used on Perkins 6-354 diesel engine)

1шт.

32

49320

CLAMP, choke and shut off - (Used on AC 2900 diesel engine)

1шт.

33

4220

TOOL

NUT - 1/4" NC - (Used on AC 2900 diesel engine)

2шт.

4395

WASHER

LOCKWASHER, 1/4" - (Used on AC 2900 diesel engine)

2шт.

34

83336

BUSHING

BRACKET, throttle control - (Used on AC 2900 diesel engine)

1шт.

35

211815

BRACKET, throttle control - (Used on AC 2900 diesel engine)

1шт.

36

83031

SPACER - (Used on AC 2900 diesel engine)

1шт.

37

7387

LOCTITE

WASHER, flat - 13/32" (Used on AC 2900 diesel engine)

1шт.

38

71132

BALLJOINT - (Used on AC 2900 diesel engine)

2шт.

39

211817

GEAR

ROD - (Used on AC 2900 diesel engine)

1шт.

40

83267

LEVER, throttle control - (Used with AC 2900 diesel engine)

1шт.

41

2351

LAMP

CPSW - 1/4" x 1" NC gr. 5 - (Used on AC 2900 diesel engine)

2шт.

42

83208

ROD - (Used with Cummins 6V-352 diesel engine)

1шт.
