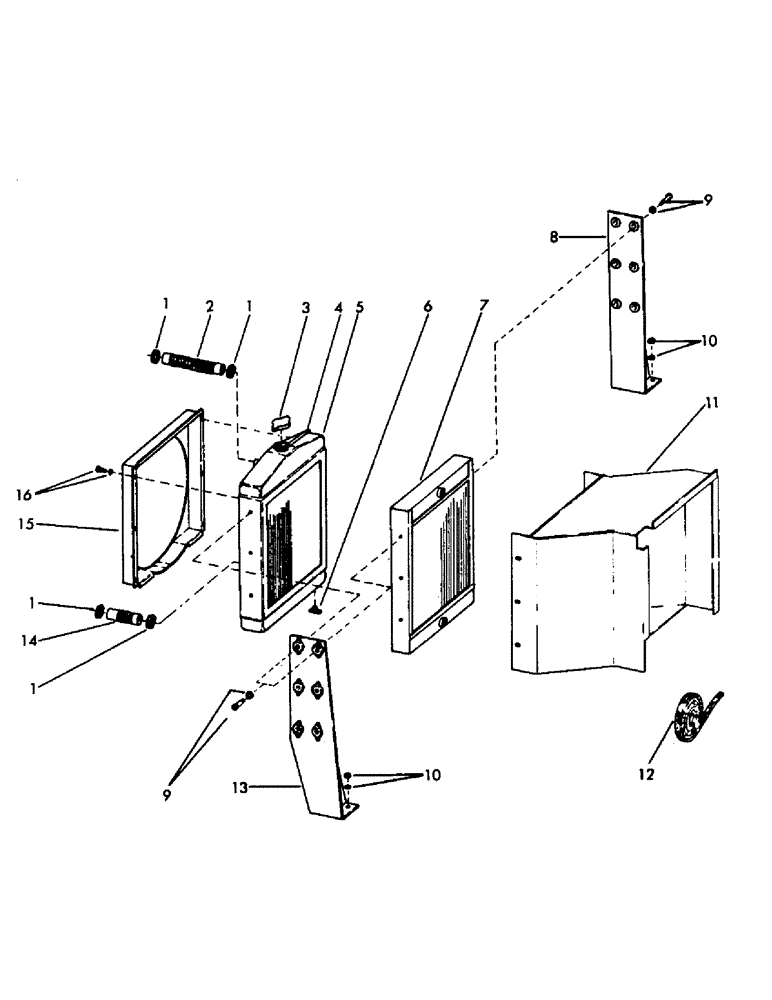

Запчасти Case 40EC (C16) - RADIATOR, OIL COOLER, AND MOUNTING PART FOR:, GMC 4-53 (01) - ENGINE

1

S10878

HOSE CLAMP

CLAMP, hose - (Quantity of 2 used with Cummins 6V-352 diesel engine and quantity of 4 used with GMC 4-53, Perkins 6-354 and AC 2900 diesel engines)

1шт.

S10879

HOSE CLAMP

CLAMP, hose - (Used with Cummins 6V-352 diesel engine)

2шт.

2

S63572

HOSE

radiator - upper - (Used with GMC 4-53 and Perkins 6-354 diesel engine)

1шт.

S75075

HOSE, radiator - upper - (Used with Cummins 6V-352 and AC 2900 diesel engines)

1шт.

3

S89404

CAP

radiator - 7 lbs pressure

1шт.

Change in listing.

1шт.

4

S78385

TUBE, radiator overflow 25 mm OD x 1900 mm L

1шт.

5

S54584

RADIATOR

- (Used with GMC 4-53 and Perkins 6-354 diesel engines)

1шт.

S58724

RADIATOR - (Used with Cummins 6V-352 diesel engine)

1шт.

S58566

RADIATOR - (Used with AC 2900 diesel engine)

1шт.

6

49610

DRAIN, radiator

1шт.

7

36359M1

COOLER, oil - (Used on units with serial number 1 thru 1003)

1шт.

Change in listing.

1шт.

58565

COOLER, oil - (Used on units with serial number 1004 - up)

1шт.

Added listing.

1шт.

8

38945

SPARE PART

BRACKET, radiator - left hand - (Used with GMC 4-53, Perkins 6-354 and Cummins 6V-352 diesel engines)

1шт.

NLS

NO LONGER SERVICED

BRACKET, radiator - left hand - (Used with AC 2900 diesel engine)

1шт.

9

76819

BOLT, shoulder - 5/16" x 1-5/8" NC

12шт.

7344

LOCKWASHER, internal tooth - 3/8"

12шт.

7380

WASHER, flat - 9/32" (Between bracket and radiator and oil cooler)

12шт.

10

4222

NUT - 3/8" NC

8шт.

4397

LOCKWASHER - 3/8"

8шт.

11

56873M1

DUCT, air

1шт.

12

76711

YOKE,33.875" Length

SEAL - (Bulk)

1шт.

13

38946M1

BRACKET, radiator - right hand - (Used with GMC 4-53, Perkins 6-354 and Cummins 6V-352 diesel engines)

1шт.

501921

HALF-BEARING, CRANKS

BRACKET, radiator - right hand - (Used with AC 2900 diesel engine)

1шт.

14

67615

HOSE, radiator - lower - (Used with GMC 4-53 diesel engine)

1шт.

75075

HOSE, radiator - lower - (Used with Perkins 6-354 diesel engine)

1шт.

78248

LAMP BASE

HOSE, radiator - lower - (Used with Cummins 6V-352 diesel engine)

1шт.

63624

BRACKET

HOSE, radiator - lower - (Used with AC 2900 diesel engine)

1шт.

15

36411

SPARE PART

SHROUD, radiator - (Used with GMC 4-53 diesel engine)

1шт.

36793

CONTAINER

SHROUD, radiator - (Used with Perkins 6-354 diesel engine)

1шт.

528748

SHROUD, radiator - (Used with Cummins 6V-352 diesel engine)

1шт.

502347

SHROUD, radiator - (Used with AC 2900 diesel engine)

1шт.

16

14458

ELEC. TERMINAL PIN,8 - 10

SCREW, machine - 1/4" x 5/16" NC

6шт.

7342

WASHER, flat - 1/4"

6шт.
