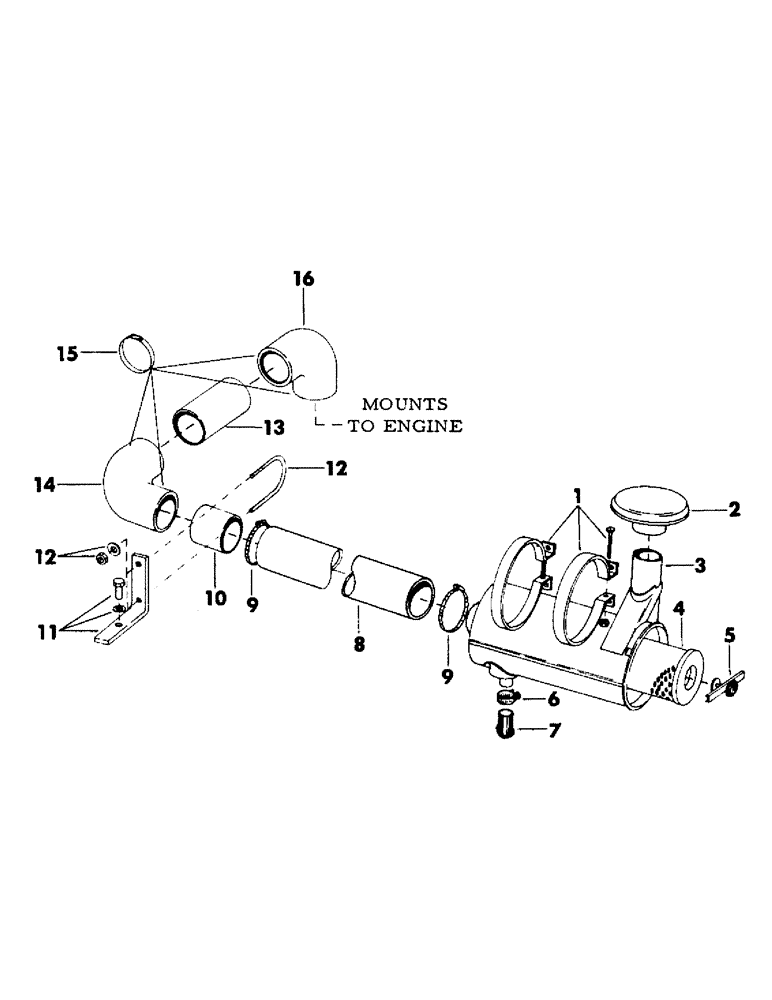

Запчасти Case 40EC (C12A) - AIR CLEANER AND ATTACHING PARTS, (USED ON UNITS WITH CASE (01) - ENGINE

S39158

CLEANER

AIR CLEANER - complete (Consists of items 3 thru 7)

1шт.

1

S209006

RING, slip

2шт.

S2401

BOLT

CPSW - 3/8" NC x 1" gr. 5

4шт.

S7385

INSTRUCTION

WASHER, flat - 3/8"

4шт.

S4397

WASHER

lock - 3/8"

4шт.

S4222

NUT

- 3/8" NC

4шт.

2

S39157

TUBE

CAP, weather

1шт.

3

NSS

NOT SOLD SEPARAT

BODY, air cleaner

1шт.

4

S76237

FILTER

ELEMENT, filter

1шт.

5

S76236

SEGMENT

BAR, retainer

1шт.

6

S76238

CLAMP, dust bag

1шт.

7

S76239

FILTER BOWL

BAG, dust

1шт.

8

S66853

HOSE

air cleaner - (Bulk) - 1 piece - 3" ID x 42" long

1шт.

9

S83024

CLAMP

hose

2шт.

10

S83330

TUBE

1шт.

11

S87800

ANGLE

1шт.

S2401

BOLT

CPSW - 3/8" NC x 1" gr. 5

1шт.

S4397

WASHER

lock - 3/8"

1шт.

12

S65056

CLAMP

pipe

1шт.

13

S87802

TUBE,3" OD x 6.5" L

1шт.

14

S87799

ROD, CONNECTING

DUCT

1шт.

15

S83025

CLAMP

hose

4шт.

16

S82466

ADAPTER

ELBOW, 90 degrees rubber

1шт.
