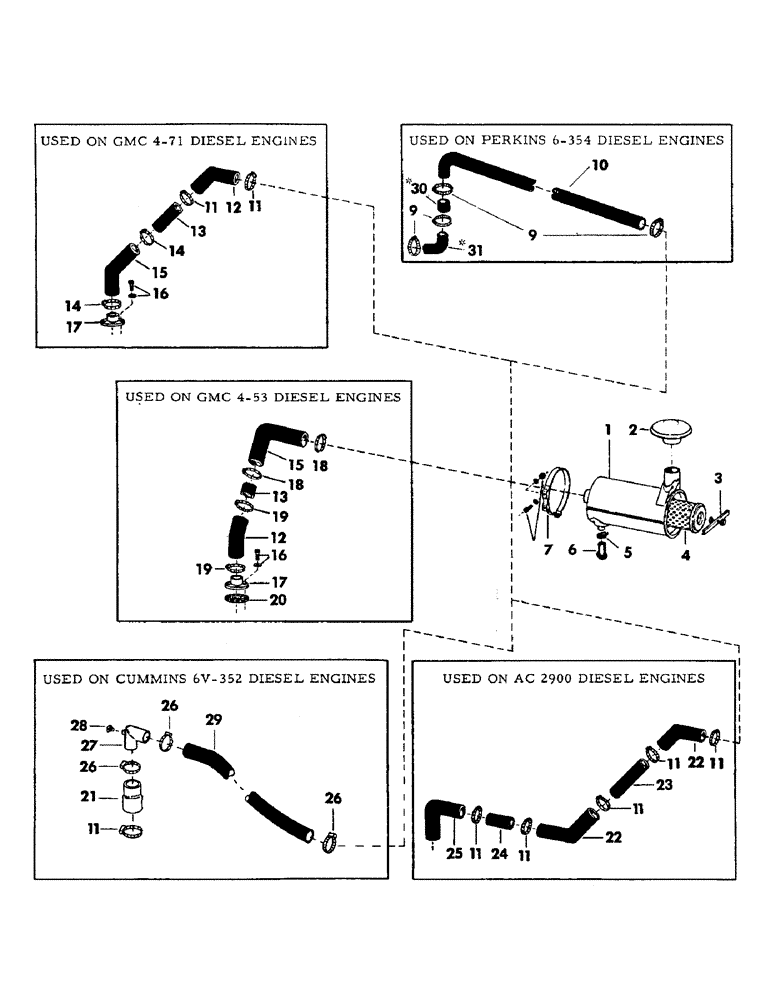

Запчасти Case 40EC (C10) - AIR CLEANER AND MOUNTING HARDWARE (01) - ENGINE

1

S39158

CLEANER

AIR CLEANER - complete - (Consists of items 3 thru 6) - used with Cummins 6V-352 diesel engine, AC 2900 diesel engine and GMC 4-53 diesel engine units with serial number 1 thru 752

1шт.

S501779

AIR CLEANER - complete - (Consists of items 3 thru 6) - used on GMC 4-53 diesel engine units with serial number 753-up

1шт.

S33667

AIR CLEANER - complete - (Consists of items 3 thru 6) - used with Perkins 6-354 diesel engine

1шт.

S36686

AIR CLEANER - complete - (Consists of items 3 thru 6) - used with GMC 4-71 diesel engine

1шт.

2

S39157

TUBE

CAP, weather - (Used with Cummins 6V-352 diesel engine, AC 2900 diesel engine and GMC 4-53 diesel engine)

1шт.

S33666

CAP, weather - (Used with Perkins 6-254 diesel engine)

1шт.

S36687

CAP, weather - (Used with GMC 4-71 diesel engine)

1шт.

3

S76236

SEGMENT

RETAINER BAR - (Used with Cummins 6V-352 diesel engine, AC 2900 diesel engine and GMC 4-53 diesel engine)

1шт.

S71350

RETAINER BAR - (Used with Perkins 6-354 diesel engine)

1шт.

S75329

BAR

RETAINER BAR - (Used with GMC 4-71 diesel engine)

1шт.

4

S76237

FILTER

ELEMENT, filter (Used with Cummins 6V-352 diesel engine, AC2900 diesel engine and GMC 4-53 diesel engine)

1шт.

S71405

FILTER, ELEMENT

ELEMENT, filter - (Used with Perkins 6-354 diesel engine)

1шт.

S75328

AIR CLEANER

ELEMENT, filter - (Used with GMC 4-71 diesel engine)

1шт.

5

S76238

CLAMP, dust bag - (Used with Cummins 6V-352 diesel engine, AC 2900 diesel engine and GMC 4-53 diesel engine)

1шт.

S63740

CLAMP, dust bag - (Used with Perkins 6-354 diesel engine and GMC 4-71 diesel engine)

1шт.

6

S76239

FILTER BOWL

BAG, dust - (Used with Cummins 6V-352 diesel engine, AC 2900 diesel engine and GMC 4-53 diesel engine)

1шт.

S63739

BAG-TOOL

BAG, dust - (Used with GMC 4-71 diesel engine and Perkins 6-354 diesel engine)

1шт.

7

S209006

RING, slip - (Used with GMC 4-53, Cummins 6V-352 and AC 2900 diesel engines)

2шт.

S72129

RING, slip - (Used with GMC 4-71 diesel engine)

1шт.

S64722

RING, slip (used with Perkins 6-354 diesel engine)

1шт.

8

S2401

BOLT

CPSW - 3/8" x 1" NC gr. 5 - (Used with GMC 4-53, Perkins 6-354, Cummins 6V-352 and AC 2900 diesel engines)

4шт.

S2402

BOLT

CPSW - 3/8" x 1-1/4" NC gr. 5 - (Used with GMC 4-71 diesel engine)

4шт.

S7385

INSTRUCTION

WASHER, flat - 3/8"

4шт.

S4397

WASHER

LOCKWASHER - 3/8"

4шт.

S4222

NUT

- 3/8" NC

4шт.

9

S83024

CLAMP

hose - (Fits hoses 2-1/2" ID x 3-1/2" ID) - (Used with Perkins 6-354)

4шт.

Change in listing.

1шт.

10

S66853

HOSE

air cleaner - (Bulk) - 3" ID x 51" long - (Used with Perkins 6-354)

1шт.

Change in listing.

1шт.

11

S85677

CLAMP

hose - (Fits hoses 4-1/4") (Quantity of 1 used with Cummins 6V-352 diesel engine, quantity of 2 used with GMC 4-71 diesel engine and quantity of 5 used with AC 2900 diesel engine)

1шт.

Change in listing.

1шт.

12

S73162

HOSE, air cleaner (Bulk) - 45 degrees - 4" ID x 25" long - (Used with GMC 4-71 diesel engine)

1шт.

S73162

HOSE, air cleaner (Bulk) - 45 degrees - 4" ID x 2-" long - (Used with GMC 4-53 diesel engine)

1шт.

13

S80630

TUBE ASSY.,4" OD x 5" L

TUBING, hose adapter - (Used with GMC 4-71, GMC 4-53 and AC 2900 diesel engines)

3шт.

14

S83027

CLAMP

hose - (Fits hoses 4" ID) - (Used with GMC 4-71 diesel engine)

2шт.

15

S80631

90 ELBOW,58.0 mm ID mm ID

ELBOW, 4.00" ID x 5.80", 90-Degree, Rubber, Air Cleaner; Used With GMC 4-71 and GMC 4-53 Diesel Engines

1шт.

16

S2376

CPSW - 5/16" x 1" NC gr. 5

4шт.

S4396

WASHER, LOCK

LOCKWASHER - 5/16"

4шт.

17

S206577

PIPE

ADAPTER, air inlet flange - (Used with GMC 4-71 and GMC 4-53 diesel engines)

1шт.

18

S10883

HOSE CLAMP

CLAMP, hose (Fits hoses 4" ID) - (Used with GMC 4-53 diesel engines)

2шт.

19

S10882

CLAMP

- (Fits hoses 4" ID) - (Used with GMC 4-53 diesel engines)

2шт.

20

S69424

GASKET, adapter - (Used with GMC 4-53 diesel engine)

1шт.

21

S83126

ADAPTER

air inlet flange - (Used with Cummins 6V-352 diesel engine)

1шт.

22

S83324

HOSE, air cleaner - 45 degrees - 4" ID - (Used with AC 2900 diesel engine)

2шт.

23

S83332

TUBING, hose adapter - (Used with AC 2900 diesel engine)

1шт.

24

S83058

TUBING, hose adapter - (Used with AC 2900 diesel engine)

1шт.

25

S82466

ADAPTER

HOSE, air cleaner - 90 degrees - 4" ID - (Used with AC 2900 diesel engine)

1шт.

26

S83025

CLAMP

hose - (Fits hoses 3-1/2" ID) (Used with Cummins 6V-352 diesel engines)

3шт.

27

S212166

TUBE - (Used with Cummins 6V-352 diesel engines) 3.5" L

1шт.

28

S15162

PLUG

pipe - 1/4" NPT

1шт.

29

S66853

HOSE

air cleaner - (Bulk) 3" ID x 42" long - (Used with Cummins 6V-352 diesel engine)

1шт.

30

S83330

TUBE

TUBING, hose adapter - (Used with Perkins 6-354 diesel engine)

1шт.

Added listing.

1шт.

31

S82466

ADAPTER

ELBOW, rubber

1шт.

Added listing.

1шт.
