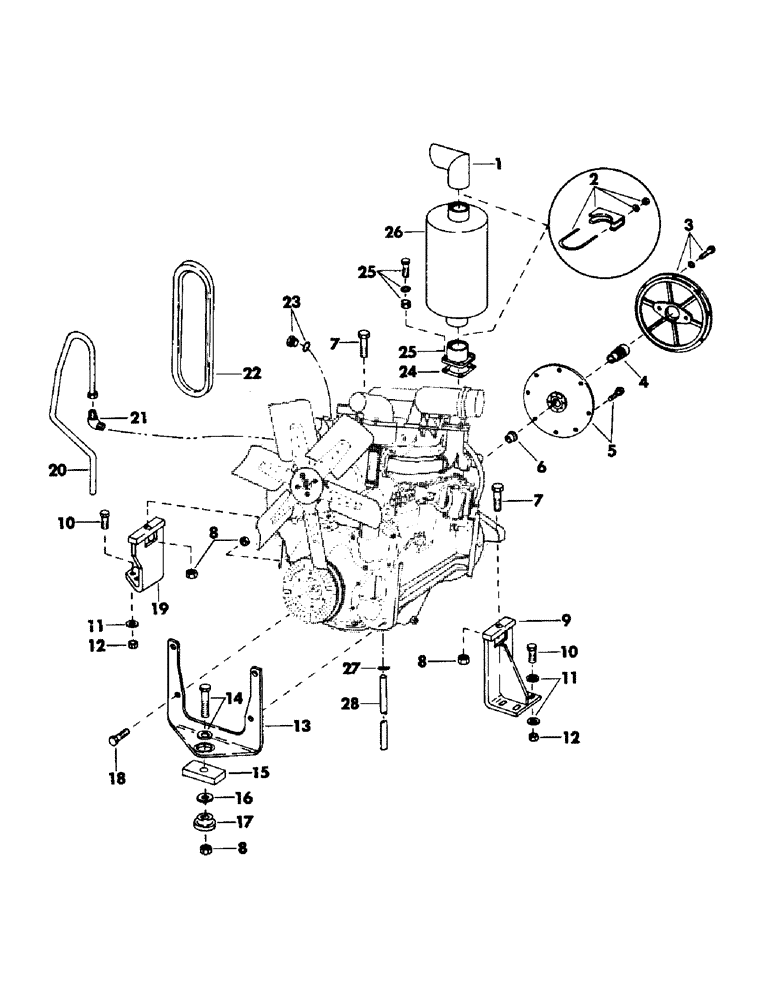

Запчасти Case 40EC (C09) - CASE 504 BD DIESEL ENGINE (DROTT S-58916) AND ATTACHING (01) - ENGINE

1

S207867

PIPE, exhaust

1шт.

2

S65056

CLAMP

muffler - (Furnished with hardware)

2шт.

3

S52615

MOUNTING PARTS

MOUNTING, pump

1шт.

S2401

BOLT

CPSW - 3/8" NC x 1" grade 5

12шт.

S4397

WASHER

flat - 3/8"

12шт.

4

S63201

COUPLING

-, Serial Range: (Damper-pump)

1шт.

5

S33201M1

DAMPER

DAMPENER -, Serial Range: (Mounts-engine)

1шт.

Change in listing.

1шт.

S63218

BOLT

CPSW - 3/8" NC x 5/8" gr. 5

8шт.

6

S87483

ADAPTER

1шт.

7

S2550

BOLT (MACHINE)

CPSW - 3/4" NC x 3-1/4" grade 5 (Mounts rear engine mounting, Serial Range: brackets-engine)

2шт.

8

S17089

NUT

self locking - 3/4" NC

7шт.

9

S215750

BRACKET, rear engine mounting - (Left hand)

1шт.

10

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" grade 5

1шт.

11

S7392

WASHER

flat - 1/2"

11шт.

12

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

7шт.

13

S215749

BRACKET, front engine mounting

1шт.

14

S2556

CPSW - 3/4" NC x 4-3/4" grade 5 (Mounts, Serial Range: bracket-frame)

1шт.

S7407

WASHER

flat - 3/4"

1шт.

15

S87777

BAR - (Used as spacer)

1шт.

16

S82255

WASHER

flat - 13/16"

1шт.

17

S102996

GROMMET

MOUNT, rubber

1шт.

18

S2549

BOLT

CPSW - 3/4" NC x 3" grade 5

4шт.

19

S215757

BRACKET, rear engine mounting - (Right hand)

1шт.

20

S214098

LINE, water (To heat exchanger) 1" OD

1шт.

21

S63420

ELBOW

90 degrees - (1" tube) - 1-5/16" - 12 male x 3/4" NPT male - 37 degrees flared - (Into water pump)

1шт.

22

S86287

SET OF BELTS,0.69" W x 62.00" L

V- Belt, Drive and alternator (Matched set of 2) 0.69" W x 62.00" L

1шт.

23

S8981

PLUG

pipe - 3/4" - 16 male - (Furnished with "O" ring) - (Into hole in engine block provided for tachometer)

1шт.

24

S87740

GASKET

1шт.

25

S215627

FLANGE, muffler mounting

1шт.

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" grade 5

4шт.

S4399

WASHER

lock - 1/2"

4шт.

280431

NUT,1/2"-13, G5

4шт.

26

S502058

MUFFLER

1шт.

27

S10873

CLAMP

hose

1шт.

28

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 1 piece - 28" long (Connects to breather tube on engine) 1.00" ID Bulk, SAE 100R3

1шт.
