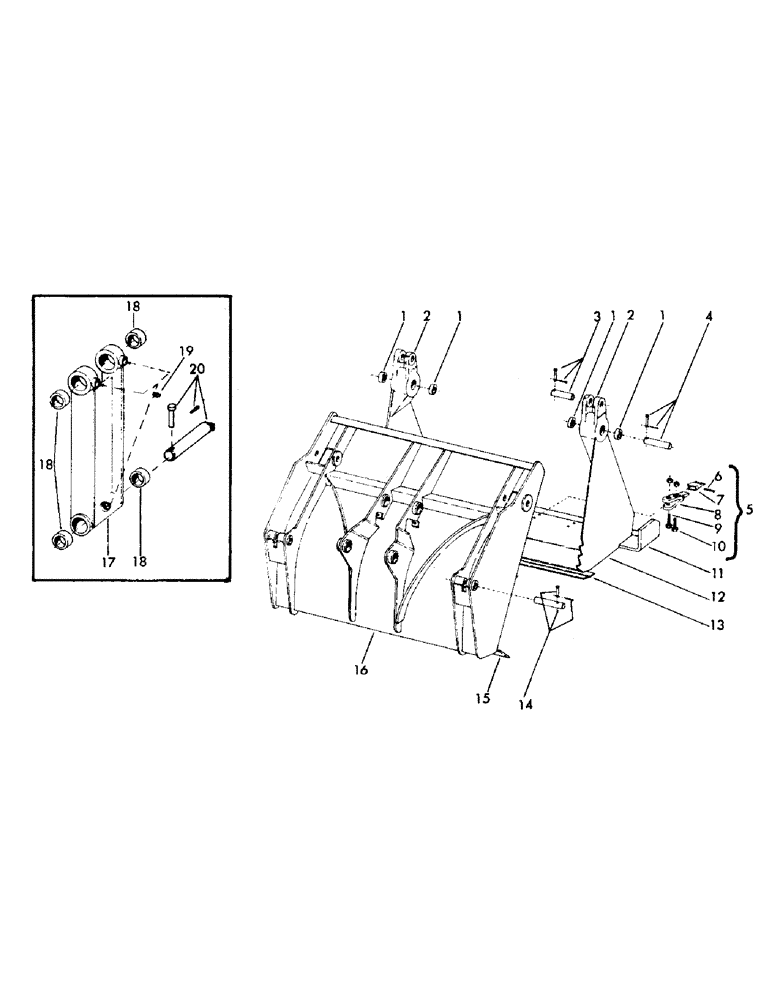

Запчасти Case 40EC (F05) - 4-IN-1 BUCKET, (1-1/4 CUBIC YARD), 55557 - 4-IN-1 COMPLETE - (19) - BUCKETS

1

23904

SWITCH

BUSHING

4шт.

2

S211155

HINGE, clam (Welded part)

2шт.

Change in listing.

1шт.

3

204122

RING

PIN, Serial Range: clam-cylinder

2шт.

10784

CONNECTOR, ELEC

PIN, clevis - 3/8" x 3-1/64" grip length

2шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

2шт.

4

204178

BRAKE CALIPER

PIN, Serial Range: clam-blade

2шт.

10786

TAB SPRING

PIN, clevis - 3/8" x 3-33/64" grip length

2шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

2шт.

5

23948M1

TOOTH GROUP - complete (Consists of Refs. 6 thru 10)

6шт.

6

7894

SPARE PART

PIN, roll - 33/64" x 2-1/2" long

6шт.

7

25286

POINT

TIP, replaceable

6шт.

8

22929M1

SHANK, tooth

6шт.

9

NLS

NO LONGER SERVICED

CPSW - 5/8" x 3-1/4" NC grade 6

6шт.

4226

- 5/8" NC

6шт.

10

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

CPSW - 5/8" x 3" NC grade 6

6шт.

4226

- 5/8" NC

6шт.

11

207267

EDGE, cutting - bucket

1шт.

12

55560

CLAM - (Includes Refs. 1, 2 and 11)

1шт.

13

74819

EDGE, cutting - clam

1шт.

14

67267

PIN, cylinder base

2шт.

87016624

CLEVIS PIN,3/8" x 1 1/4"

- 3/8" x 1 1/4"

2шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

2шт.

15

75835

HOUSING

EDGE, cutting - mold board

1шт.

16

55439

BLADE - (Includes Ref. 15)

1шт.

17

205652

LINK, loader (19")

1шт.

18

202134

HYDRAULIC CYLINDER

BUSHING

4шт.

19

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT x 30 degrees

3шт.

Change in listing.

1шт.

20

205653M1

PIN

1шт.

61972

PIN, clevis - 1/2" x 3.266" grip length

1шт.

4641

PIN

cotter - 5/32" x 1" long

1шт.
