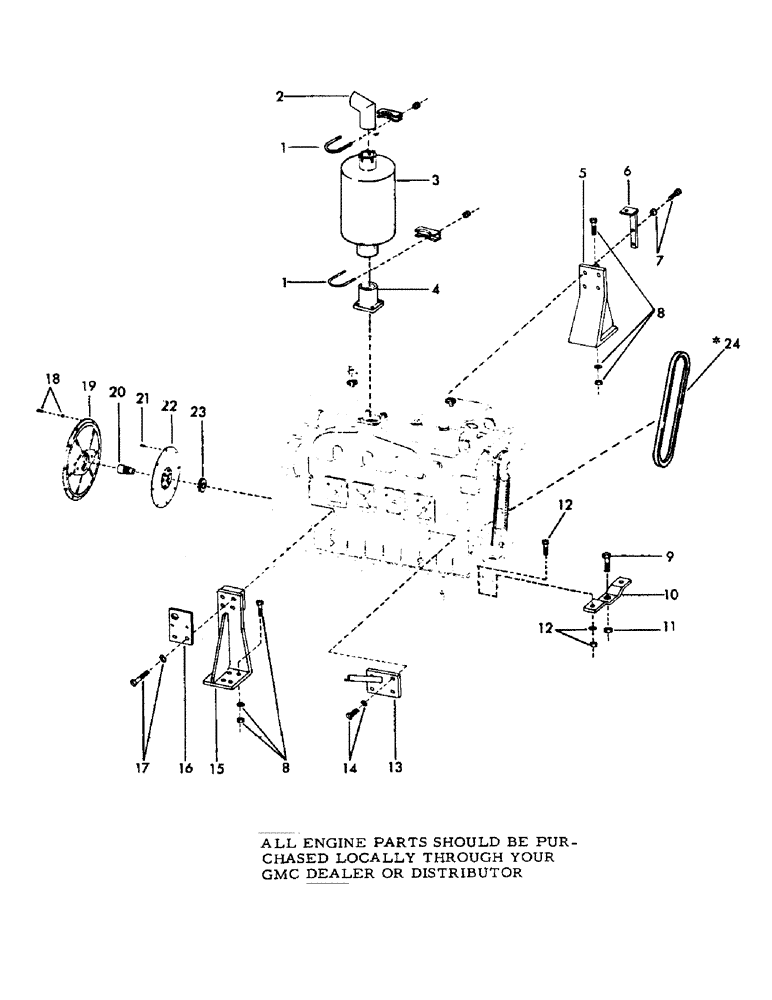

Запчасти Case 40EC (C02) - GMC 4-71 DIESEL ENGINE (DROTT # S57273M1) AND ATTACHING (01) - ENGINE

1

S65056

CLAMP

2шт.

2

S207867

PIPE, exhaust

1шт.

3

S502058

MUFFLER

1шт.

4

S211619

ADAPTER, muffler

1шт.

5

S502326

BRACKET, rear engine mounting, left hand

1шт.

6

S211652

BRACKET

1шт.

7

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" grade 5

4шт.

S4399

WASHER

lock - 1/2"

4шт.

8

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" grade 5

8шт.

S4399

WASHER

lock - 1/2"

8шт.

280431

NUT,1/2"-13, G5

8шт.

9

S2547

CPSW - 3/4" NC x 2-1/2" grade 5

1шт.

10

S211612

SUPPORT - front engine

1шт.

11

231-14012

LOCK NUT,3/4"-10, GB

NUT, self locking - 3/4" NC

1шт.

12

S2506

BOLT (MACHINE)

CPSW - 5/8" NC x 2-1/2" grade 5

2шт.

S7401

WASHER, flat - 5/8"

2шт.

S17171

NUT

self locking - 5/8" NC

2шт.

13

S211651

BRACKET

1шт.

14

S2401

BOLT

CPSW - 3/8" NC x 1" grade 5

4шт.

S4397

WASHER

lock - 3/8"

4шт.

15

S502301

BRACKET, rear engine mounting, right hand

1шт.

16

S82254

SUPPORT, voltage regulatror and hourmeter

1шт.

17

S2472

BOLT

CPSW - 1/2" NC x 2-3/4" grade 5

4шт.

S4399

WASHER

lock - 1/2"

4шт.

18

S2401

BOLT

CPSW - 3/8" NC x 1" grade 5

11шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" grade 5

1шт.

S4397

WASHER

lock - 3/8"

12шт.

19

S52615

MOUNTING PARTS

ADAPTION, pump drive

1шт.

20

S63201

COUPLING

pump drive

1шт.

21

S63218

BOLT

CPSW - 3/8" NC x 5/8" grade 5

8шт.

22

S33200

DAMPER

DAMPENER, pump drive

1шт.

23

S82793

BUSHING

ADAPTER

1шт.

24

S82985

V-BELT,36.70" L

BELT , Alternator 36.70" L

1шт.

Change in listing.

1шт.
