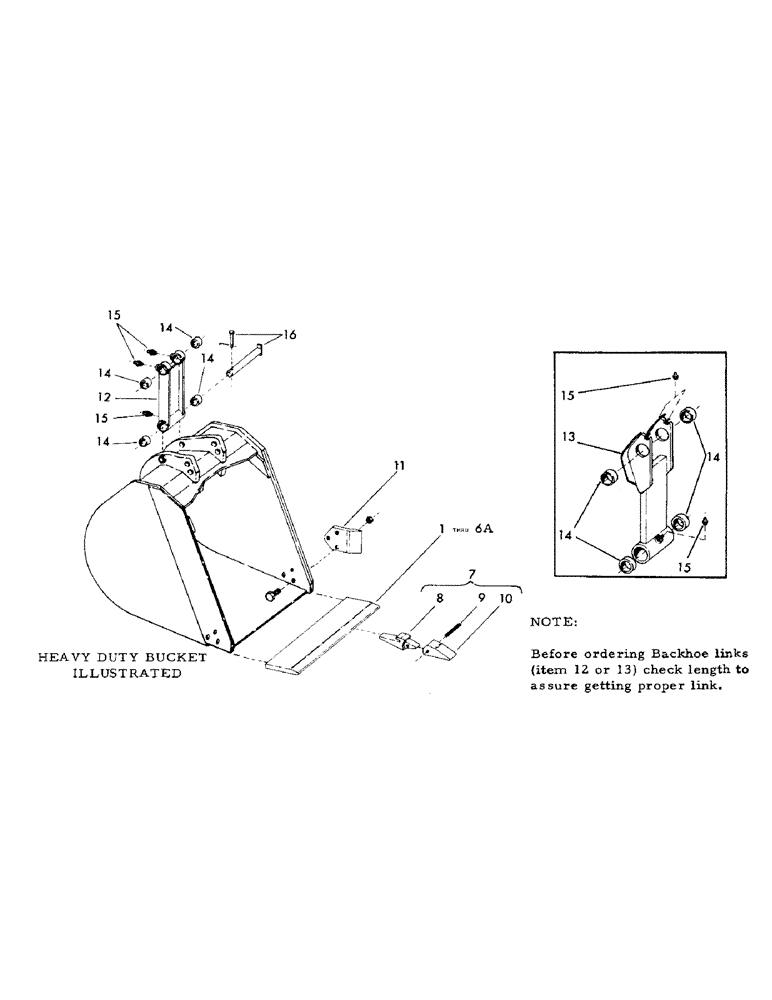

Запчасти Case 40EC (F01A) - BACKHOE BUCKETS (CONTD), SEVERE DUTY, HEAVY DUTY, AND HEAVY (19) - BUCKETS

1

S212357

EDGE - cutting, for 22" backhoe 1" x 8"

1шт.

2

S212358

EDGE, cutting - for 26" backhoe 1" x 8"

1шт.

3

S212359

EDGE, cutting - for 30" backhoe 1" x 8"

1шт.

4

S212867

EDGE, cutting - for 30" backhoe 1-1/4" x 8"

1шт.

5

S207707

EDGE, cutting - for 36" backhoe 1-1/2" x 8"

1шт.

6

S207708

EDGE, cutting - for 42" backhoe 1-1/2" x 8"

1шт.

6a

S207709

EDGE, cutting - for 48" backhoe 1-1/2" x 8"

1шт.

7

S503108

TOOTH

- (Includes Refs. 8 thru 10)

1шт.

Change in listing.

1шт.

8

S59402

SHANK

tooth

1шт.

Change in listing.

1шт.

9

S7894

PIN

roll - 33/64" x 2-1/2" long

1шт.

10

S503093

POINT

TIP, replaceabe

1шт.

11

S33993

CUTTER

side

2шт.

S2548

BOLT (MACHINE)

CPSW - 3/4" x 2-3/4" NC grade 5

6шт.

S4227

NUT

- 3/4" NC

6шт.

12

S205652

LINK

backhoe - 19" - includes Ref. 14

1шт.

13

S208062M1

LINK, backhoe - 17-1/4" - includes Ref. 14

1шт.

14

S202134

BUSHING

4шт.

15

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NP, Straight

3шт.

16

S205653M1

PIN

1шт.

S61974

PIN

clevis - 1/2" x 4.266" grip length

1шт.

S4641

PIN, SPLIT (COTTER)

PIN, cotter - 5/32" x 1" long

1шт.
