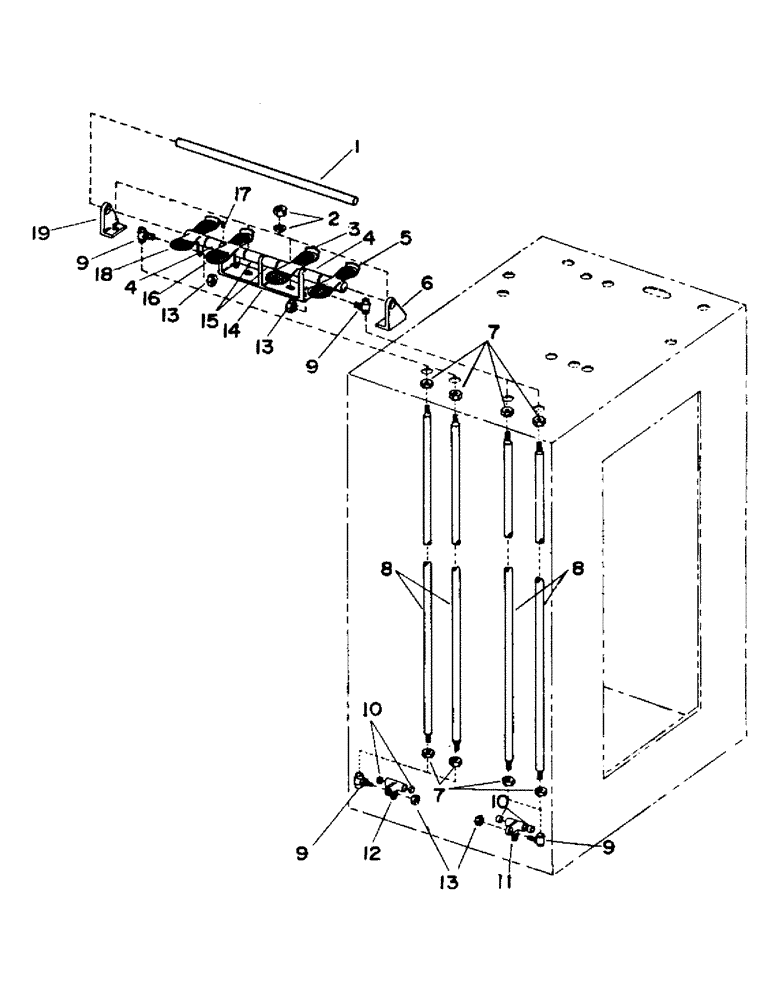

Запчасти Case 40EC (J25) - OPTIONAL HIGH CAB, (SWING, TOOL AND CRAWLER CONTROLS) (18) - ATTACHMENT ACCESSORIES

1

S63144

SHAFT

1шт.

2

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

6шт.

S7389

WASHER

flat - 3/8"

6шт.

3

S56483

PEDAL, swing, - (Includes grease fitting)

1шт.

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

2шт.

S47973

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

4

S63283

SPACER

2шт.

5

S56485

PEDAL, crawler - (Includes grease fitting)

1шт.

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

2шт.

S47973

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

6

S201568

BRACKET, mounting

1шт.

7

425-158

JAM NUT,Jam, 1/2"-20, G5

8шт.

8

S208485

ROD, connecting

4шт.

9

S26213

BALL

JOINT, ball

8шт.

10

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

8шт.

11

S210046

BELLCRANK, pedal - (Includes grease fitting)

2шт.

S49793

FITTING

grease - 1/4" NPT x 65 degrees

1шт.

12

S210047

BELLCRANK, pedal - (Includes grease fitting)

2шт.

S49793

FITTING

grease - 1/4" NPT x 65 degrees

1шт.

13

231-2448

LOCK NUT,1/2"-20, GB

NUT, self locking - 1/2" NF

8шт.

14

S205433

BRACKET, mounting

1шт.

15

S67750

SPACER

2шт.

16

S56484

PEDAL, tool - (Includes grease fitting)

1шт.

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

2шт.

S47973

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

17

S14045

SET SCREW

SCREW, set - 5/16" x 5/16" NC

3шт.

18

S56486

PEDAL, crawler - (Includes grease fitting)

1шт.

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

2шт.

S47973

FITTING, 1/4" NPT x 65 degrees

1шт.

19

S201567

BRACKET, mounting

1шт.
