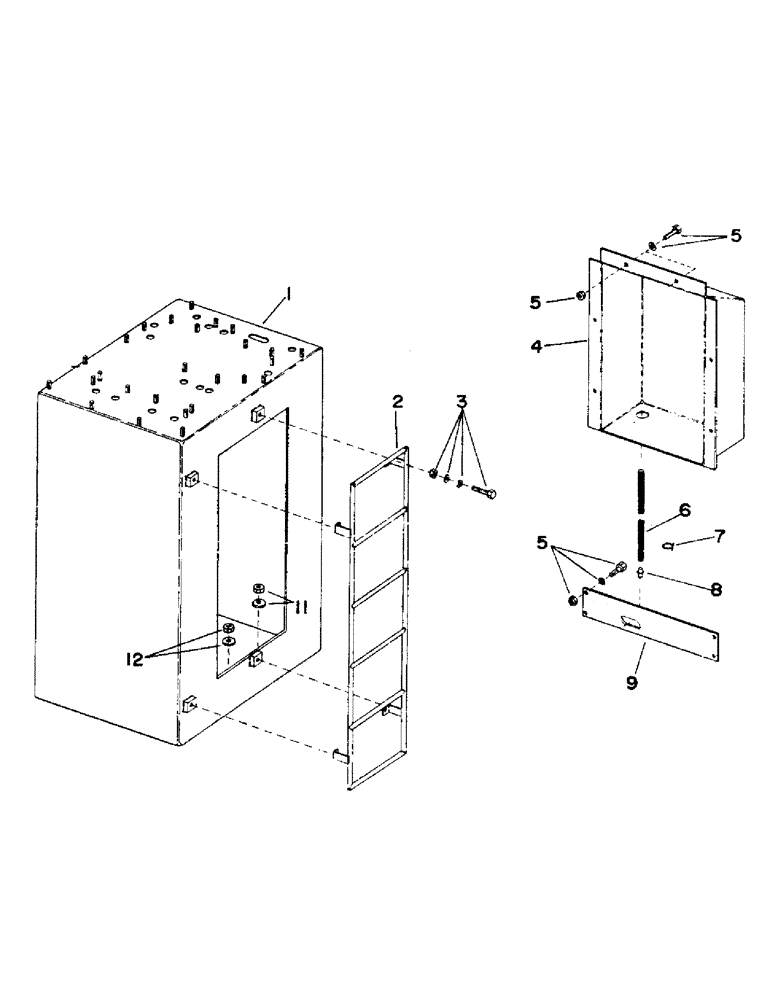

Запчасти Case 40EC (J22) - OPTIONAL HIGH CAB (RISER ASSEMBLY, HEATER SHROUD AND COVER (18) - ATTACHMENT ACCESSORIES

1

S57859

RISER

1шт.

2

S38687

LADDER

1шт.

3

S2466

BOLT

CPSW - 1/2" x 1-1/4" NC

4шт.

S4399

WASHER

LOCKWASHER - 1/2"

4шт.

S7395

WASHER

flat - 1/2"

4шт.

280431

NUT,1/2"-13, G5

4шт.

4

S213962

SHROUD, heater

1шт.

5

S2375

BOLT

CPSW - 5/16 x 3/4" NC

10шт.

S7381

WASHER

flat - 5/16"

10шт.

S3125

NUT, self locking - 5/16" NC

10шт.

6

S74723

HOSE

heater (Bulk) - 5/8" ID x 60" long

2шт.

7

S10872

HOSE CLAMP

CLAMP, hose

4шт.

8

S73010

CONNECTOR

2шт.

9

S214008

COVER, rear cab

1шт.

10

S17086

NUT

self locking - 1/2" NC

8шт.

S86132

WASHER

flat - 17/32"

8шт.

11

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

S7389

WASHER

flat - 3/8"

2шт.

12

S952014

PRING, installation (Not illustrated)

1шт.

13

S80501

REINFORCING - riser to boom frame (Not illustrated)

1шт.

S2466

BOLT

CPSW - 1/2" x 1-1/4" NC

4шт.

S36132

WASHER, flat - 17/32"

8шт.

S17086

NUT

self locking - 1/2" NC

4шт.
