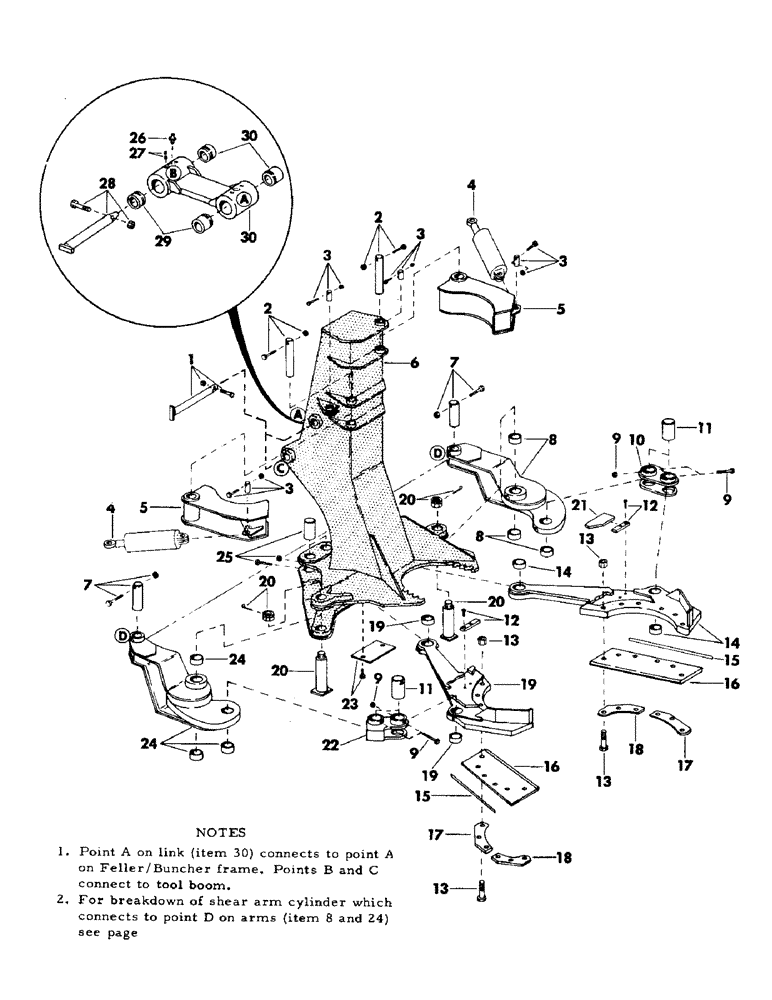

Запчасти Case 40EC (J15) - 24" FELLER/BUNCHER FRAME AND ATTACHING PARTS (18) - ATTACHMENT ACCESSORIES

1

S212138

PIN ASSY.

PIN - Feller, Serial Range: Buncher-boom

2шт.

S82710

BOLT

CPSW - 5/8" NC x 6" gr. 8

2шт.

S17088

NUT

self locking - 5/8" NC

2шт.

2

S89283M1

PIN - mounts grab, Serial Range: arm-frame

2шт.

S2520

BOLT (MACHINE)

CPSW - 5/8" NC x 6" gr. 5

2шт.

S17171

NUT

self locking - 5/8" NC

2шт.

3

S46134

PIN,37.95mm OD x 98.55mm L

- mounts cylinder to grab arm and frame

4шт.

S2475

BOLT

CPSW - 1/2" NC x 3-1/2" gr. 5

4шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.

4

CYLINDER, grab arm - (For breakdown, see page)

2шт.

5

S504968

ARM ASSY.

ARM, grab

2шт.

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT (Straight)

4шт.

6

S952538

FRAME, Feller Buncher

1шт.

7

S89423

PIN

mounts shear, Serial Range: cylinder-lever

2шт.

S2560

BOLT

CPSW - 3/4" NC x 5-3/4" gr. 5

2шт.

S17089

NUT

self locking - 3/4" NC

2шт.

8

S601430M1

LEVER - (Left hand) - (Includes bushings, set screws and grease fittings)

1шт.

S88549

BUSHING

3шт.

S86890

SET SCREW

SCREW, set - 3/8" NC x 3/8"

6шт.

S49270

FITTING

grease - 1/8" NPT x 90 degrees

2шт.

9

S216375

CPSW

4шт.

S88221

NUT

4шт.

10

S217586

LINK - (Left hand)

1шт.

11

S217502

PIN - mounts lever and shear, Serial Range: arms-link

2шт.

12

S218322

BAR, stop

2шт.

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr. 5

4шт.

13

S90305

CPSW

12шт.

S89289

NUT

12шт.

14

S952545M1

ARM - (Left hand) - (Includes bushings, set screws and grease fittings)

1шт.

S88549

BUSHING

2шт.

S86890

SET SCREW

SCREW, set - 3/8" NC x 3/8"

4шт.

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT (Straight)

2шт.

S89817

SHIM - used between shear arm and frame pivot

1шт.

S89818

SHIM - used between shear arm and frame pivot

1шт.

15

S89294

SHIM, knife back-up

1шт.

16

S217496

KNIFE, shear cutting - 7/8" (Optional)

2шт.

S217497

KNIFE, shear cutting - 3/4" (Optional)

2шт.

17

S217514

SUPPORT, cutting knife

2шт.

18

S217515

SUPPORT, cutting knife

2шт.

19

S952544M1

ARM - (Right hand) - (Includes bushings, set screws and grease fittings)

1шт.

S88549

BUSHING

2шт.

S86890

SET SCREW

SCREW, set - 3/8" NC x 3/8"

4шт.

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT (Straight)

2шт.

S89817

SHIM - used between shear arm and frame pivot

1шт.

S89818

SHIM - used between shear arm and frame pivot

1шт.

20

S217500

PIN ASSY.

PIN - mounts, Serial Range: lever-frame

2шт.

S89422

NUT

2шт.

S4688

PIN, cotter - 5/16" x 3-1/2"

2шт.

S7436

WASHER

flat - 2-5/8" ID

2шт.

21

S89546

BAR

wear - used with item 14 and 19

2шт.

S89548

SHIM

1шт.

S89549

SHIM

1шт.

22

S217585

LINK - (Right hand)

1шт.

23

S89369

COVER

1шт.

S2465

BOLT (MACHINE)

CPSW - 1/2" NC x 1" gr. 5

2шт.

24

S601431M1

LEVER - (Right hand) - (Includes bushings, set screws and grease fittings)

1шт.

S88549

BUSHING

3шт.

S86890

SET SCREW

SCREW, set - 3/8" NC x 3/8"

6шт.

S49270

FITTING

grease - 1/8" NPT x 90 degrees

2шт.

25

S217502

PIN - mounts, Serial Range: arm-frame

2шт.

S89817

SHIM, used with S217502 pin - (16 gauge)

4шт.

Added listing.

1шт.

S89818

SHIM, used with S217502 pin - (11 gauge)

4шт.

Added listing.

1шт.

26

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

2шт.

27

S86890

SET SCREW

SCREW, set - 3/8" NC x 3/8" (Nylok)

8шт.

28

S89283

PIN

1шт.

S82710

BOLT

CPSW - 5/8" NC x 3/8" gr. 8

1шт.

S17171

NUT

self locking - 5/8" NC

1шт.

29

S87929M1

BUSHING

6шт.

30

S217548

LINK

- mounts Feller/Buncher to tool boom

1шт.
