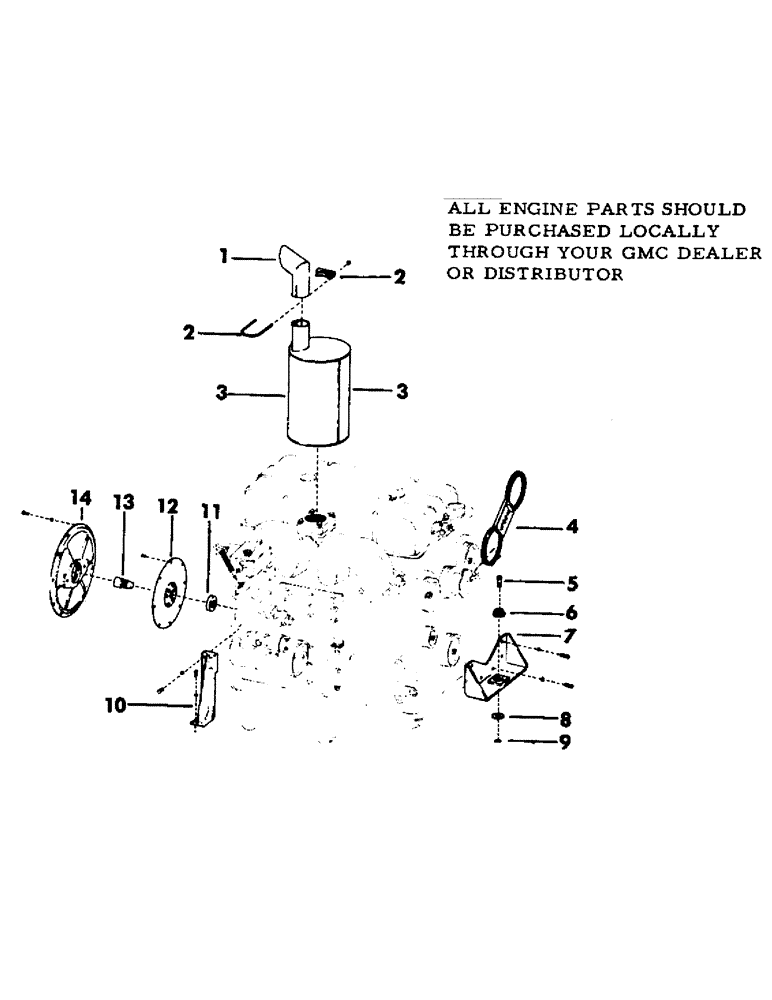

Запчасти Case 40EC (C01) - GMC 4-53 DIESEL ENGINE #55950 AND MOUNTED PARTS (01) - ENGINE

1

S207867

PIPE, exhaust

1шт.

2

S65056

CLAMP

1шт.

3

S207866M2

MUFFLER

1шт.

Change in listing.

1шт.

4

S62939

BELT

V-BELT, Fan

2шт.

S27955

SET OF BELTS,0.38" W

V Belt, Alternator, Matched set of 2, 1 set 0.38" W

1шт.

5

S2511

BOLT (MACHINE)

CPSW - 5/8" NC x 3-3/4" grade 5

1шт.

6

S64712

MOUNTING PARTS

MOUNTING, rubber

1шт.

7

S36393

BRACKET, front engine mounting

1шт.

S2412

BOLT

CPSW - 3/8" NC x 3-3/4" grade 5

4шт.

S4397

WASHER

lock - 3/8"

4шт.

S2431

BOLT

CPSW - 7/16" NC x 1-1/4" grade 5

2шт.

S4398

WASHER, LOCK

- 7/16"

2шт.

8

S49559

WASHER

snubbing

1шт.

9

S17171

NUT

self locking - 5/8" NC

1шт.

10

S38947

BRACKET, rear engine mounting

2шт.

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" grade 5

8шт.

S4399

WASHER

lock - 1/2"

16шт.

280431

NUT,1/2"-13, G5

8шт.

S2472

BOLT

CPSW - 1/2" NC x 2-3/4"

8шт.

11

S63071

SPACER

1шт.

12

S33200

DAMPER

DAMPENER, pump drive

1шт.

S63218

BOLT

place - 3/8" NC x 5/8" grade 5

8шт.

13

S63201

COUPLING

pump drive

1шт.

14

S52615

MOUNTING PARTS

ADAPTION, pump drive

1шт.

S2401

BOLT

CPSW - 3/8" NC x 1" grade 5

12шт.

S4397

WASHER

lock - 3/8"

12шт.
