Запчасти Case 40EC (J05) - CLAM LOG SLING WITH 3/8" WIRE ROPE, (5/8" CORD LOG CLAM) (18) - ATTACHMENT ACCESSORIES

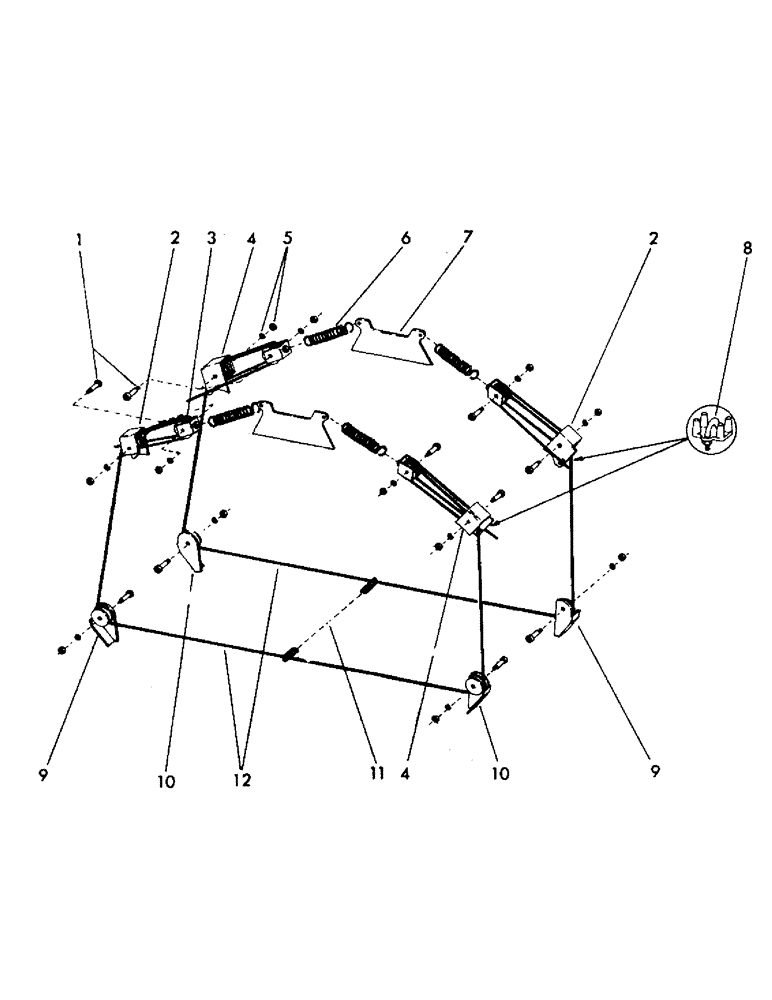

Схема запчастей Case 40EC - (J05) - CLAM LOG SLING WITH 3/8" WIRE ROPE, (5/8" CORD LOG CLAM) (18) - ATTACHMENT ACCESSORIES

Артикул

Название

Примечание

Количество

39639

SCREW

SLING, clam log, Includes Refs. 1 thru 12

1шт.

1

64920

BAND

BOLT, shoulder - 3/8" main diameter - 5/16" x 2" long, Serial Range: Sheave-bracke

12шт.

2

209790

BRACKET, sheave mounting

2шт.

80121M1

SHEAVE

4шт.

Change in listing.

1шт.

7385

WASHER, plain

1шт.

3

209788

BRACKET, sheave mounting

4шт.

80121M1

SHEAVE

8шт.

Change in listing.

1шт.

7385

WASHER, plain

1шт.

4

209789

BRACKET, sheave mounting

2шт.

80121M1

SHEAVE

4шт.

Change in listing.

1шт.

7385

WASHER, plain

1шт.

5

4221

WASHER,3/4", SAE

NUT, 5/16" NC, For sheave shoulder bolts

12шт.

4396

LOCKWASHER - 5/16"

12шт.

6

79372

SPRING, extension

4шт.

7

209428

PLATE, spring mounting

2шт.

8

100797

DRIVE SHAFT

CLIP, wire rope

4шт.

9

209792

BRACKET, sheave mounting

2шт.

80121M1

SHEAVE

2шт.

Change in listing.

1шт.

7385

WASHER, plain

1шт.

10

209791

BRACKET, sheave mounting

2шт.

80121M1

SHEAVE

2шт.

Change in listing.

1шт.

7385

WASHER, plain

1шт.

11

79397

CHAIN, coil - 1/4" x 24" long

1шт.

12

80122

ROPE, wire - 3/8" x 300" long

2шт.

Выбрано товаров: 29
