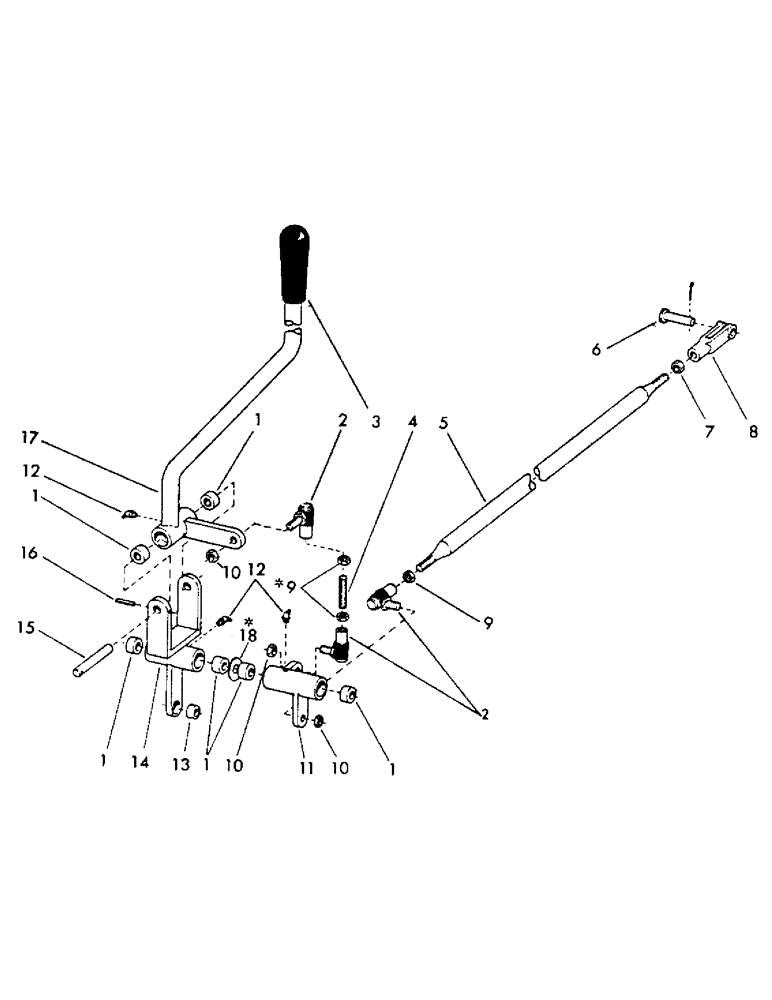

Запчасти Case 40EC (J04) - OPTIONAL DUAL CONTROL LINKAGE, (USED AS HOIST AND HYDRAULIC (18) - ATTACHMENT ACCESSORIES

1

63168

BEARING, needle

6шт.

2

27134

BALLJOINT

3шт.

3

63411

KNOTTER

GRIP, handle

1шт.

4

77484

STUD - 3/8" NC x 2-13/64" long

1шт.

5

207746

ROD, connector - (Used on units with serial number 1 thru 899)

1шт.

Change in listing.

1шт.

201576

ROD, connector - (Used on units with serial number 900-up)

1шт.

Added listing.

1шт.

6

10807

PIN, clevis - 1/2" x 1.188" grip length - (Used on units with serial number 1 thru 899)

1шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

1шт.

NLS

NO LONGER SERVICED

PIN, clevis - 3/8" x 1.016" grip length - (Used on units with serial number 900-up)

1шт.

Added listing.

1шт.

4640

CHECK VALVE

PIN, cotter - 5/32" x 3/4" grip long

1шт.

Added listing.

1шт.

7

4245

SEAL KIT

NUT, jam - 1/2" NF - (Used on units with serial number 1 thru 899)

1шт.

Change in listing.

1шт.

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF - (Used on units with serial 900-up)

1шт.

Added listing.

1шт.

8

12513

SNAP RING,M70, Ext

YOKE - (Used on units with serial number 1 thru 899)

1шт.

Change in listing.

1шт.

12514

CIRCLIP

YOKE - (Used on units with serial number 900-up)

1шт.

Added listing.

1шт.

9

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF

3шт.

Change in listing.

1шт.

10

17153

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

NUT, self locking - 3/8" NF

3шт.

11

208512

VALVE

BELLCRANK

1шт.

12

49793

GUARD

FITTING, grease

3шт.

13

40815

ENGINE MOUNT

BEARING, needle

1шт.

14

208513

CYLINDER BLOCK

BELLCRANK

1шт.

15

77485

PIN

1шт.

16

5323

PIN

roll - 1/2" x 1-1/4" long

1шт.

17

38772

SPINDLE

HANDLE, dual control

1шт.

Change in listing.

1шт.

18

7403

WASHER, flat - 21/32" ID x 1-5/16" O.D.

1шт.

Change in listing.

1шт.
