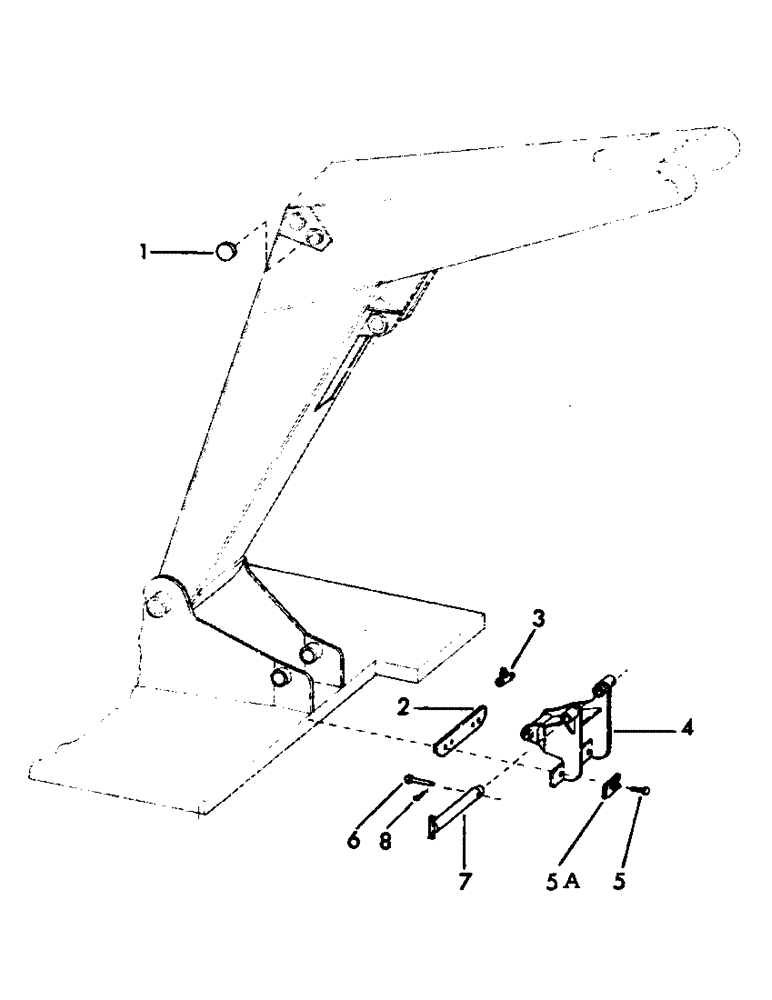

Запчасти Case 40EC (F29) - HEAVI-LIFT LOGGER ATTACHMENT GROUP, (USED ON "Y" BOOMS) (18) - ATTACHMENT ACCESSORIES

1

79797

PLATE, cover (For mounting instructions, see Ref. 9)

2шт.

2

S216490

PLATE, achor (For mounting instructions, see Ref. 9)

1шт.

Change in listing.

1шт.

3

209354

SWIVEL - (For breakdown, see section "I")

2шт.

4

S57332M1

BRACKET, hoist cylinder

1шт.

Change in listing.

1шт.

5

S86016

BOLT

CPSW - 3/4" x 1-3/4" NC grade 5

4шт.

5a

80654

FITTING

STRIP, locking - for 2543 CPSWS

4шт.

6

61972

PIN, clevis - 1/2 x 3.266" grip length

1шт.

7

213911

FRAME

PIN

1шт.

8

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

1шт.

9

S57026M1

DRAWING, installation - instructions for welding Refs. 1 and 2 - (Not illustrated)

1шт.

Change in listing.

1шт.
