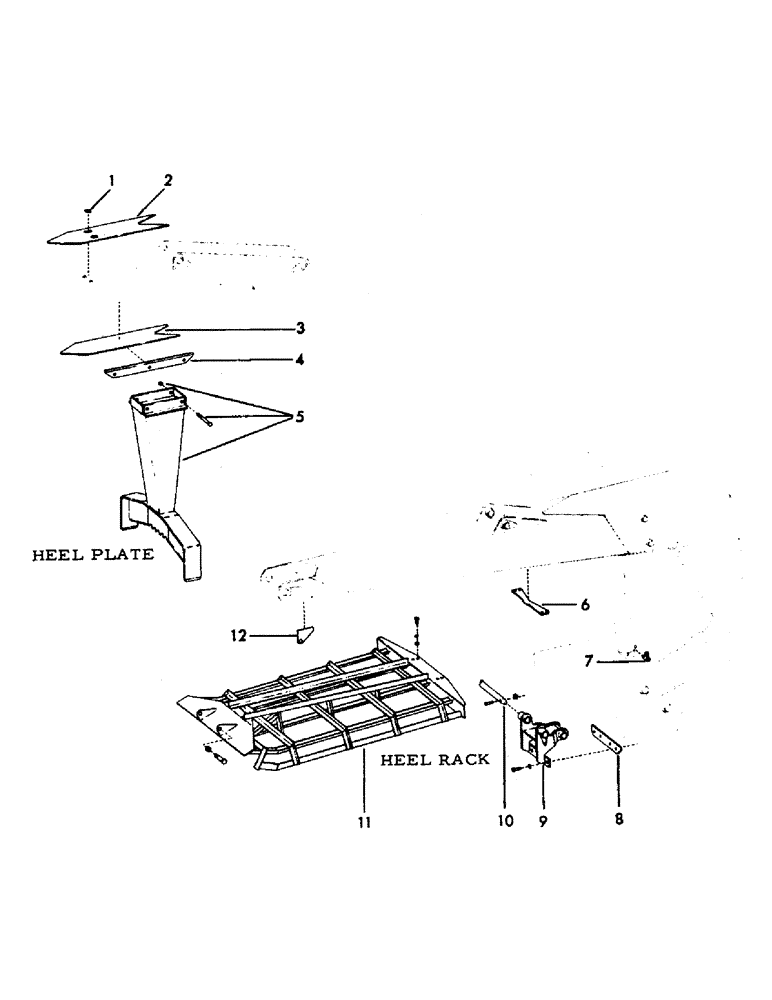

Запчасти Case 40EC (F27) - HEEL PLATE AND HEEL RACK, (HEAVI-LIFT LOGGER ATTACHMENTS (18) - ATTACHMENT ACCESSORIES

39468

GROUP, heel plate (Consists of 1 thru 5 and 13)

1шт.

39518

GROUP, heavi-lift logger attachment (Consists of Refs. 7 thru 10 and 15)

1шт.

39506

GROUP, heel rack (Consists of Refs. 6, 11, 12 and 14)

1шт.

1

79103

SPACER

2шт.

2

209212

PLATE, reinforcing (For mounting instructions, see Ref. 13)

1шт.

3

209287

PLATE, reinforcing (For mounting instructions, see Ref. 13)

1шт.

4

S209957

BAR, mounting (For mounting instructions, see Ref. 13)

2шт.

Change in listing.

1шт.

5

57002

SPARE PART

PLATE, heel

1шт.

2643

U-BOLT

CPSW - 1" x 9-1/2" NC grade 5

2шт.

17174

NUT, self locking - 1" NC

2шт.

6

209863

PLATE, heel rack mounting - rear (For mounting instructions, see Ref. 14)

1шт.

7

209354

SWIVEL, hoist cylinder base

2шт.

8

S216490

PLATE, anchor (For mounting instructions, see Ref. 15)

1шт.

Change in listing.

1шт.

9

39341M1

BRACKET, hoist cylinder

1шт.

S86016

BOLT

CPSW - 3/4" x 1-3/4" NC grade 8

4шт.

10

213911

FRAME

PIN, hoist cylinder base

1шт.

61972

PIN, clevis - 1/2" x 3.266" grip length

1шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

1шт.

11

951843

RACK, heel

1шт.

2547

CYLINDER END CAP

CPSW - 3/4" x 2-1/2" NC grade 5

4шт.

4402

LOCK WASHER

LOCKWASHER - 3/4"

4шт.

4227

TOY

NUT - 3/4" NC

4шт.

2678

SPECIAL NUT

CPSW - 1-1/4" x 3-1/2" NC grade 5

2шт.

17093

NUT, self locking - 1-1/4" NC

2шт.

12

79206

PLATE, heel rack mounting - front (For mounting instructions, see Ref. 14)

2шт.

13

57001

SPARE PART

DRAWING, welded and installation (Instructions for welding Refs. 2, 3 and 4) (Not illustrated)

1шт.

14

57675

DRAWING, welded and installation (Instructions for welding Refs. 6 and 12) (Not iilustrated)

1шт.

15

S57026M1

DRAWING, welded and installation (Instructions for welding Ref. 8) (Not illustrated)

1шт.

Change in listing.

1шт.
