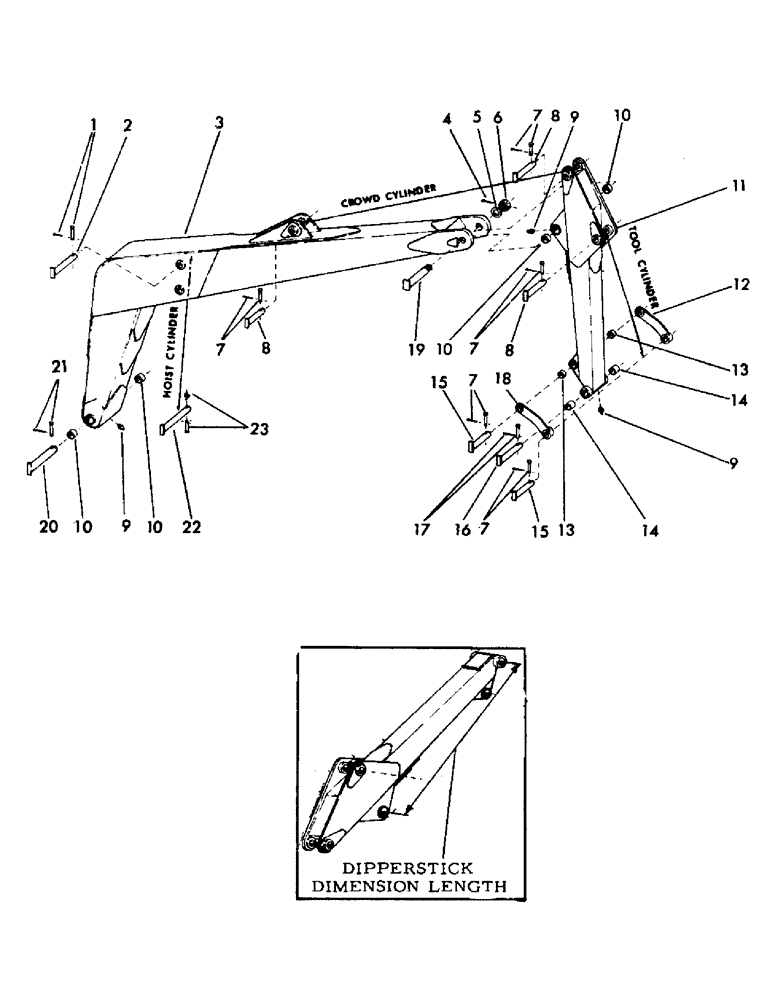

Запчасти Case 40EC (D17) - "E" MAIN BOOM AND DIPPERSTICKS, (WITH PINS AND LINKS) (09) - BOOMS

1

61972

PIN, clevis - 1/2" x 3.266" grip length

1шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

1шт.

2

208517

PIN

1шт.

3

S951385M1

BOOM, main excavator (Includes one ofRef. 9, and two of Ref. 10)

1шт.

Change in listing.

1шт.

4

4678

HYDRAULIC HOSE

PIN, cotter - 1/4" x 3-1/2" long

1шт.

5

7436

WASHER, flat - 2"

1шт.

6

9396

NUT, slotted - 2" NC

1шт.

7

61973

PIN, clevis - 1/2" x 3.766" grip length

6шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

6шт.

8

208704

PIN

3шт.

9

12031

FITTING, grease - 1/8" NPT (Straight)

4шт.

10

210602

BUSHING

4шт.

11

S951388M2

DIPPERSTICK - 6'5" (Includes three of Ref. 9, and two of Ref. 10, and Refs. 13 and 14)

1шт.

S951387M3

DIPPERSTICK - 8'5" (Includes three of Ref. 9, and two of Ref. 10, and Refs. 13 and 14)

1шт.

S951389M2

DIPPERSTICK - 10'5" (Includes three of Ref. 9, and two ofRef. 10, and Refs. 13 and 14)

1шт.

12

S38355M1

LINK

guide - left hand

1шт.

13

202134

HYDRAULIC CYLINDER

BUSHING

2шт.

14

202137

BUSHING

2шт.

15

205653M1

PIN

2шт.

16

208518

BUSHING

PIN - (Dipperstick tool)

1шт.

17

61973

PIN, clevis - 1/2" x 3.766" grip length

1шт.

S4641

PIN, SPLIT (COTTER)

PIN, cotter - 3/32" x 1" long

1шт.

18

S38354

LINK

guide - right hand

1шт.

19

208708

GASKET

PIN, shoulder

1шт.

20

201023M1

PIN

1шт.

21

61975

PIN, clevis - 5/8" x 3.766" grip length

1шт.

4628

SPRING WASHER

PIN, cotter, 1/8"x 1-1/4" long

1шт.

22

213911

FRAME

PIN - (Hoist, Serial Range: cylinder-base)

1шт.

23

61972

PIN, clevis - 1/2" x 3.266" grip length

1шт.

4627

COTTER PIN

PIN, cotter - 1/8" x 1" long

1шт.
