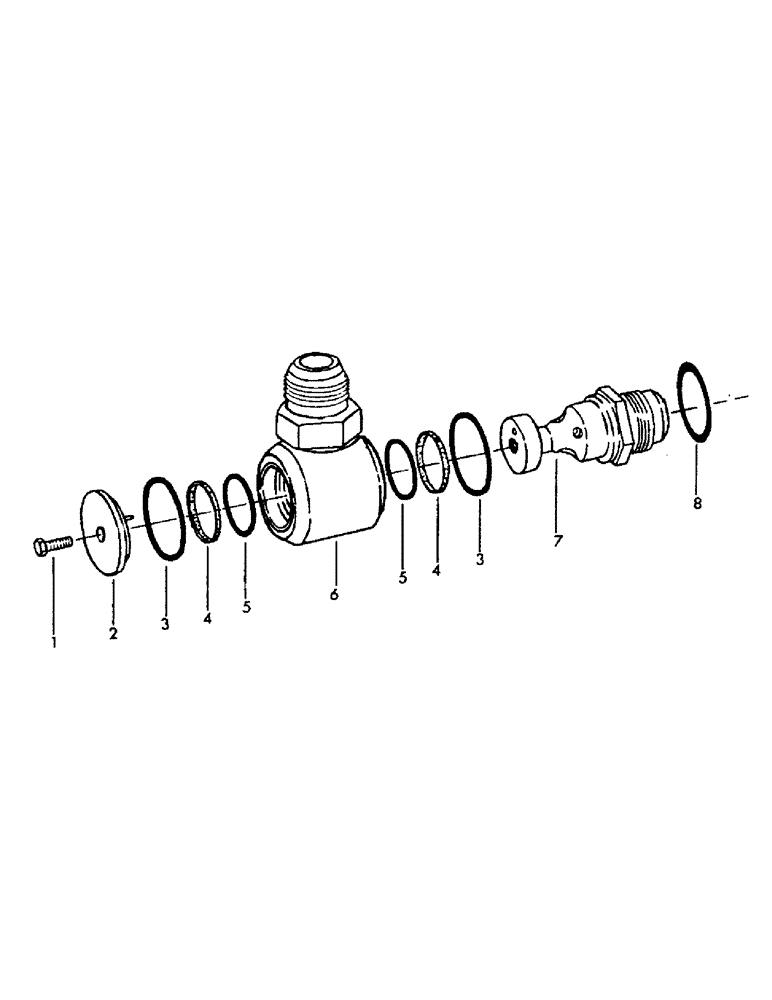

Запчасти Case 40EC (H37) - SWIVEL - BASE TO HOIST CYLINDER, USED WITH HEAVI-LIFT LOGGER (07) - HYDRAULIC SYSTEM

209354

SWIVEL - (Consists of items 1 thru 8)

1шт.

1

2349

CPSW - 1/4" x 1/2" NC gr. 5

1шт.

2

7992

SENSOR

CAP, grit

1шт.

3

5815

PANEL

"O" RING - 1.484" ID x 1.750" OD

2шт.

4

81854

PIN,12.7mm OD x 88.9mm L

RING, back up

2шт.

5

6583

O-RING

"O" RING - 1.296" ID x 1.562" OD

2шт.

6

NSS

NOT SOLD SEPARAT

BODY

1шт.

7

NSS

NOT SOLD SEPARAT

STEM, swivel

1шт.

8

6073

O-RING

"O" RING - 1.475" ID x 1.711" OD

1шт.

82242

KIT, seal - (Consists of items 3, 4, 5 and 8)

1шт.
