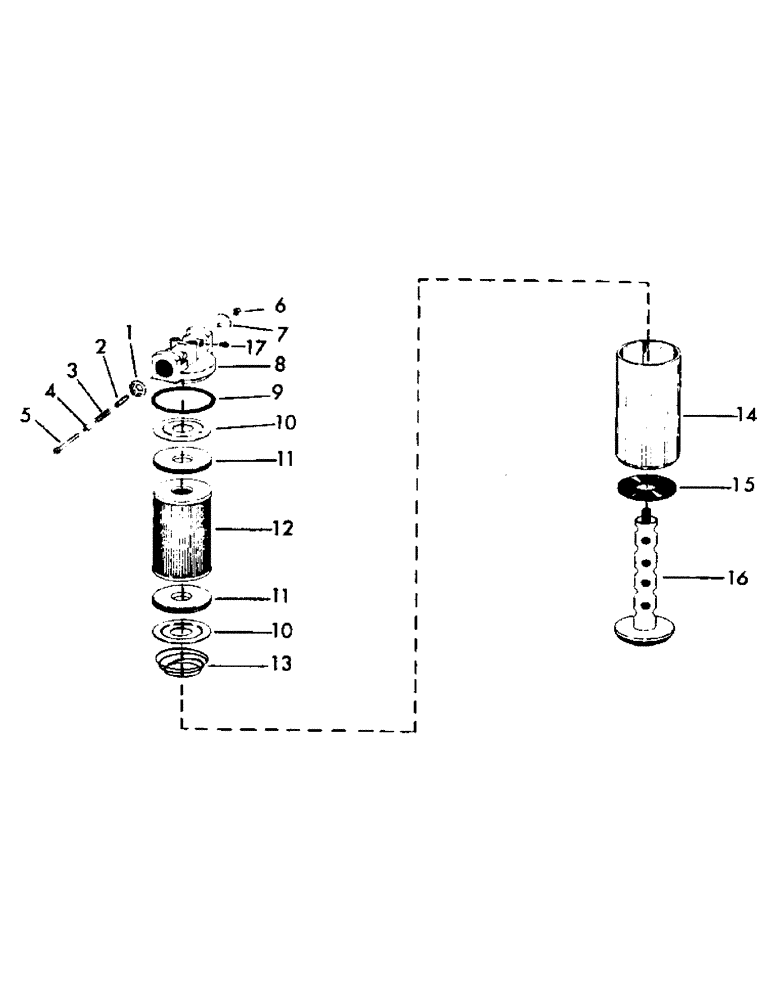

Запчасти Case 40EC (H36) - HYDRAULIC OIL FILTER (07) - HYDRAULIC SYSTEM

208364M1

GRESEN #G-FA-220-15 per F-31-A, Used on units with serial number 1 thru 716

1шт.

Change in listing.

1шт.

209407M1

GRESEN #G-FA-315-NR - Used on units with serial number 717-up

1шт.

Change in listing.

1шт.

209408

GRESEN #G-FA-220-5 - Used on units with serial number 717-up

1шт.

208364M1

FILTER, hydraulic oil - complete Consists of Refs. 1 thru 17

1шт.

Change in listing.

1шт.

209407M1

FILTER, hydraulic oil - complete Consists of Refs. 1 thru 17

1шт.

Change in listing.

1шт.

209408

FILTER, hydraulic oil - complete Consists of Refs. 1 thru 17

1шт.

Change in listing.

1шт.

1

63731

PAD

GUIDE, by-pass valve

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

2

63732

SCREW

SPACER, by-pass valve, For 208364M1 and 209408 filters only

1шт.

Change in listing.

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

3

63733

SPRING, by-pass - 15 PSI, For 208364M1 and 209407 filters

1шт.

Change in listing.

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

62431

SPRING, by-pass - 5 PSI, For 209408 filter only

1шт.

Change in listing.

1шт.

4

63734

CAP, by-pass stem

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

5

63735

CLEVIS PIN

SCREW

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

6

63730

SCREW

NUT

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

7

63729

SCREW

VALVE, by-pass

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

8

60100

HEAD, Includes Ref. 17

1шт.

Change in listing.

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

9

63727

"O" RING

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

10

63724

GUIDE

WASHER, back-up

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

11

63725

PIN

GASKET

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

12

62463

PIN

ELEMENT, filter - 100 mesh, For 209407M1 filter only

1шт.

Change in listing.

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

62434

ELEMENT, filter - 20 micron, For 208364M1 and 209408 filters

1шт.

Change in listing.

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

13

63723

SPRING, conical

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

14

63722

HOUSING, filter

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

15

63721

GASKET

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

16

63720

POST, center, Cast iron

1шт.

Change in listing.

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.

17

15163

PLUG, pipe - 3/8" NPT

1шт.

Added listing.

1шт.

Part of hydraulic oil filter P/N's 208364M1, 209407M1, and 209408

1шт.
