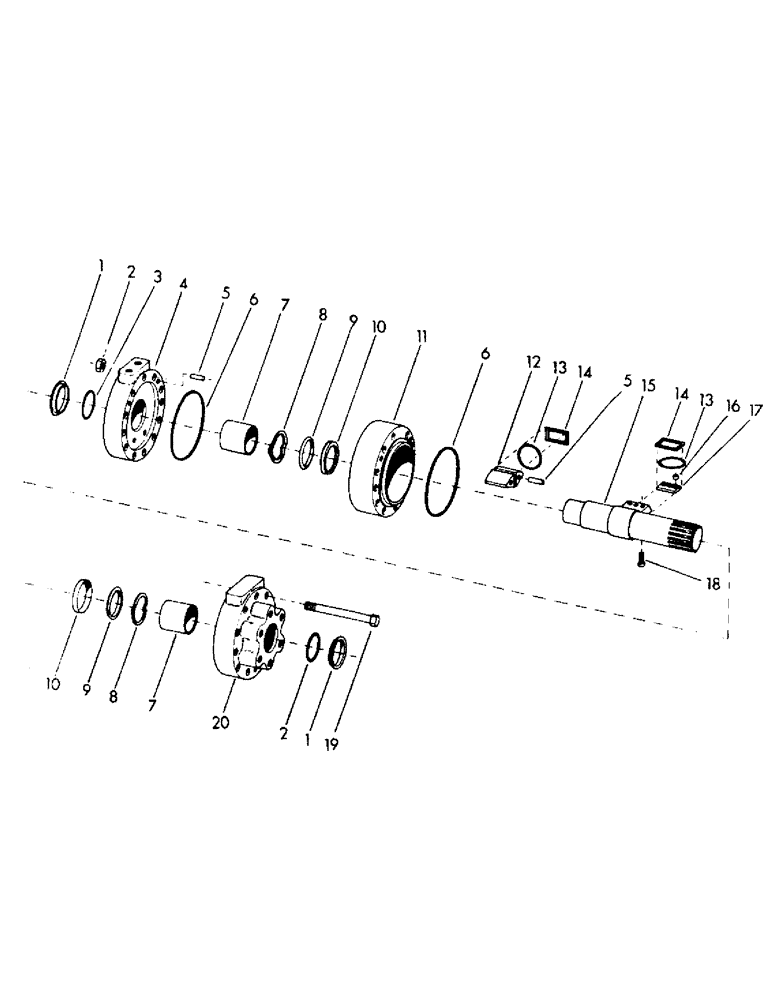

Запчасти Case 40EC (H31) - PULPWOOD CLAM ACTUATOR, HOUDAILLE #420154-LSB (07) - HYDRAULIC SYSTEM

207266

ACTUATOR - complete (Consists of Refs. 1 thru 20)

1шт.

1

77308

SEAL, shaft

2шт.

Part of seal overhead kit P/N 76962

1шт.

Part of actuator P/N 77308

1шт.

2

4205

NUT

- 1/2" NF

12шт.

Part of actuator P/N 77308

1шт.

3

6318

O-RING

"O" RING - 2.234" ID x 2.500" O.D.

2шт.

Part of seal overhead kit P/N 76962

1шт.

Part of actuator P/N 77308

1шт.

4

77307

END - ported

1шт.

Part of actuator P/N 77308

1шт.

5

64319

PIN, dowel - 1/2" x 1-1/2" long

6шт.

Part of actuator P/N 77308

1шт.

6

6351

"O" RING - 6.734" ID x 7" O.D.

2шт.

Part of seal overhead kit P/N 76962

1шт.

Part of actuator P/N 77308

1шт.

7

77309

BUSHING

2шт.

Part of actuator P/N 77308

1шт.

8

77310

SPRING, wave

2шт.

Part of actuator P/N 77308

1шт.

9

77311

RING, hub seal

2шт.

Part of actuator P/N 77308

1шт.

10

77312

SEAL, hub

2шт.

Part of seal overhead kit P/N 76962

1шт.

Part of actuator P/N 77308

1шт.

11

77313

FITTING

RESERVOIR

1шт.

Part of actuator P/N 77308

1шт.

12

77314

ABUTMENT

1шт.

Part of crossover relief valve P/N 210430

1шт.

Part of actuator P/N 77308

1шт.

13

6320

"O" RING - 2.484" ID x 2.750" O.D.

2шт.

Part of seal overhead kit P/N 76962

1шт.

Part of actuator P/N 77308

1шт.

14

77315

SEAL, vane

2шт.

Part of seal overhead kit P/N 76962

1шт.

Part of actuator P/N 77308

1шт.

15

77316

WING SHAFT

1шт.

Part of actuator P/N 77308

1шт.

16

77317

SEAL, vane stud

3шт.

Part of seal overhead kit P/N 76962

1шт.

Part of actuator P/N 77308

1шт.

17

77318

X

SPACER

3шт.

Part of actuator P/N 77308

1шт.

18

78419

STUD

3шт.

Change in listing.

1шт.

Part of actuator P/N 77308

1шт.

19

77320

CPSW - 1/2" x 6" NF grade 8

12шт.

Part of actuator P/N 77308

1шт.

20

77319

END - non ported

1шт.

Part of actuator P/N 77308

1шт.

76962

KIT, seal overhead (Consists of Refs. 1, 3, 6, 10, 13 thru 14 and 16)

1шт.
