Запчасти Case 40EC (H25L) - MAIN RELIEF VALVE CARTRIDGE (07) - HYDRAULIC SYSTEM

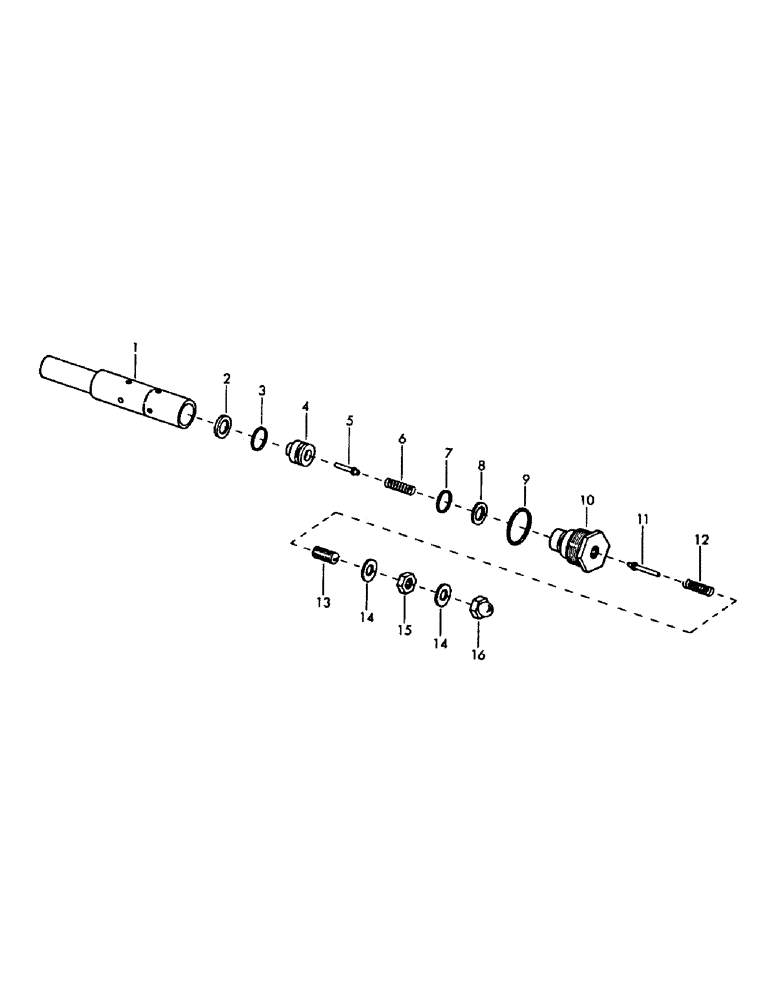

Схема запчастей Case 40EC - (H25L) - MAIN RELIEF VALVE CARTRIDGE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

62112

CARTRIDGE, main relief valve - complete, Consists of Refs. 1 thru 16

1шт.

1

62413

SLEEVE

1шт.

Part of main relief valve P/N 62112

1шт.

2

84098

RING, back up

1шт.

Change in listing.

1шт.

Part of main relief valve P/N 62112

1шт.

3

6476

"O" RING - .487" ID x .687" O.D.

1шт.

Part of main relief valve P/N 62112

1шт.

4

62366

POPPET

1шт.

Part of main relief valve P/N 62112

1шт.

5

62408

PISTON

1шт.

Part of main relief valve P/N 62112

1шт.

6

62372

SPRING

1шт.

Part of main relief valve P/N 62112

1шт.

7

5706

ELECTRICAL WIRE

"O" RING - .549" ID x .750" O.D.

1шт.

Part of main relief valve P/N 62112

1шт.

8

84196

RING, back up

1шт.

Change in listing.

1шт.

9

5807

O-RING

"O" RING - .984" ID x 1.250" O.D.

1шт.

Part of main relief valve P/N 62112

1шт.

10

62414

SPLIT PIN

PLUG

1шт.

Part of main relief valve P/N 62112

1шт.

11

62323

POPPET

1шт.

Part of main relief valve P/N 62112

1шт.

12

62359

SPRING

1шт.

Part of main relief valve P/N 62112

1шт.

13

62325

SCREW, adjustment

1шт.

Part of main relief valve P/N 62112

1шт.

14

62365

WASHER, copper

2шт.

Part of main relief valve P/N 62112

1шт.

15

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF

1шт.

Part of main relief valve P/N 62112

1шт.

16

62363

NUT, acorn

1шт.

Part of main relief valve P/N 62112

1шт.

Выбрано товаров: 34
