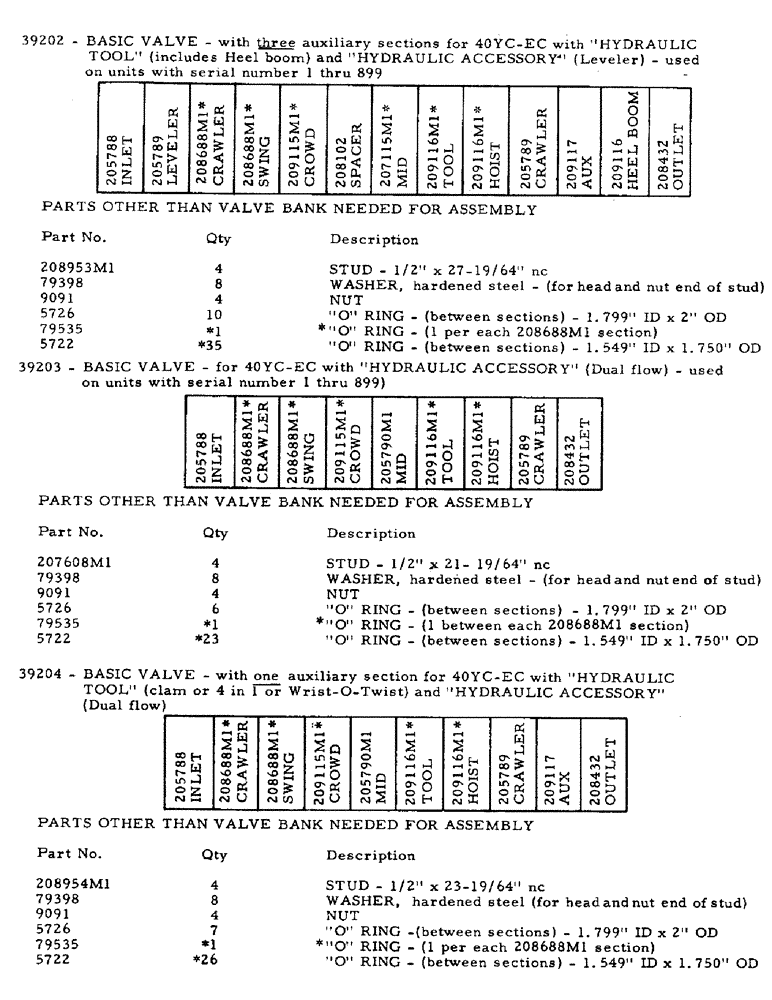

Запчасти Case 40EC (H13) - HYDRAULIC VALVES INTRODUCTION (CONTD), MAIN VALVE BANK (07) - HYDRAULIC SYSTEM

39202

YOKE

BASIC VALVE - with three auxiliary sections for 40YC-EC with "Hydraulic Tool" Includes heel boom and "Hydraulic Accessory" Leveler, used on units with serial number 1 thru 899

1шт.

208953M1

STUD - 1/2" x 27-19/64" NC

4шт.

79398

WASHER, hardened steel, For head and nut end of stud

8шт.

9091

RING

NUT

4шт.

5726

"O" RING, Between sections, 1.799" ID x 2" O.D.

10шт.

79535

"O" RING, 1 per each 208688M1 section

1шт.

Change in listing.

1шт.

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING, Between sections, 1.549" ID x 1.750" O.D.

35шт.

Change in listing.

1шт.

39203

BASIC VALVE - for 40YC-EC with "Hydraulic Accessory", used on units with serial number 1 thru 899

1шт.

207608M1

STUD - 1/2" x 21 - 19/64" NC

4шт.

79398

WASHER, hardened steel, For head and nut end of stud

8шт.

9091

RING

NUT

4шт.

5726

"O" RING, Between sections, 1.799" ID x 2" O.D.

6шт.

79535

"O" RING, 1 between each 208688M1 secton

1шт.

Change in listing.

1шт.

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING, Between sections, 1.549" ID x 1.750" O.D.

23шт.

Change in listing.

1шт.

39204

SCREW

BASIC VALVE - with one auxiliary section for 40YC-EC with "Hydraulic Tool" Clam or 4 in 1 or wrist-o-twist and "Hydraulic Accessory" Dual flow

1шт.

208954M1

STUD - 1/2" x 23-19/64" NC

4шт.

79398

WASHER, hardened steel, For head and nut end of stud

8шт.

9091

RING

NUT

4шт.

5726

"O" RING, Between sections, 1.799" ID x 2" O.D.

7шт.

79535

"O" RING, 1 per each section 208688M1 section

1шт.

Change in listing.

1шт.

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING, Between sections, 1.549" ID x 1.750" O.D.

26шт.

Change in listing.

1шт.
