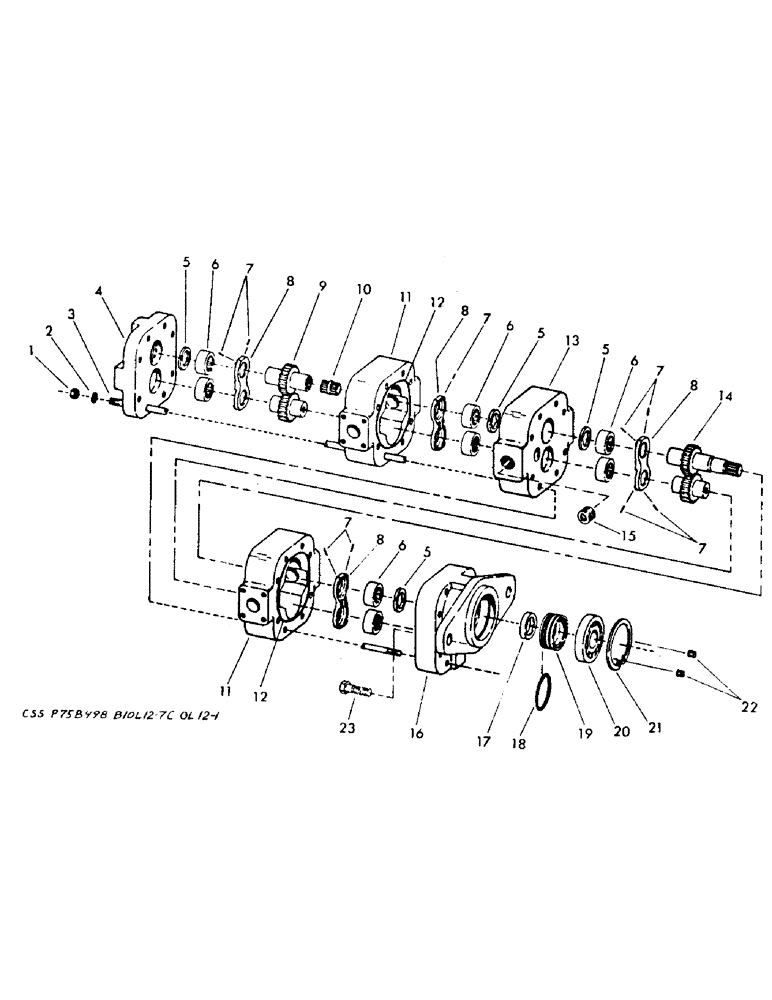

Запчасти Case 40EC (H09A) - * HYDRAULIC TANDEM PUMP, (USED ON UNITS WITH GMC 4-71 DIESEL (07) - HYDRAULIC SYSTEM

502120

TUBE

PUMP, hydraulic tandem - (Consists of items 1 thru 22)

1шт.

1

16682

NUT - 5/8" NC gr. 5

8шт.

2

495-81179

WASHER,21/32" x 1 1/4" x .179"

8шт.

3

82801

STUD, 5/8" NC

8шт.

4

82768

EYE

COVER, port end

1шт.

5

82765

PLATE

SEAL, shaft

4шт.

6

82722

BEARING, roller

3шт.

7

82794

SEAL

24шт.

8

82770

PLATE, thrust

4шт.

9

82800

OPERATOR MANUAL

GEAR - set - 1-1/4"

1шт.

10

82799

SHAFT, connecting

1шт.

11

82764

HOUSING

gear

2шт.

12

82795

GASKET

4шт.

13

82798

CARRIER, bearing

1шт.

14

82797

GEAR - set - 1-1/4"

1шт.

15

7879

GASKET

PLUG, pipe - 1/4" - 18 NPT

1шт.

16

82721

COVER, shaft end

1шт.

17

82766

SEAL, lip

1шт.

18

5739

"O" RING - 2.612" ID x 2.812" OD

1шт.

19

82763

RETAINER, seal

1шт.

20

82767

BEARING

1шт.

21

82724

RING, snap

1шт.

22

18800

TRANSMISSION

SCREW, set

1шт.

23

2502

RUBBER WASHER

CPSW - 5/8" x 1-1/2" NC gr. 5

2шт.
