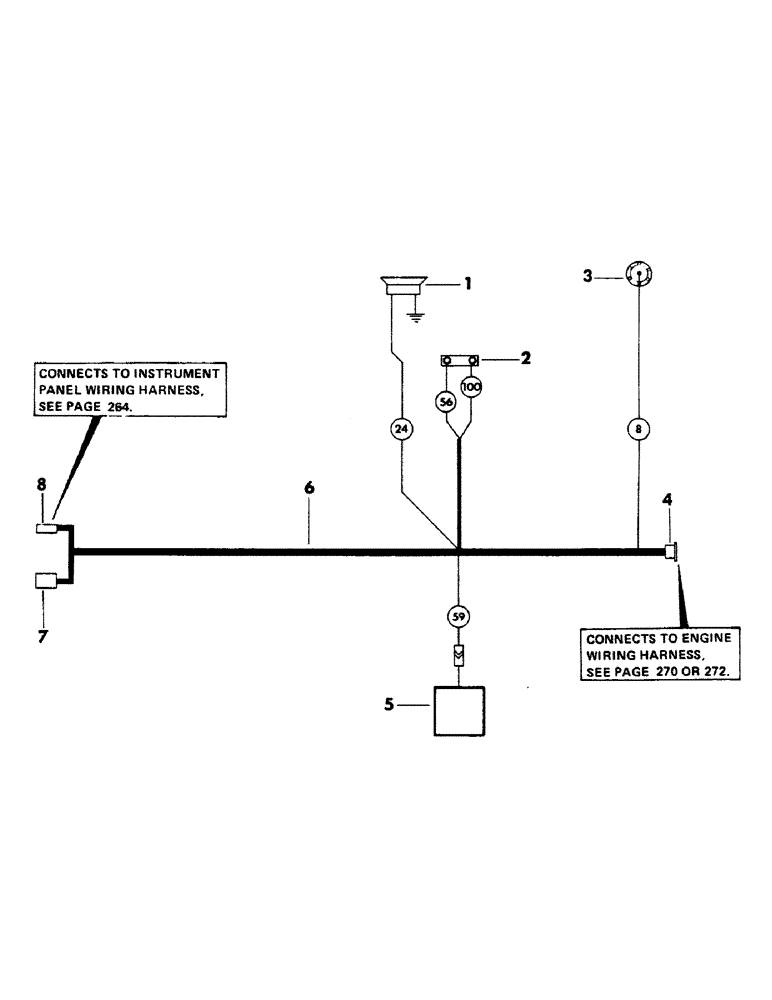

Запчасти Case 40BLC (268) - TURNTABLE WIRING HARNESS AND ELECTRICAL COMPONENTS (06) - ELECTRICAL SYSTEMS

1

S203189

HORN

1шт.

195-516

WASHER,#12

flat - 1/4" - (Spacer to horn)

1шт.

S203190

BRACKET

horn mounting

1шт.

S64752

NUT

- (Horn to horn mounting bracket)

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Horn mounting bracket to unit

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

195-103

WASHER,5/16"

flat - 1/4"

1шт.

S62256

LOOM

- (Bulk) - 1 piece - 22" long - (Over wire for protection)

1шт.

2

L11349

SWITCH

micro - (Brake warning)

1шт.

173-68

SCREW,Sl Rnd Hd, #6 - 32 x 1 1/4"

machine - no. 6 NC x 1-1/4" - (Mounts switch to mounting bracket)

2шт.

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

2шт.

129-15

NUT,#6-32

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

self locking - 1/4" NC - (On terminals of micro switch)

2шт.

195-101

WASHER,3/16"

flat - 1/4"

2шт.

S73387

CLIP

TIE, cable

1шт.

3

SENDING UNIT, fuel gauge - (See item 2 on page 58)

1шт.

S62256

LOOM

(Bulk) - 1 piece - 125" long - (Over wire for protection)

1шт.

S75868

CLAMP

-, Serial Range: (Wire-turntable)

7шт.

Change in listing

1шт.

S48576

NUT

7шт.

4

223-164

CONNECTOR, plastic electrical - (Male) - (14 contacts) - (Used with wire no's 9, 11, 12, 15, 40, 41, 54 and 70)

1шт.

5

HEATER - (For breakdown, see page 293)

1шт.

6

S223281

ELECTRICAL WIRE

WIRING HARNESS, turntable - (Includes items 4, 7, and 8) - (Supersedes S220678)

1шт.

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE (Around connector bodies of harness to secure them together)

1шт.

T42284

CLAMP

- (Wiring, Serial Range: harness-turntable)

1шт.

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- (Wiring harness to turntable)

2шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

2шт.

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- (Wiring harness to throttle lever cpsw)

1шт.

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(Mounts clamp) Hex, 1/4"-20 x 1", G5

1шт.

195-516

WASHER,#12

flat - 1/4"

1шт.

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

1шт.

7

223-172

CONNECTOR, ELEC

CONNECTOR, plastic electrical - (Female) - (8 contacts) - (Used with wire no's 9, 12, 15, 40, 54, 59 and 100)

1шт.

8

223-170

CONNECTOR, ELEC

CONNECTOR, plastic electrical - (Female) - (6 contacts) - (Used with wire no's 8, 11, 24, 41, 56 and 70)

1шт.

S605065

SCHEMATIC, electrical

1шт.

S605064

HARNESS

WIRING HARNESS - consists of items 6 on page 268 and item 6 on page 264

1шт.

Change in listing

1шт.
