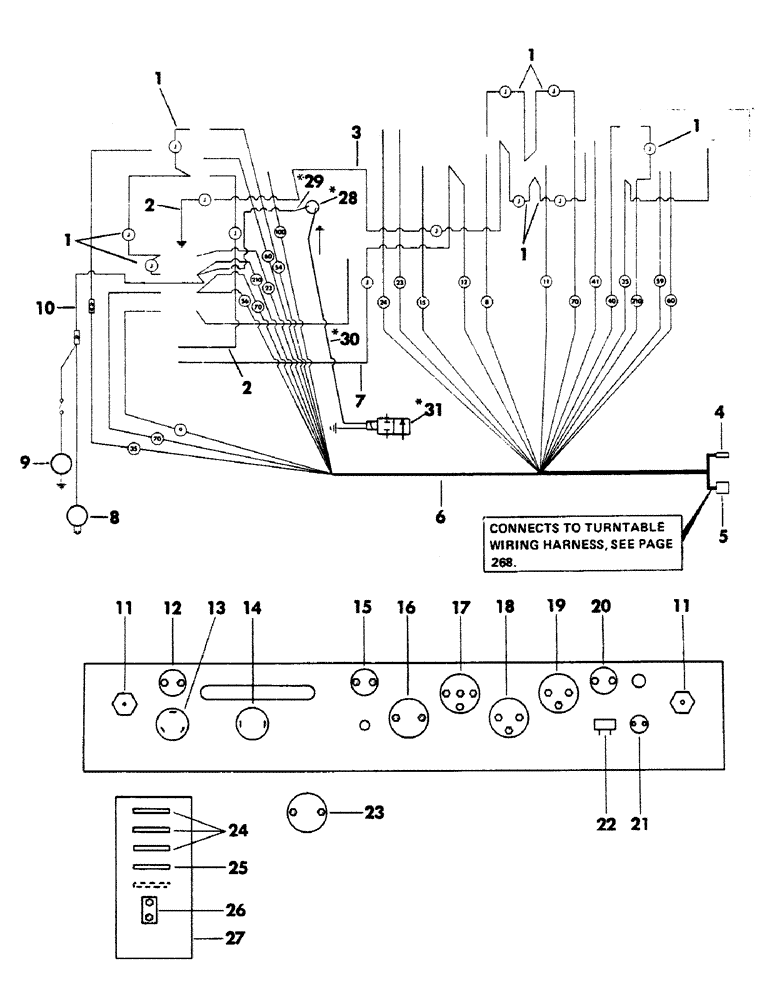

Запчасти Case 40BLC (264) - INSTRUMENT PANEL WIRING HARNESS AND ELECTRICAL COMPONENTS (06) - ELECTRICAL SYSTEMS

1

S208230

WIRE, jumper - no. 12 gauge x 4" long

7шт.

2

S208228

WIRE, jumper - no. 12 gauge x 9" long

2шт.

3

S209787

ELECTRICAL WIRE

WIRE, jumper - no. 14 gauge x 20" long

1шт.

4

223-161

CONNECTOR, ELEC

CONNECTOR, plastic electrical - (Male) - (6 contacts) - (Used with wire no's 8, 11, 24, 41, 56 and 70)

1шт.

5

223-162

CONNECTOR, ELEC

CONNECTOR, plastic electrical - (Male) - (8 contracts) - (Used with wire no's 9, 12, 15, 40, 54, 59 and 100)

1шт.

6

S223282

HARNESS

WIRING, HARNESS, instrument panel - (Includes items 4 and 5) - (Supersedes S220679)

1шт.

7

S213755

ELECTRICAL WIRE

WIRE, jumper - no. 10 gauge x 22" long

1шт.

S62256

LOOM

(Bulk) - 1 piece - 22" long - (Over wire for protection)

1шт.

8

S85807

FAN

defroster

1шт.

S40799

SCREW

self tapping, 1/4" NC x 1/2"

3шт.

9

MOTOR, wiper - (For wiper motor and switch, see item 13 on page 70)

1шт.

T42284

CLAMP

-, Serial Range: (Wiper-cab)

5шт.

S62256

LOOM

(Bulk) - 1 piece - 70" long - (Around wiper wire for protection)

1шт.

10

S221693

WIRE, jumper - no. 14 gauge x 73" long

1шт.

11

S85560

LIGHT

panel

2шт.

12

D34924

SWITCH

BUTTON, starter - (Supersedes S63242)

1шт.

Change in listing

1шт.

13

S76366

SWITCH

ignition

1шт.

193-37

LOCK WASHER,Int Tooth, 1"

WASHER, LOCK, Int Tooth, 1"

1шт.

14

S96034

LIGHT

brake

1шт.

S96096

BULB

1шт.

15

D34924

SWITCH

BUTTON, horn - (Supersedes S63242)

1шт.

Change in listing

1шт.

16

S235623

AMMETER - (Supersedes S27828M1)

1шт.

Change in listing

1шт.

17

S27829

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

18

S27824

ELECTRICAL GAUGE

GAUGE, engine temperature

1шт.

19

S27827

GAUGE

oil pressure

1шт.

20

D34924

SWITCH

BUTTON, cold weather starting - (Furnish with optional cold weather starting kit for kit, see page 286)

1шт.

21

SWITCH, heater - (Furnished with heater, see item 11 on page 293)

1шт.

22

S16866

SWITCH

panel light

1шт.

23

S213391

HOURMETER

- (Furnish with wires) - (Mounts to item 12 on page 60)

1шт.

A27780

FLANGE

DAMPENER

1шт.

173-32

SCREW,Sl Rnd Hd, #4 - 40 x 3/4"

machine - no. 4 NC x 3/4"

3шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

129-13

NUT,#4-40

3шт.

223-61

TERMINAL CONNECTOR,14 - 16

TERMINAL - (Crimp to hourmeter wire for ground)

1шт.

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL - (Crimp to hourmeter wire to fuse panel)

1шт.

24

223-15

FUSE,15 Amp, Type 3AG

- 15 amp

3шт.

25

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

FUSE - 7.5 amp - (Supersedes S85434)

1шт.

26

S49918

BREAKER

circuit

1шт.

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

machine - no. 10 NC x 5/8" NC - (Mounts breaker to fuse holder)

2шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

129-17

NUT,Hex, #10 - 24

NUT - no. 10 NC

2шт.

129-37

NUT,#10-32

For breaker terminal post #10-32

2шт.

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

27

S213686

HOLDER

fuse

1шт.

171-64

SCREW, machine - no. 6 NC x 3/4" - (Mounts fuse holder to instrument panel)

2шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

129-15

NUT,#6-32

2шт.

S605065

SCHEMATIC, electrical

2шт.

28

S88636

IGNITION SWITCH

SWITCH, toggle - (For two speed)

1шт.

Added listing

1шт.

29

S236936

WIRE, jumper

1шт.

Added listing

1шт.

30

S236935

WIRE, jumper

1шт.

Added listing

1шт.

S62256

LOOM

- (Bulk) - 1 piece - 100" long - (Over wire for protection)

1шт.

31

SOLENOID VALVE, hi-low range - (See page 254)

1шт.

Added listing

1шт.
