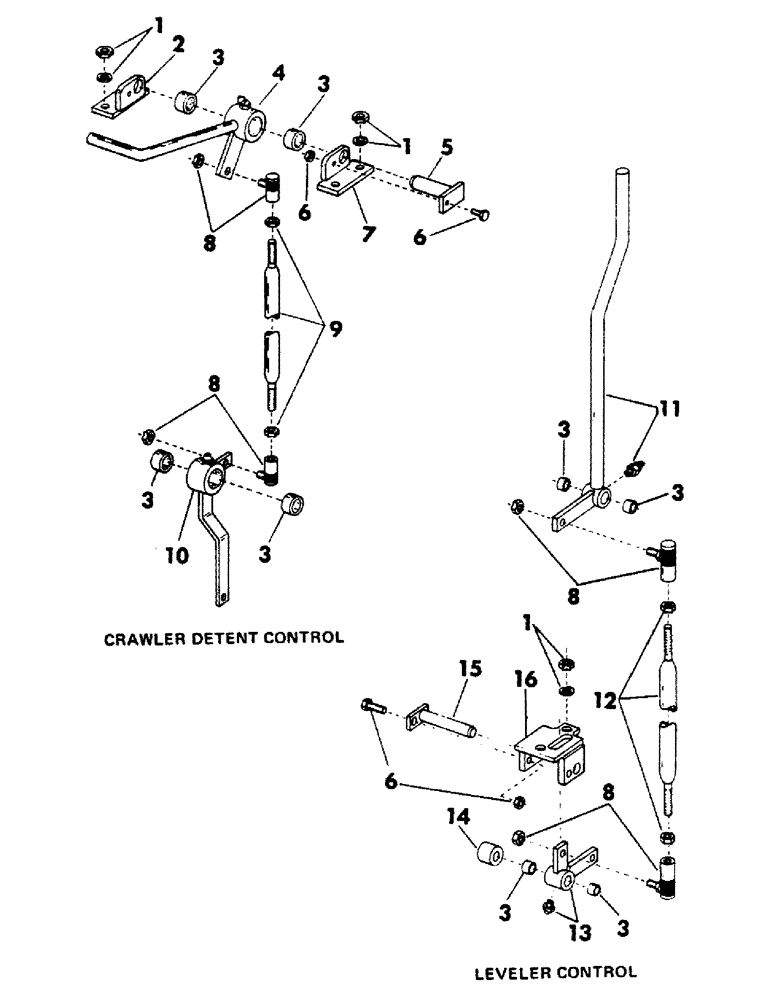

Запчасти Case 40BLC (296) - CRAWLER DETENT CONTROL AND LEVELER CONTROL, (USED WITH 30" HI-RISE ATTACHMENT) (05) - UPPERSTRUCTURE CHASSIS

1

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

S7379

WASHER

flat - 1/2"

4шт.

2

S218944

BRACKET ASSEMBLY

1шт.

3

A30586

NEEDLE BEARING

BEARING, needle

4шт.

4

S220630

HANDLE ASSEMBLY

1шт.

5

S218962

SHAFT ASSY.

SHAFT ASSEMBLY

1шт.

6

113-7

BOLT,Locking, 1/4" - 20 x 1/2", Gr 5, Full Thd

CPSW - 1/4" NC x 1-1/4" gr 5

1шт.

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

1шт.

7

S218943

BRACKET ASSEMBLY

1шт.

8

S215594

BALL

JOINT, ball

2шт.

231-2446

NUT,3/8"-24, GB

NUT, self locking

2шт.

9

S220636

EXCHANGE CONROD

ROD, connecting

1шт.

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

2шт.

10

S220634

BELLCRANK ASSEMBLY

1шт.

11

S506288

HANDLE ASSEMBLY

1шт.

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

12

S220637

ROD, CONNECTING

1шт.

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

2шт.

13

S220632

BELLCRANK ASSEMBLY

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

14

S87490

SPACER

1шт.

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC - (Not Illustrated)

1шт.

15

S217833

SHAFT ASSY.

SHAFT ASSEMBLY

1шт.

16

S220629

SUPPORT

ASSEMBLY

1шт.
