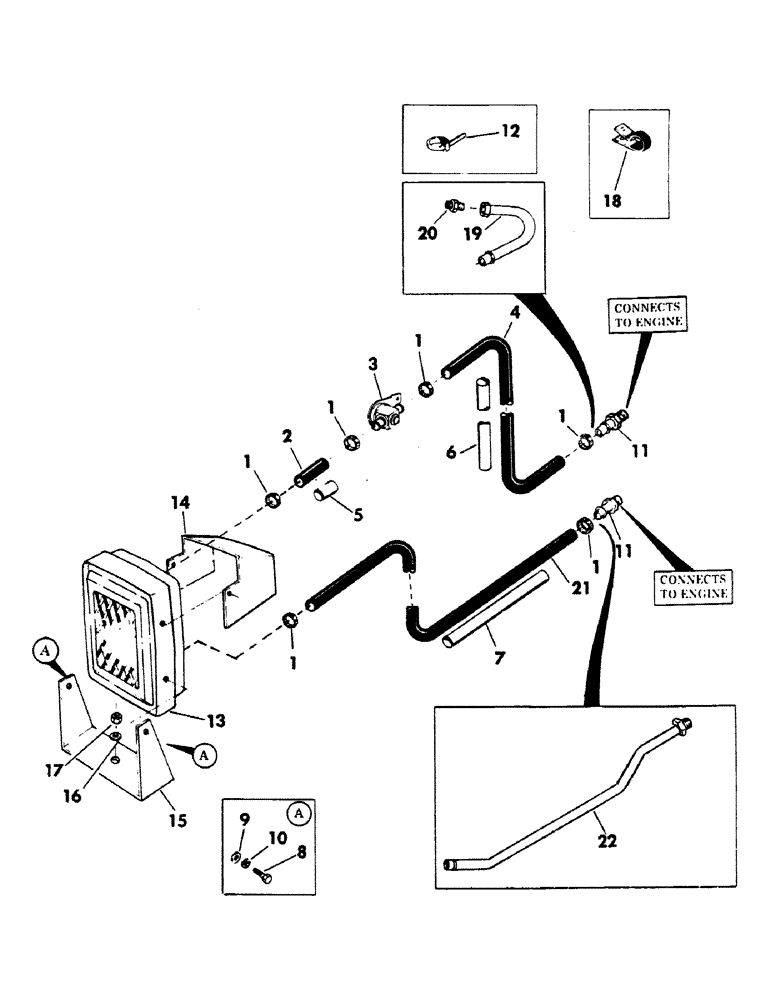

Запчасти Case 40BLC (290) - HEATER AND HOSES, (USED ON UNITS WITH SERIAL NUMBER 6275249 AND AFTER) (05) - UPPERSTRUCTURE CHASSIS

1

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP

6шт.

2

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" x 4" long

1шт.

3

S223937

VALVE

heater

1шт.

4

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" x 150" long - (With Detroit diesel engine)

1шт.

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" x 136" long - (With Case diesel engine)

1шт.

5

S113778

CONDUIT - (Bulk)

1шт.

6

S113778

CONDUIT - (Bulk) - (With Detroit diesel engine)

22"шт.

S113778

CONDUIT - (Bulk) - (With Case diesel engine)

18"шт.

7

S113778

CONDUIT - (Bulk) - (With Detroit diesel engine)

150шт.

S113778

CONDUIT - (Bulk) - (With Case diesel engine)

22"шт.

8

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

9

195-518

WASHER,1/4", SAE

flat - 1/4"

4шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

11

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

INSERT, hose - (With Detroit diesel engine)

2шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE

1шт.

13

HEATER, hot water - (For breakdown, see page 293)

1шт.

14

S237006

SHROUD, heater

1шт.

15

S513714

BRACKET, heater support

1шт.

16

195-104

WASHER,3/8"

flat - 7/16"

1шт.

17

131-206

NUT,3/8"-16

NUT, self locking - 3/8"

1шт.

18

R14668

CLAMP

4шт.

19

S232219

TUBE,0.62" OD x 3.06, 4.68" L

hydraulic - (With Case diesel engine)

1шт.

20

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - (5/8" tube) - 7/8" - 14 male x 3/8" NPT male - 37 degree flared - (With Case diesel engine)

1шт.

21

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" ID x 150" long - (With Detroit diesel engine)

150шт.

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" ID x 121" long - (With Case diesel engine)

121шт.

22

S231777

TUBE,0.62" OD x 3.85, 34.05" L

hydraulic - (With Case diesel engine)

1шт.
