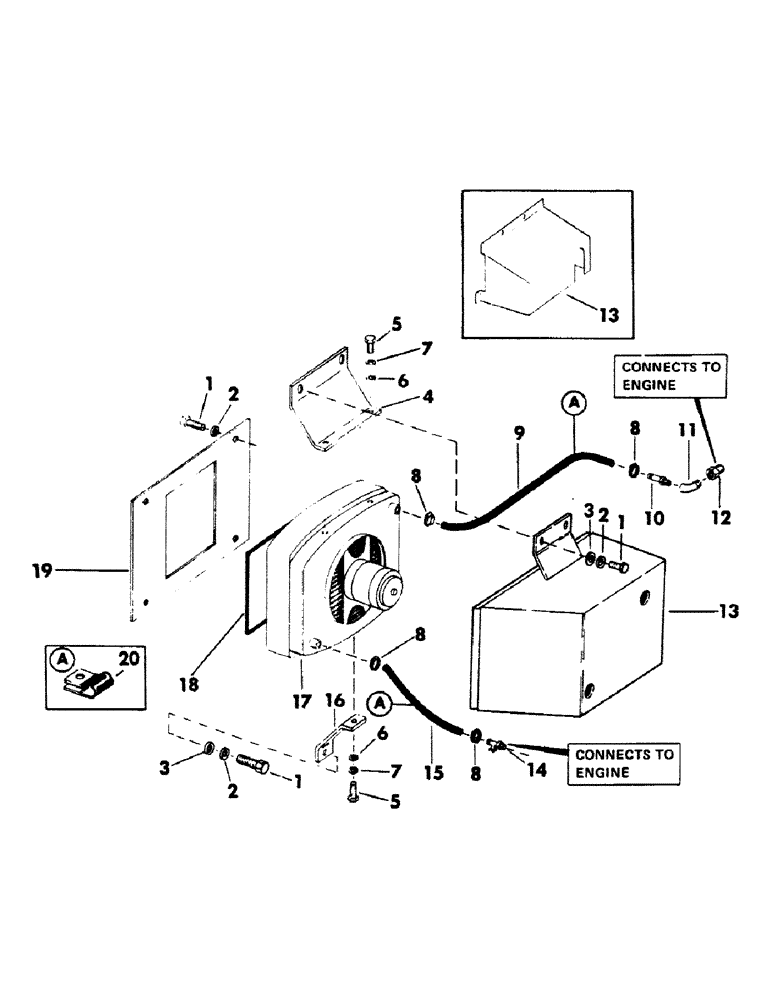

Запчасти Case 40BLC (288) - HEATER AND ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

CPSW - 3/8" NC x 1-3/4" gr 5

7шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

3

195-103

WASHER,5/16"

flat - 3/8"

3шт.

4

S219433

BRACKET, top mounting

1шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

6

195-516

WASHER,#12

flat - 1/4"

3шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

8

214-25

CLAMP

hose

4шт.

9

S49608

HOSE

low pressure - (Bulk) - 1 piece - 5/8" ID x 70" long

1шт.

10

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

ADAPTER, hose - 1/2" - 14 NPT x 5/8" ID hose

1шт.

11

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

90 degree - 1/2" - 14 NPT female x 1/2" - 14 NPT female

1шт.

12

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING, reducing - 1/2" - 14 NPT female x 3/4" - 14 NPT male

1шт.

13

S505728

SHIELD - (Used on units with serial number 450 thru 759) - (See insert)

1шт.

S606733

SHIELD

- (Used on units with serial number 760 and after)

1шт.

14

S83788

VALVE

shut off

1шт.

15

S49608

HOSE

low pressure (Bulk) - 1 piece - 5/8" ID x 90" long

1шт.

16

S91959

BRACKET, bottom mounting

1шт.

17

HEATER, hot water - (For breakdown, see page 293)

1шт.

18

S76711

SEAL

MOLDING, rubber - 36" long

1шт.

19

S219434

SHEET, cover

1шт.

20

R14668

CLAMP

2шт.
