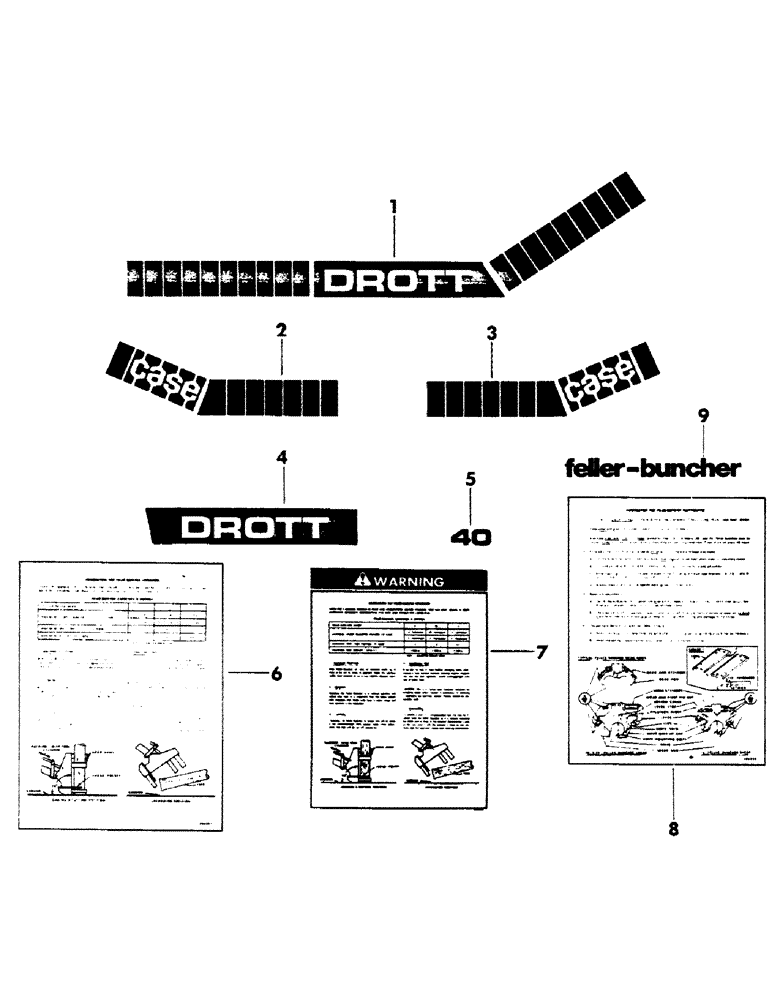

Запчасти Case 40BLC (282) - GRAPHIC PRODUCTS (05) - UPPERSTRUCTURE CHASSIS

1

321-5324

DECAL

right side and front - (Used on units with serial number 6275020 and after) - (Supersedes S954729)

1шт.

2

S954728

PRODUCT GRAPHIC

DECAL, left side and rear - (Used on units with serial number 6275020 and after)

1шт.

3

S954727

PRODUCT GRAPHIC

DECAL, right side and rear - (Used on units with serial number 6275020 and after)

1шт.

4

321-5328

DECAL, left side and Drott logo - (Used on units with serial number 6275020 and after) - (Supersedes S954730)

1шт.

5

S954806

PRODUCT GRAPHIC

DECAL, model number - (Used on units with serial number 6275020 and after)

2шт.

6

S506857

DECAL

Feller-Buncher operation - (Used on units with serial number 450 thru 6275019)

1шт.

7

S511517

DECAL

Feller-Buncher operation, - (Used on units with serial number 6275020 and after) - (Supersedes S509939)

1шт.

8

S506858

DECAL, Feller-Buncher maintenance

1шт.

9

321-5443

PRODUCT GRAPHIC

DECAL, Feller-Buncher - (Supersedes S954737)

1шт.
