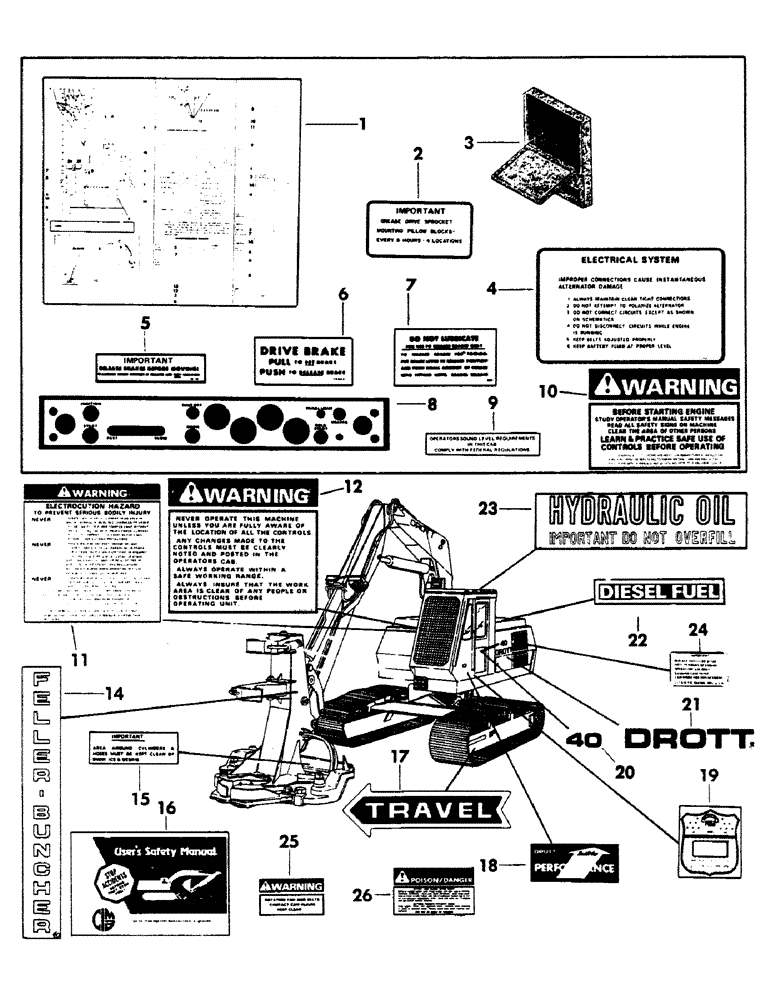

Запчасти Case 40BLC (280) - GRAPHIC PRODUCTS (05) - UPPERSTRUCTURE CHASSIS

1

S506415

INSTRUCTION

DECAL, lube and maintenance

1шт.

2

S216990

DECAL

pillow block greasing

1шт.

3

S511692

BOX

COMPARTMENT, manual

1шт.

S109782

RIVET

2шт.

4

321-5282

DECAL

battery caution - (Supersedes S205825)

1шт.

5

S80123

DECAL, brake release

1шт.

6

S79862

DECAL

drive brake

1шт.

7

S80124

DECAL, towing note

1шт.

8

S506469

DECAL

instrument panel

1шт.

9

S95214

DECAL, sound level

1шт.

10

321-3705

DECAL

operators warning - (Supersedes S86264)

1шт.

11

S510658

DECAL

electrocution hazard

1шт.

12

S229054

DECAL

operator warning

1шт.

13

S98969

PLATE

track information

1шт.

S23395

SCREW

drive - (Not illustrated)

4шт.

14

S504702

DECAL, Feller Buncher

2шт.

15

S87964

DECAL, Feller Buncher cleaning

3шт.

16

S406132

MANUAL, safety - (Supersedes S94087)

1шт.

17

S506884

INDICATOR

travel - (Left hand) - (Illustrated) - (Welded on)

1шт.

S506885

INDICATOR

travel - (Right hand) - (Not illustrated) - (Welded on)

1шт.

18

S221202

DECAL

performance

1шт.

19

S89871

DECAL

PCSA

1шт.

20

S506027

DECAL

40 - (5" high) - (Used on units with serial number 450 thru 6275019)

2шт.

21

S952323

DECAL

Drott - (5" high) - (Used on units with serial number 450 thru 6275019)

5шт.

22

321-2601

DECAL

diesel fuel - (Supersedes S70192)

1шт.

23

S80209

DECAL

hydraulic oil

1шт.

24

S89330

DECAL

oil filter - (Used on Case engines only)

1шт.

25

321-3596

DECAL

fan warning - (Supersedes S107837)

2шт.

26

321-2996

DECAL

battery warning - (Supersedes S105670)

1шт.
