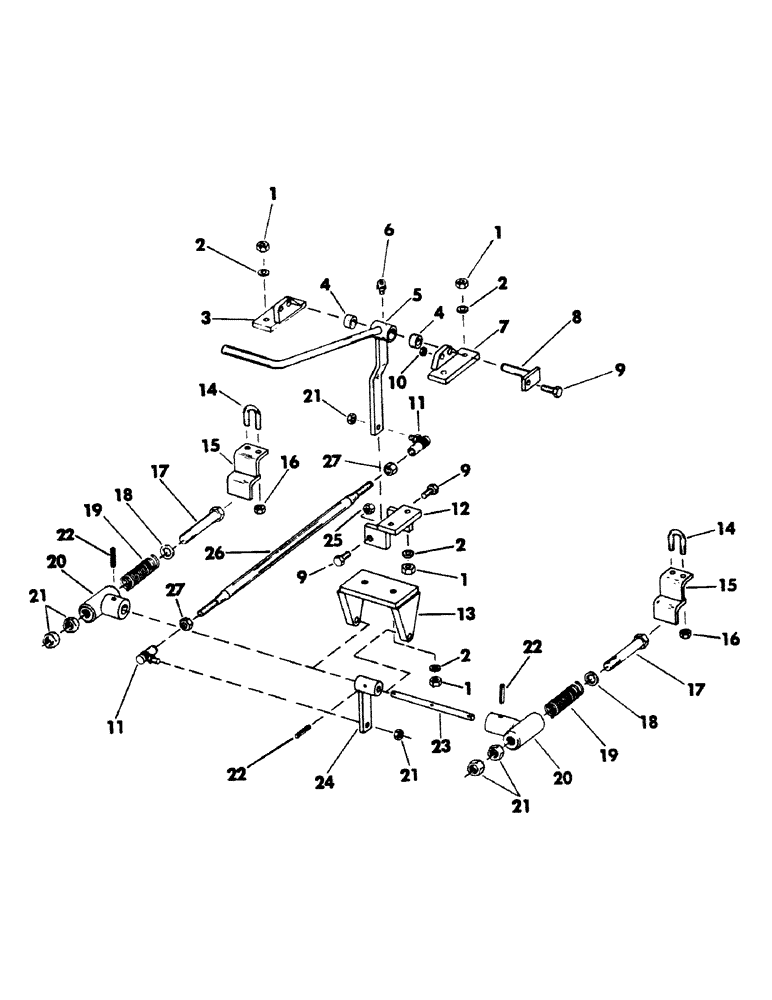

Запчасти Case 40BLC (120) - CRAWLER DETENT CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

8шт.

2

95-8

WASHER,1/2"

flat 1/2"

8шт.

3

S218944

BRACKET

1шт.

4

A30586

NEEDLE BEARING

BEARING, needle

2шт.

5

S220559

LEVER, crawler detent control - (Includes item 6)

1шт.

6

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

7

S218943

BRACKET

1шт.

8

S218962

SHAFT ASSY.

SHAFT

1шт.

9

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.

10

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

1шт.

11

S215594

BALL

JOINT

2шт.

12

S219342

BRACKET

1шт.

13

S218945

BRACKET

1шт.

14

S63280

BOLT, "U" - 3/8 NC

2шт.

15

S219355

STOP

2шт.

16

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

17

114-226

BOLT,Hex, 3/8" - 24 x 3-1/2", Gr 5

CPSW - 3/8" NC x 3-1/2" gr 5

2шт.

19

S13700

SPRING

2шт.

20

S206012

HOUSING

2шт.

195-41

WASHER,5/8"

(Used as spacers) (Not illustrated) 5/8"

2шт.

21

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NF

4шт.

22

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, roll - 15/64" x 1-1/4" long

3шт.

23

S91729

SHAFT

1шт.

24

S218960

BELLCRANK

1шт.

25

129-141

JAM NUT,Jam, 1/4"-20, G5

2шт.

26

S218559

ROD

connecting

1шт.

27

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

1шт.
