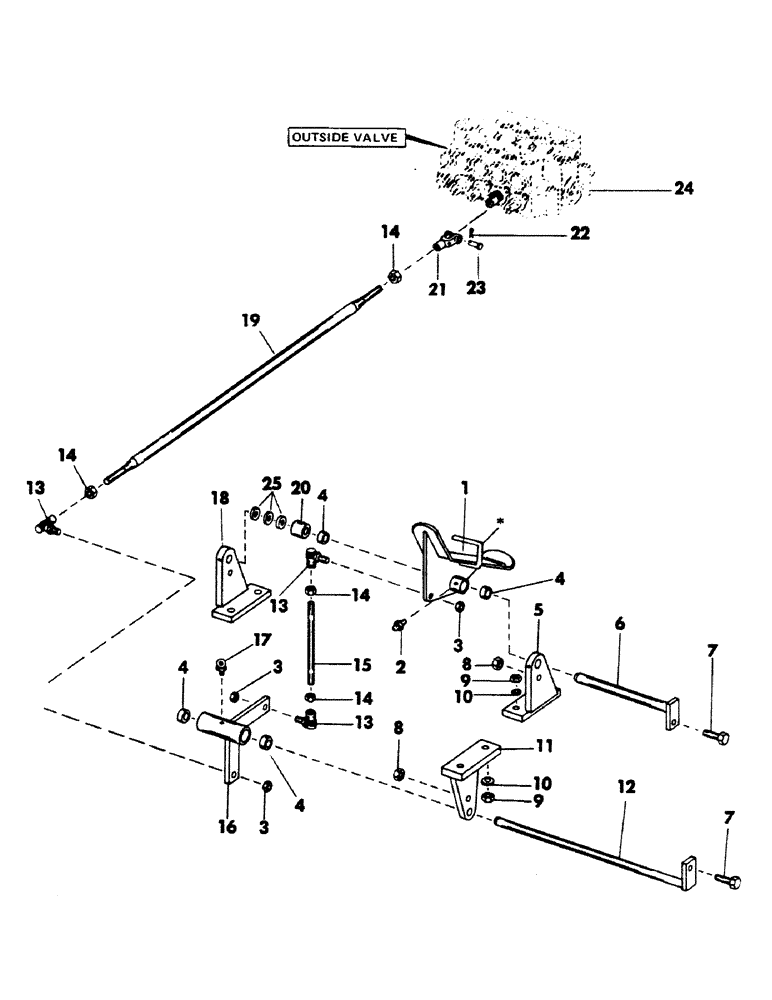

Запчасти Case 40BLC (118) - LEFT TRACK PEDAL CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S513896

PEDAL, left track control - (Includes item 2) - (Supersedes S504577)

1шт.

Change in listing

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

3

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NF

3шт.

4

A30583

GASKET

BEARING, needle

4шт.

5

S218947

BRACKET

1шт.

6

S218965

SHAFT ASSY.

SHAFT

1шт.

7

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

8

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

2шт.

9

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

10

95-8

WASHER,1/2"

flat 1/2"

4шт.

11

S218939

BRACKET

1шт.

12

S218961

SHAFT ASSY.

SHAFT

1шт.

13

S215594

BALL

JOINT, ball

3шт.

14

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

4шт.

15

S91681

ROD

connecting

1шт.

16

S220217

BELLCRANK - (Includes item 17)

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

18

S218938

BRACKET

1шт.

19

S220464

ROD, connecting

1шт.

20

S110843

TUBE

SPACER - (Supersedes S91212)

1шт.

Change in listing

1шт.

21

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

22

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

23

S10768

PIN

clevis - 3/8" x 1.016" grip length

1шт.

24

VALVE, 4-spool main control - (For breakdown, see page 260)

1шт.

25

195-41

WASHER,5/8"

(Used as spacer) 5/8"

3шт.
