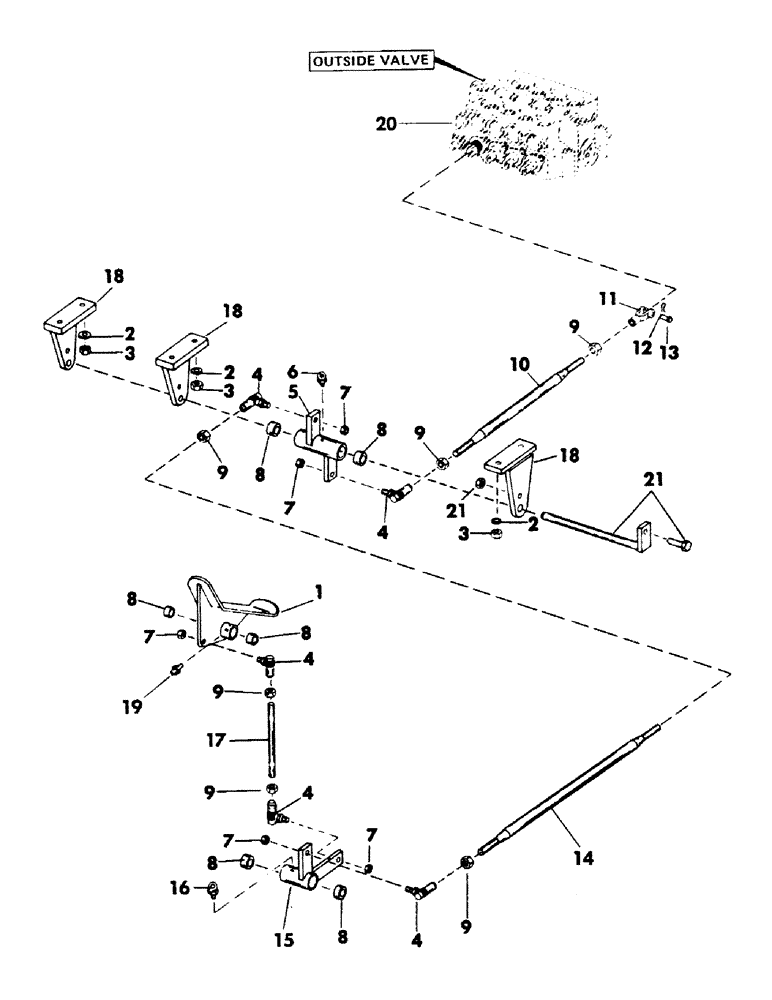

Запчасти Case 40BLC (094) - TOOL PEDAL CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S504577

PEDAL, tool control - (Includes item 19)

1шт.

2

95-8

WASHER,1/2"

flat 1/2"

6шт.

3

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

6шт.

4

S215594

BALL

JOINT, ball

5шт.

5

S220210

BELLCRANK - (Includes item 6)

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

6шт.

7

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NF

5шт.

8

A30586

NEEDLE BEARING

BEARING, needle

6шт.

9

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

6шт.

10

S219273

ROD

connecting

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

12

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

13

S10768

PIN

clevis - 3/8" x 1.016" grip length

1шт.

14

S219278

ROD

connecting

1шт.

15

S220211

ARM ASSY.

BELLCRANK - (Includes item 16)

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

17

S91681

ROD

connecting

1шт.

18

S218939

BRACKET

3шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

20

VALVE, 4-spool main control - (For breakdown, see page 260)

1шт.

21

S219444

SHAFT

1шт.

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

86625061

NUT,1/4"-20, GB

NUT - 1/4" NC

1шт.
