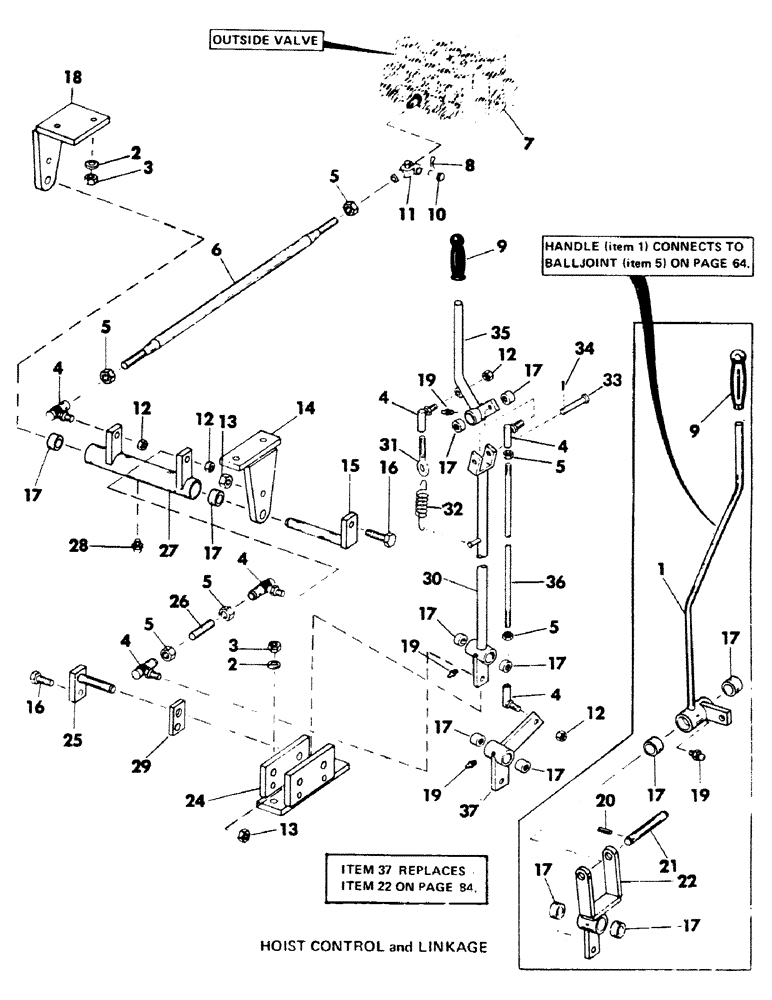

Запчасти Case 40BLC (090) - HOIST CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S506215

HANDLE

hoist control - (Includes item 19)

1шт.

2

95-8

WASHER,1/2"

flat 1/2"

4шт.

3

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

4

S215594

BALL

JOINT, ball

3шт.

5

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NC

4шт.

6

S218942

ROD

connecting

1шт.

7

VALVE, 4-spool main control - (For breakdown, see page 260)

1шт.

8

132-67

COTTER PIN,5/32" x 3/4"

PIN, cotter - 5/32" x 1" long

1шт.

9

S63411

HANDLE

GRIP, handle

1шт.

10

S10768

PIN

clevis - 3/8" x 1.016" grip length

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

12

231-2446

NUT,3/8"-24, GB

CPSW - 1/4" NC x 1-1/4" gr 5

3шт.

13

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

2шт.

14

S220261

BRACKET

1шт.

15

S217838

SHAFT

1шт.

16

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

17

A30586

NEEDLE BEARING

BEARING, needle

6шт.

18

S219366

BRACKET

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

20

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

21

S87535

SHAFT

1шт.

22

S220209

ARM ASSY.

BELLCRANK - (Includes item 23)

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

24

S219036

SUPPORT

1шт.

25

S218962

SHAFT ASSY.

SHAFT

1шт.

26

S87534

ROD

connecting

1шт.

27

S220219

BELLCRANK

1шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

29

S93485

SPACER

1шт.

30

S512999

HANDLE, lower - includes item 19

1шт.

31

S46857

BOLT, eye

1шт.

32

S49093

SPRING

1шт.

33

S113286

PIN

1шт.

34

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

35

S512998

HANDLE, upper - includes item 19

1шт.

36

S113164

ROD

1шт.

37

S235646

BELLCRANK - includes item 19

1шт.

38

S70739

GROMMET

- (Not illustrated)

3шт.
