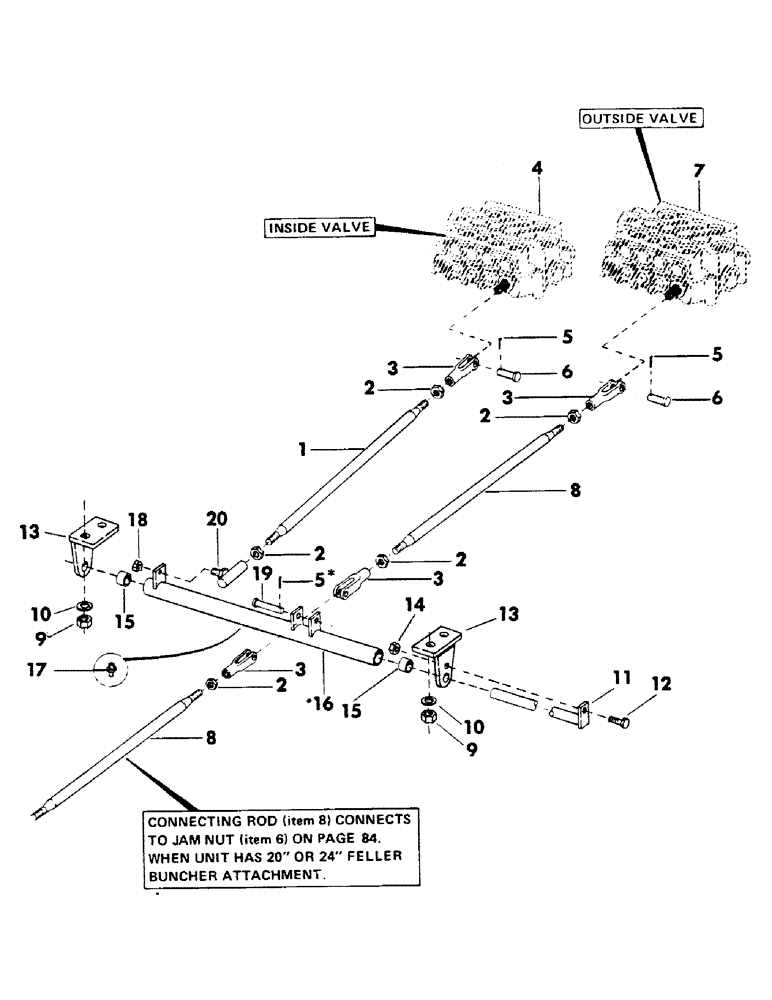

Запчасти Case 40BLC (086) - AUXILIARY CONTROL AND LINKAGE, (USED WITH 20" AND 24" FELLER BUNCHER) (05) - UPPERSTRUCTURE CHASSIS

1

S220463

PITMAN ASSY.

ROD, connecting

1шт.

2

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

5шт.

3

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

4шт.

4

VALVE, 4-spool main control - (For breakdown, see page 258)

1шт.

5

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

3шт.

6

S10768

PIN

clevis - 3/8" x 1.016" grip length

2шт.

7

VALVE, 4-spool main control - (For breakdown, see page 260)

1шт.

8

S81263

ROD

connecting

2шт.

9

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2"

4шт.

10

195-33

WASHER,1/2"

flat - 1/2"

4шт.

11

S220784

SHAFT

1шт.

12

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

13

S218939

BRACKET

2шт.

14

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

1шт.

15

A30586

NEEDLE BEARING

BEARING, needle

2шт.

16

S220783

BELLCRANK - (Includes item 17)

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

18

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NC

1шт.

19

S10777

PIN

clevis - 3/8" x 2.125" grip length

1шт.

20

S215594

BALL

JOINT, ball

1шт.
