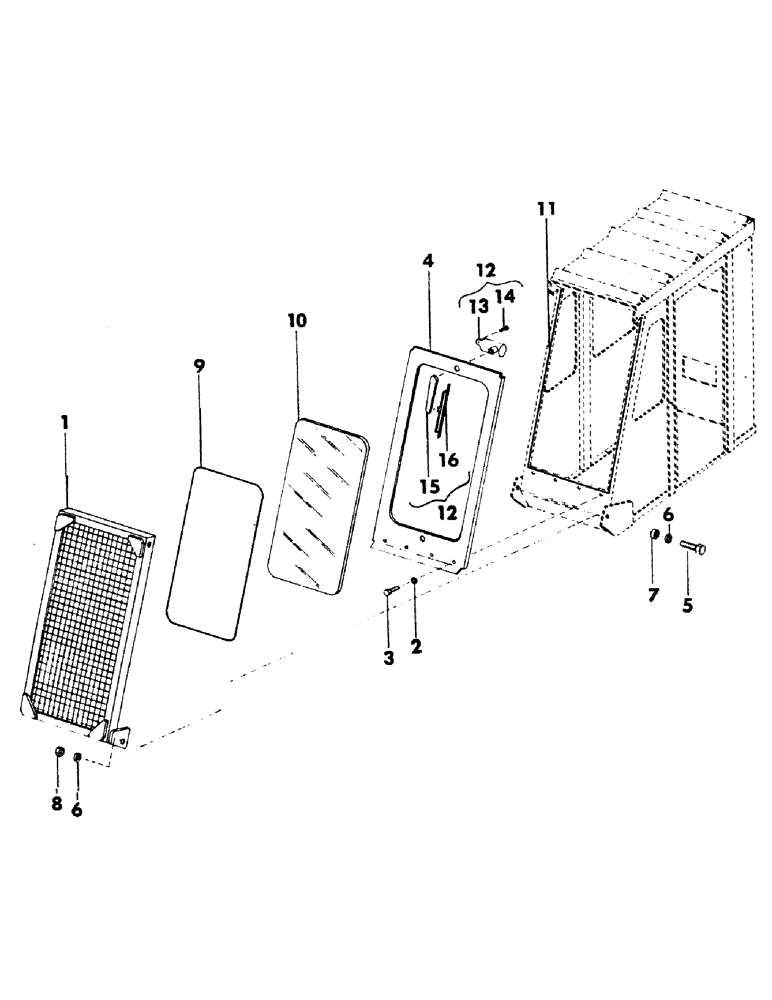

Запчасти Case 40BLC (070) - FRONT CAB WINDOW AND ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS

NSS

NOT SOLD SEPARAT

FRONT WINDOW ASSEMBLY

1шт.

1

S603441

GUARD, windshield

1шт.

2

195-33

WASHER,1/2"

flat - 1/2"

4шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

4

S603442

FRAME, windshield

1шт.

5

13-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

CPSW - 1" NC x 3" gr 5

4шт.

6

195-53

WASHER,1" x 2" x .134"

flat - 1/2"

8шт.

7

S94130

SPACER

4шт.

8

131-20

LOCK NUT,1"-8, GB

NUT, self locking - 1" NC

4шт.

9

S64704

SEAL

MOLDING, glass (Bulk) - 148" long

1шт.

10

NSS

NOT SOLD SEPARAT

GLASS

1шт.

11

S62996

STRIPPING, weather (Bulk) - 180" long

1шт.

12

S603452

WINDSHIELD WIPER

WIPER ASSEMBLY - (Optional) - (Includes items 13 thru 19)

1шт.

13

S75867

MOTOR

wiper - (Includes switch)

2шт.

14

187-1507

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW, self tapping - no. 10 x 3/8"

9шт.

15

F42721

ARM

wiper

2шт.

16

A10894

WINDSHIELD WIPER

BLADE, wiper

2шт.

17

S221301

HARNESS

WIRE - (Wiper motor to fuse block) - (Not illustrated)

1шт.

18

S77479

CLAMP,1/8", Insul, 1/4" Bolt

wire - (Not illustrated)

7шт.

19

223-15

FUSE,15 Amp, Type 3AG

- 15 amp - (Not illustrated)

1шт.
