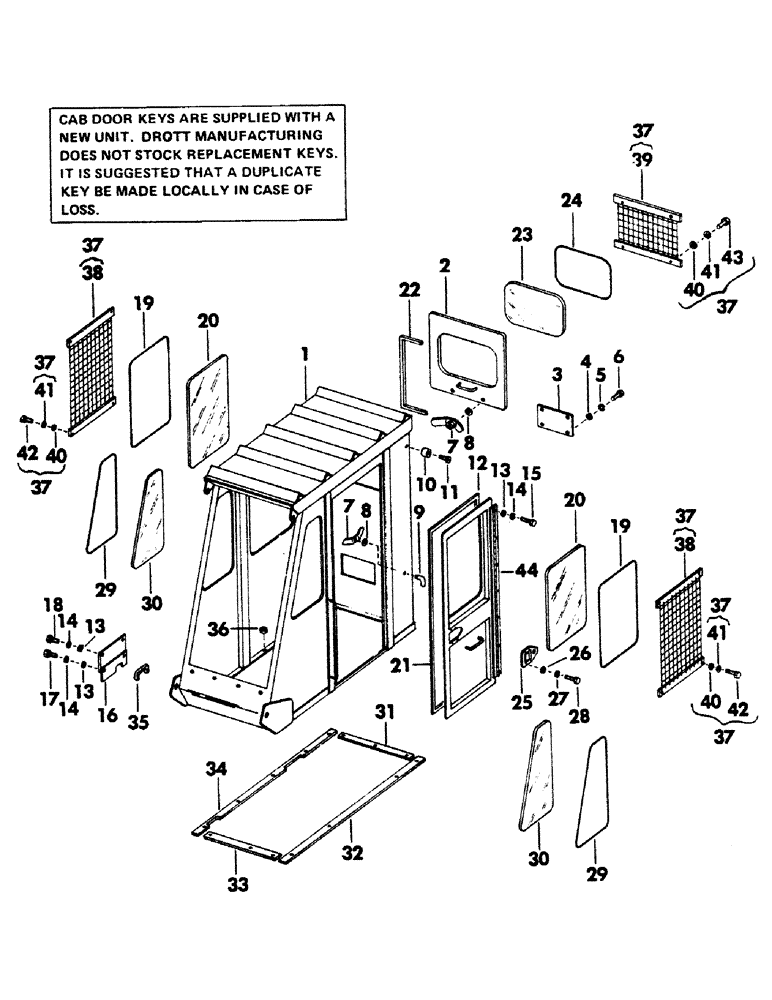

Запчасти Case 40BLC (068) - CAB AND ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS

S953106

CAB - complete (Includes items 1 thru 36 and items 1 thru 11 on pages 70 and 72)

1шт.

S953104

CAB - complete less glass and weather stripping - (Includes items 1 thru 18 and items 1 thru 8 on page 70)

1шт.

1

NSS

NOT SOLD SEPARAT

CAB, weldment

1шт.

Change in listing

1шт.

2

S506549

FRAME, rear window

1шт.

3

S94520

COVER - (Not used with cab heater)

1шт.

4

195-104

WASHER,3/8"

flat - - (Not used with cab heater) 3/8"

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Not used with cab heater) 3/8"

4шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Not used with cab heater Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

7

S221281

HANDLE

3шт.

8

195-33

WASHER,1/2"

flat - 1/2"

3шт.

9

S94142

LATCH

1шт.

10

S63621

BUMPER

rubber

2шт.

11

173-116

SCREW,Sl Rnd Hd, #12 - 24 x 1/2"

rd hd mach - no. 12 NC x 1/2"

2шт.

12

S603444

DOOR

1шт.

13

195-518

WASHER,1/4", SAE

flat - 1/4"

11шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

11шт.

15

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

7шт.

16

S221280

COVER

1шт.

17

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

18

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

19

S64704

SEAL

MOLDING, glass (Bulk) - 2 pieces - 98" long

1шт.

20

NSS

NOT SOLD SEPARAT

GLASS

2шт.

21

S62996

STRIPPING, weather (Bulk) - 180" long

1шт.

22

S62996

STRIPPING, weather - (Bulk) - 96" long

1шт.

23

NSS

NOT SOLD SEPARAT

GLASS

1шт.

24

S64704

SEAL

MOLDING, glass (Bulk) - 80" long

1шт.

25

S63183

LOCK

LATCH, door

1шт.

26

195-518

WASHER,1/4", SAE

flat - 1/4"

4шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

28

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

29

S64704

SEAL

MOLDING, glass (Bulk) - 2 pieces - 80" long

1шт.

30

NSS

NOT SOLD SEPARAT

GLASS

2шт.

31

S87616

STRIP, rubber

1шт.

32

S218166

STRIP

rubber

1шт.

33

S87617

STRIP, rubber

1шт.

34

S87620

STRIP, rubber

1шт.

35

S200069

SEAL

CHANNEL, rubber - (Bulk) - 5" long

1шт.

36

131-208

SPECIAL NUT,1/2"-13

NUT, self locking - 1/2" NC

15шт.

37

S603159

GUARD, window - (Optional) - (Includes items 39 thru 43)

1шт.

38

S221286

GUARD, side windows

2шт.

39

S221288

GUARD ASSY.

GUARD, rear window

1шт.

40

195-33

WASHER,1/2"

flat - 1/2"

12шт.

41

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

42

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

43

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

44

S221283

HINGE

door

1шт.
