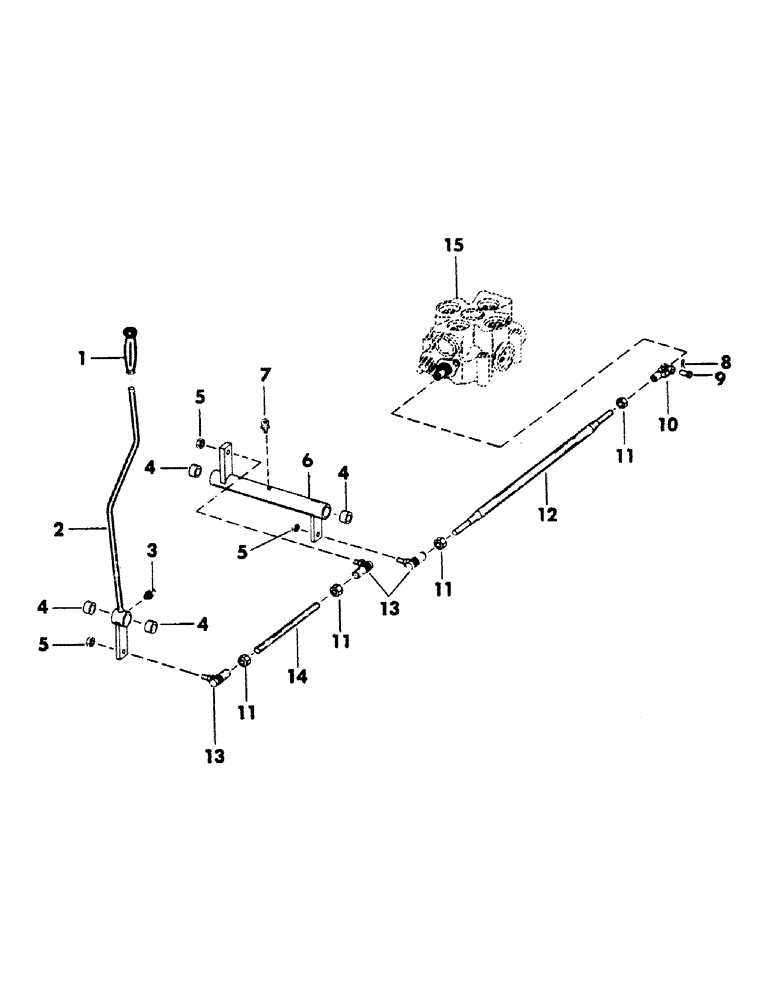

Запчасти Case 40BLC (145) - LEVELER CONTROL AND LINKAGE (04) - UNDERCARRIAGE

1

S63411

HANDLE

GRIP, handle

1шт.

2

S506213

HANDLE, leveler control

1шт.

3

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING, grease - 1/4" NPT x 65 degrees

1шт.

4

A30586

NEEDLE BEARING

BEARING, needle

4шт.

5

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NF

3шт.

6

S220216

BELLCRANK

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

8

132-67

COTTER PIN,5/32" x 3/4"

Pin, Split (Cotter), 5/32" x 3/4"

1шт.

9

S10768

PIN

clevis - 3/8" x 1.016" grip length

1шт.

10

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

11

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

4шт.

12

S219272

ROD, CONNECTING

1шт.

13

S215594

BALL

JOINT, ball

3шт.

14

S91680

ROD, connecting

1шт.

15

VALVE, 1-spool main - (For breakdown, see page 256)

1шт.
