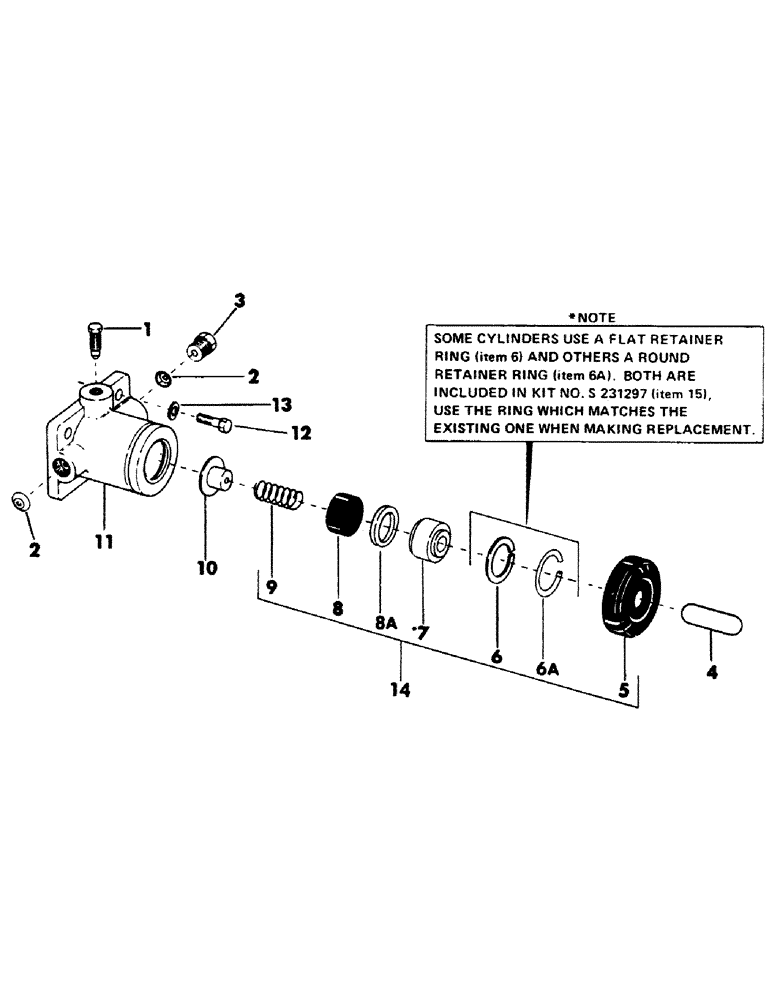

Запчасти Case 40BLC (143) - TRACK BRAKE CYLINDER, (USED ON UNITS WITH SERIAL NUMBER 883 AND AFTER) (04) - UNDERCARRIAGE

S231296

CYLINDER ASSY.

CYLINDER, track brake - 1" - Complete (Consists of items 1 thru 11) - (Supersedes S223208)

2шт.

1

S108035

SCREW

bleeder - (Supersedes S61746)

1шт.

2

R15270

HARDWARE

INSERT - 1/4" tube seat

2шт.

3

S61747

PLUG

- 1/4" tube seat

1шт.

4

S106714

ROD, push

1шт.

5

NSS

NOT SOLD SEPARAT

BOOT

1шт.

Part of Service Kit, P/N S231297

1шт.

6

NSS

NOT SOLD SEPARAT

RING, flat retainer - (Used in earlier cylinders) - (See note)

1шт.

Part of Service Kit, P/N S231297

1шт.

6a

NSS

NOT SOLD SEPARAT

RING, round retainer - (Used in later cylinders) - (See note)

1шт.

Part of Service Kit, P/N S231297

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON

1шт.

Part of Service Kit, P/N S231297

1шт.

8

NSS

NOT SOLD SEPARAT

CUP

1шт.

Part of Service Kit, P/N S231297

1шт.

8a

NSS

NOT SOLD SEPARAT

RING, back-up

1шт.

Part of Service Kit, P/N S231297

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING, return

1шт.

Part of Service Kit, P/N S231297

1шт.

10

S108478

STOP, spring - (Supersedes S61737)

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

14

S231297

KIT

service, Consists of: ref. nos. 5 thru 9, Supercedes S106715

1шт.

Change in listing

1шт.
