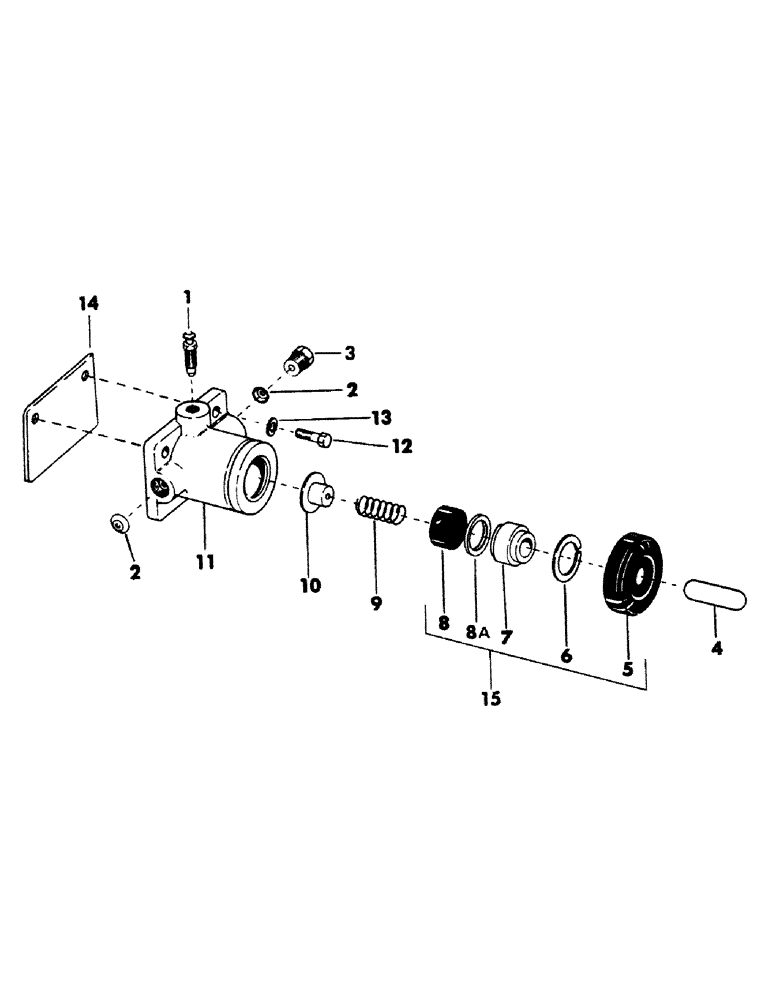

Запчасти Case 40BLC (142) - TRACK BRAKE CYLINDER, (USED ON UNITS WITH SERIAL NUMBER 450 THRU 882) (04) - UNDERCARRIAGE

S232060

CYLINDER

track brake - 3/4" - complete (Consists of items 1 thru 11) - (Supersedes S209804)

2шт.

1

S61746

SCREW

bleeder

1шт.

2

R15270

HARDWARE

INSERT - 1/4" tube seat - (Supersedes S61740)

2шт.

3

S61747

PLUG

- 1/4" tube seat

1шт.

4

S108918

ROD

push - (Supersedes S61731)

1шт.

5

NSS

NOT SOLD SEPARAT

BOOT

1шт.

6

NSS

NOT SOLD SEPARAT

RING, retainer

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON

1шт.

8

NSS

NOT SOLD SEPARAT

CUP

1шт.

8a

NSS

NOT SOLD SEPARAT

RING, back-up

1шт.

9

S108914

SPRING

return

1шт.

10

S108912

STOP, spring - (Supersedes S61737)

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

14

S96840

SPACER

4шт.

15

S108919

PACKAGE

KIT, service - (Consists of items 5 thru 8A)

1шт.
