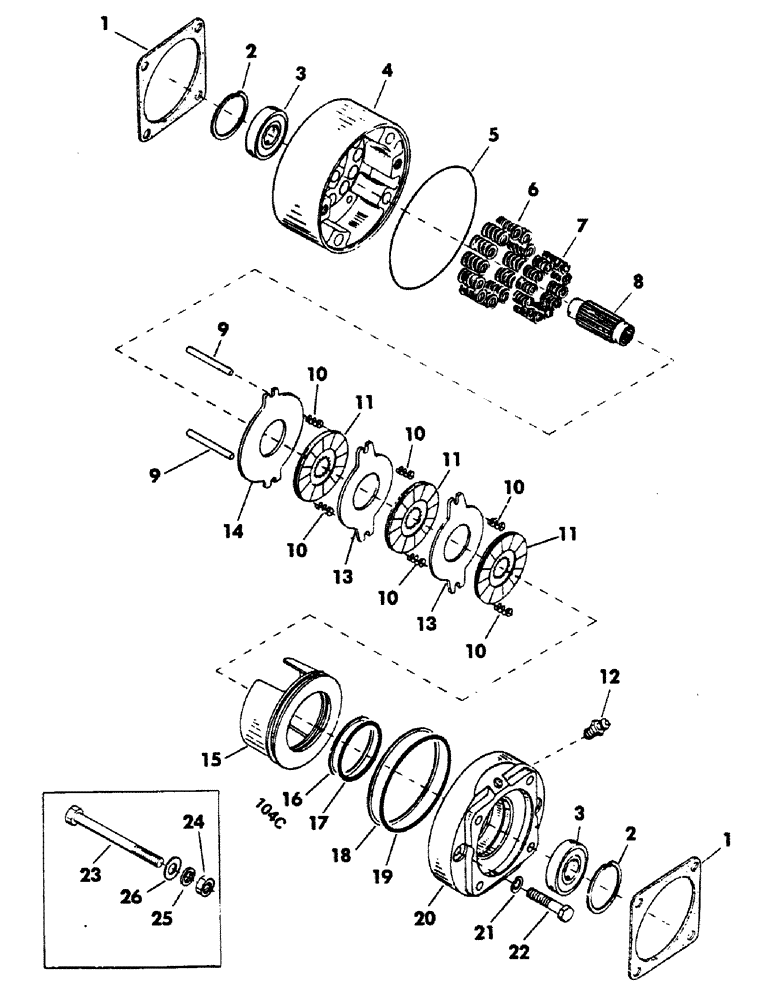

Запчасти Case 40BLC (140) - TRACK DRIVE BRAKE, (USED ON UNITS WITH SERIAL NUMBER 6275249 AND AFTER) (04) - UNDERCARRIAGE

S512396

BRAKE

track drive - (Consists of items 1 thru 22)

2шт.

1

S107753

GASKET

2шт.

2

D66413

SNAP RING,2.688", Int, #268

Ring, Snap, 2.688", Int, #268

2шт.

3

S107752

BALL BEARING,1.5748" ID x 2.6772" OD x 0.5906"

BEARING, ball

2шт.

4

S107751

HOUSING

1шт.

5

S107759

PACKING

1шт.

6

S107755

SPRING

compression

12шт.

7

S107754

SPRING

compression

12шт.

8

S111908

SHAFT

1шт.

9

S107760

PIN

2шт.

10

S107758

SPRING

compression

6шт.

11

S109455

DISC

rotating

3шт.

12

S107762

SCREW

bleeder

1шт.

13

S109456

DISC

stationary

2шт.

14

S107756

DISC

primary

1шт.

15

S107764

PISTON

1шт.

16

S107767

BACK-UP RING

back up

1шт.

17

S107766

O-RING,0.21" Thk x 3.725" ID, -343, Cl 5, 75 Duro

PACKING

1шт.

18

S107765

BACK-UP RING

back up

1шт.

19

S107763

O-RING

PACKING

1шт.

20

S107769

PLATE

1шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

CPSW - 1/2" NC x 2-1/4" gr 5

2шт.

23

113-2429

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

CPSW - 1/2" NC x 5-3/4" gr 5 - (Mounts track brake and track drive motor to brake adapter)

8шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

self locking - 1/2" NC

4шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

26

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

hardened

4шт.
