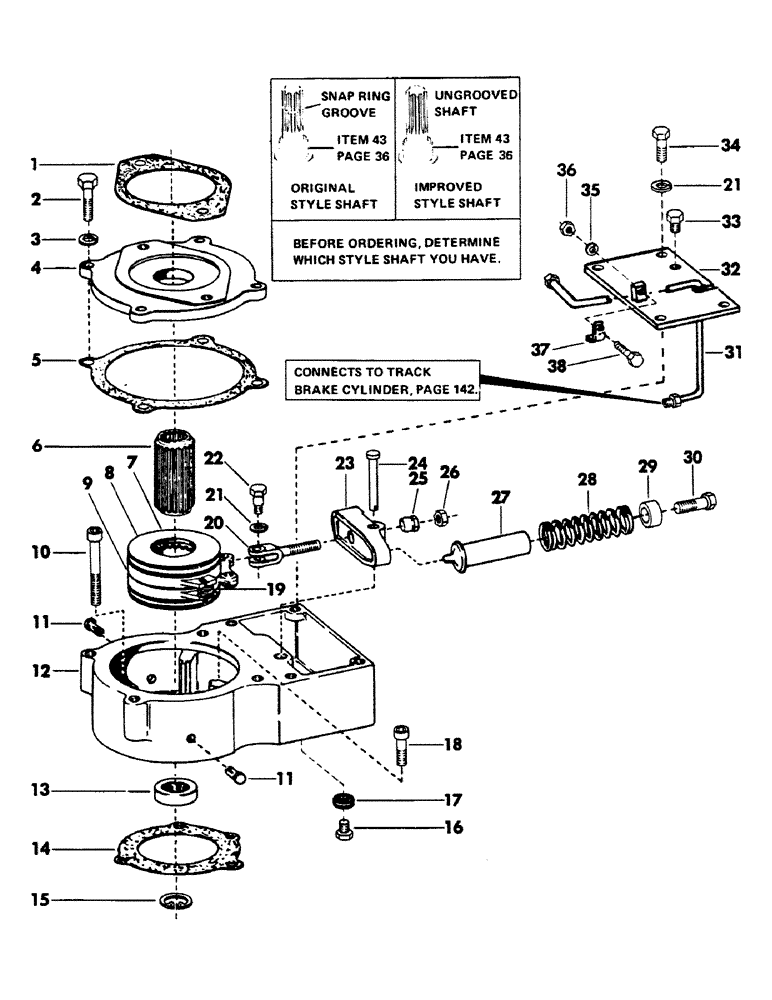

Запчасти Case 40BLC (136) - TRACK BRAKE, (USED ON UNITS WITH SERIAL NUMBER 450 THRU 882) (04) - UNDERCARRIAGE

S606006

BRAKE LINE

BRAKE, track drive - complete (Consists of items 1 thru 38) - (Right and left hand) - (Supersedes S57641M1)

2шт.

1

S203387

GASKET

mounting flange

1шт.

2

113-147

CPSW - 1/2" NC x 1-1/4" gr 5

4шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

S38006

COVER

AND MOUNTING FLANGE

1шт.

5

S203386

GASKET

cover

1шт.

6

S224667

COUPLING, BREAK AWAY

COUPLING, splined - (Improved style with internal snap ring groove)

1шт.

S208430

COUPLING

splined - (Original style without snap ring groove replaced by kit, item 39) (See note)

1шт.

7

S207618

BRAKE

ASSEMBLY - (Includes items 8, 9, and 19)

1шт.

8

S81615

GASKET

DISC, brake

2шт.

9

S68703

BALL

- (Between the two item 8's)

1шт.

10

165-123

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 3"

CPSW, self locking - 1/2" NC x 3" gr 8

1шт.

11

S79912

RIVET

for drain hole in housing

1шт.

12

S57642

HOUSING

brake - (Right and left hand)

1шт.

13

S65001

OIL SEAL

oil

1шт.

14

S80305

GASKET

brake housing

1шт.

15

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , for improved style coupling item 6 0.75", Int, #75

1шт.

B18206

SNAP RING,#87, Ext

Ring, Snap, (For original style shaft) - (Replaced by kit, item 39) - (See note) #87, Ext

1шт.

16

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

17

S75334

GROMMET,5/16" ID x 3/4" Groove Dia

rubber

1шт.

18

S89476

CPSW, nylok - gr 8

1шт.

19

S68705

SPRING

1шт.

20

S65002

FORK

YOKE, plain

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

22

S66646

BOLT,5/16" x 3/4"

shoulder

1шт.

23

S203385

LEVER

1шт.

24

S61970

PIN

clevis - 1/2" x 2.516" grip length

1шт.

25

S64911

NUT

ball - seat

1шт.

26

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

1шт.

27

S209803

STOP

spring

1шт.

28

S210158

SPRING

1шт.

29

S80879

SPACER

1шт.

30

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

31

S210281

LINE

hydraulic - (Includes grommet)

1шт.

32

S210312

COVER

1шт.

33

222-1064

PLUG

- 5/8" SAE

1шт.

34

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

36

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

37

A38799

CLAMP

1шт.

38

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

39

S607927

SHAFT

KIT, shaft - (Includes shaft item on page 34, splined coupling item 6, and snap ring item 15) - (Supersedes S208430 and S60206)

1шт.
