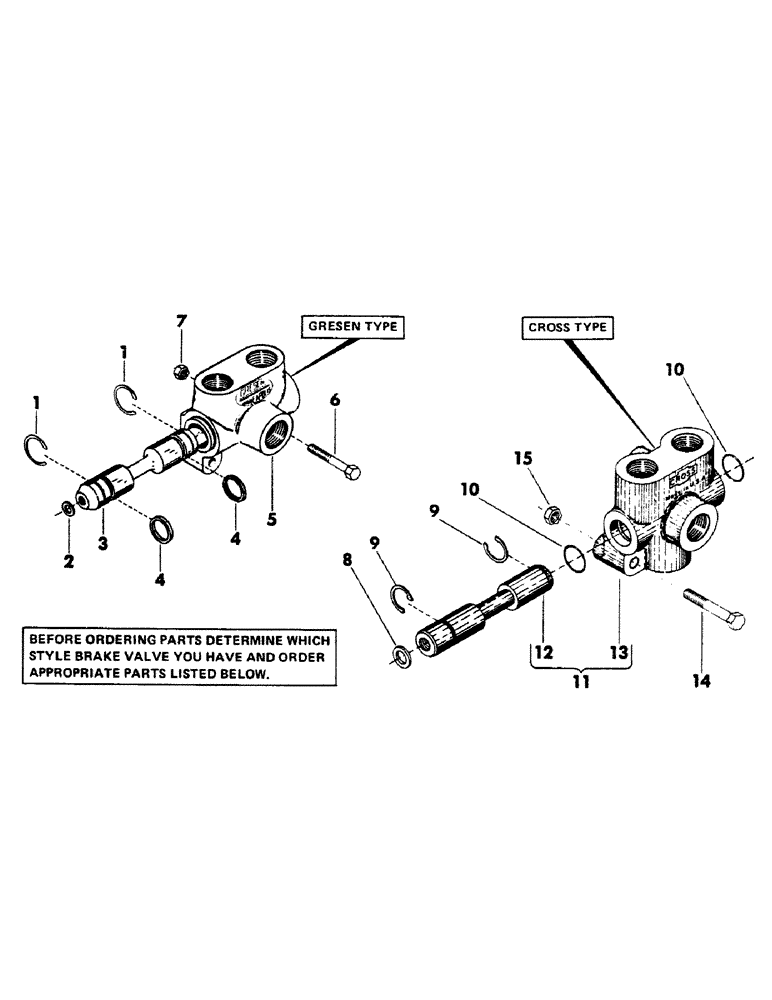

Запчасти Case 40BLC (134) - TRACK BRAKE VALVE (04) - UNDERCARRIAGE

S39280

VALVE

track brake - (Gresen) - complete (Consists of items 1 thru 5)

1шт.

1

T13433

RING

snap

2шт.

2

192-401

LOCK WASHER,3/8"

3/8"

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

D51528

SEAL

quad ring

2шт.

5

NSS

NOT SOLD SEPARAT

HOUSING, valve

1шт.

6

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Mounts track brake valve Hex, 5/16"-18 x 2 1/2", G5

2шт.

7

231-1445

NUT,5/16"-18, GB

NUT, self locking - 5/16" NC

2шт.

S39280

VALVE

track brake - (Cross) - complete (Consists of items 8 thru 13)

1шт.

8

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

9

T13433

RING

snap

2шт.

10

D36830

RING

SEAL, spool

2шт.

11

S105745

SPOOL AND BODY ASSEMBLY - (Includes items 12 and 13)

1шт.

12

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

13

NSS

NOT SOLD SEPARAT

BODY

1шт.

14

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Mounts track brake valve Hex, 5/16"-18 x 2 1/2", G5

2шт.

15

231-1445

NUT,5/16"-18, GB

NUT, self locking - 5/16" NC

2шт.
