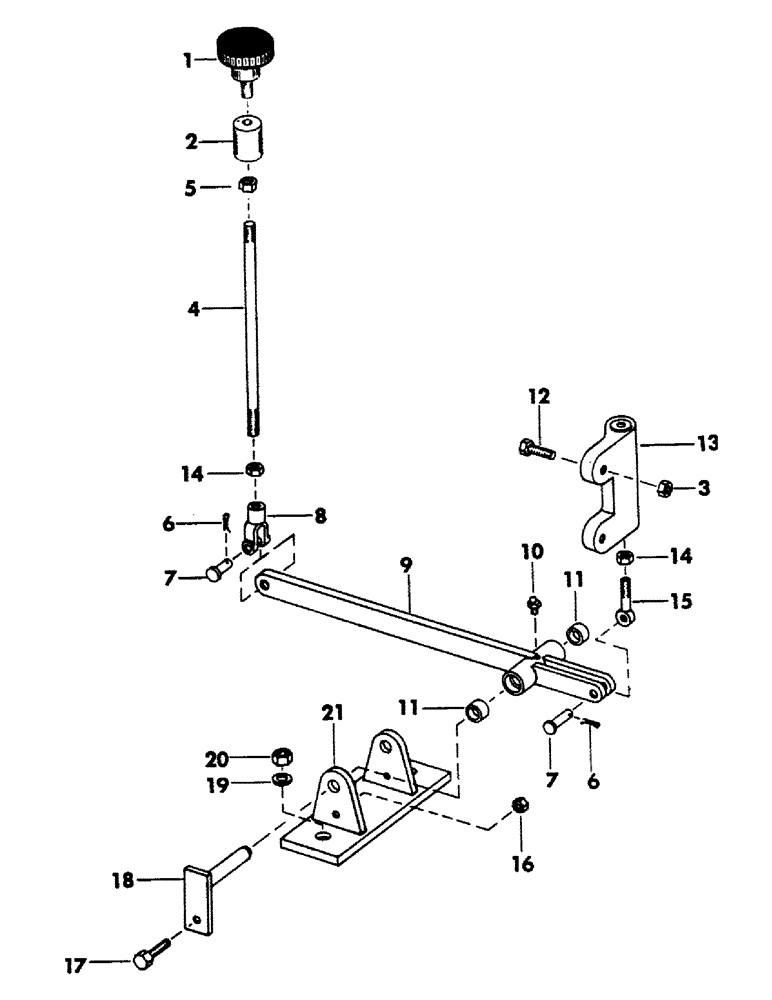

Запчасти Case 40BLC (132) - TRACK BRAKE VALVE AND CONTROL LINKAGE (04) - UNDERCARRIAGE

1

T36607

BALL KNOB

KNOB

1шт.

2

S93329

COUPLING

1шт.

3

231-1445

NUT,5/16"-18, GB

NUT, self locking - 5/16" NC

2шт.

4

S93328

ROD

1шт.

5

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

1шт.

6

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

7

S10739

CLEVIS PIN

PIN, clevis - 5/16" x .953" grip length

2шт.

8

S85426

YOKE

1шт.

9

S220300

BELLCRANK

1шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

11

A30586

NEEDLE BEARING

BEARING, needle

2шт.

12

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

13

VALVE, track brake - (For breakdown, see page 134)

1шт.

14

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

15

S90657

BOLT, eye

1шт.

16

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

17

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

18

S218962

SHAFT ASSY.

SHAFT

1шт.

19

195-530

WASHER,7/16"

flat - 1/2"

2шт.

20

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

21

S220309

BRACKET

1шт.
