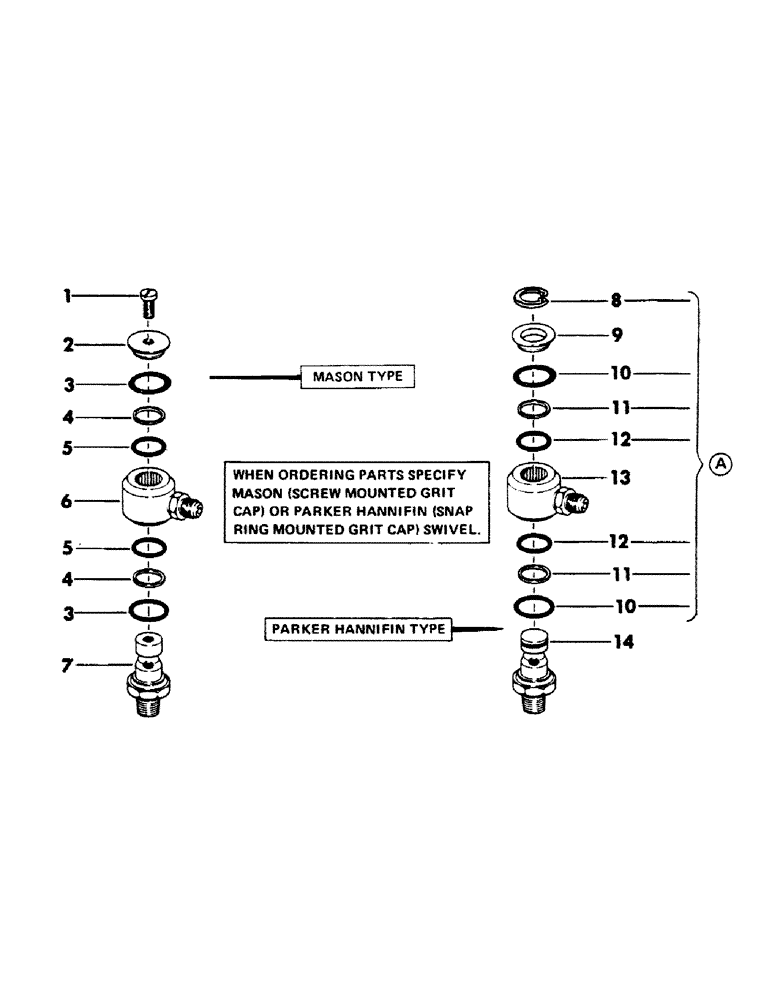

Запчасти Case 40BLC (131) - TRACK SERVICE BRAKE SWIVEL (04) - UNDERCARRIAGE

S209351

FITTING

SWIVEL, track brake (Mason) - complete, Consists of: ref. nos. 1 thru 7

1шт.

Change in listing

1шт.

1

71-410

SCREW

fillister head - No. 10 NC x 3/8"

1шт.

Part of Track Brake Swivel, Mason, P/N S209351

1шт.

2

S7989

CAP

grit

1шт.

Part of Track Brake Swivel, Mason, P/N S209351

1шт.

3

S5709

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - .737" ID x .937" OD

2шт.

Part of Track Brake Swivel, Mason, P/N S209351

1шт.

4

S80212

WASHER

RING, back up

2шт.

Part of Track Brake Swivel, Mason, P/N S209351

1шт.

5

S6478

SEAL

"O" RING - .612" ID x .812" OD

2шт.

Part of Track Brake Swivel, Mason, P/N S209351

1шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

Change in listing

1шт.

Part of Track Brake Swivel, Mason, P/N S209351

1шт.

7

NSS

NOT SOLD SEPARAT

STEM

1шт.

Change in listing

1шт.

Part of Track Brake Swivel, Mason, P/N S209351

1шт.

S209351

FITTING

SWIVEL, track brake (Parker Hannifin) - complete, Consists of: ref. nos. 8 thru 14

1шт.

8

RING, snap

1шт.

Part of Track Brake Swivel, Parker Hannifin, P/N S209351

1шт.

Part of Service Kit, P/N S95177

1шт.

9

NSS

NOT SOLD SEPARAT

CAP, grit

1шт.

Part of Track Brake Swivel, Parker Hannifin, P/N S209351

1шт.

10

"O" RING

2шт.

Part of Track Brake Swivel, Parker Hannifin, P/N S209351

1шт.

Part of Service Kit, P/N S95177

1шт.

11

RING, back up

2шт.

Part of Track Brake Swivel, Parker Hannifin, P/N S209351

1шт.

Part of Service Kit, P/N S95177

1шт.

12

NSS

NOT SOLD SEPARAT

"O" RING

1шт.

Part of Track Brake Swivel, Parker Hannifin, P/N S209351

1шт.

Part of Service Kit, P/N S95177

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

Part of Track Brake Swivel, Parker Hannifin, P/N S209351

1шт.

14

NSS

NOT SOLD SEPARAT

STEM

1шт.

Change in listing

1шт.

Part of Track Brake Swivel, Parker Hannifin, P/N S209351

1шт.

S95177

KIT

service, Consists of: ref. nos. 8, 10, 11 and 12

1шт.

Change in listing

1шт.
