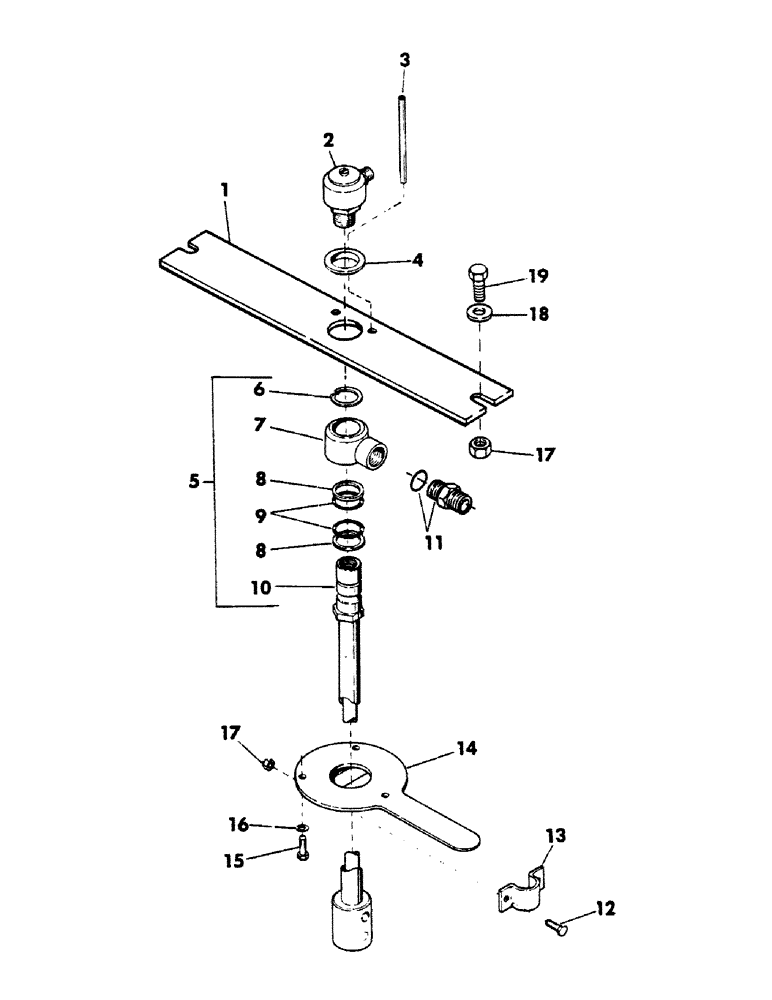

Запчасти Case 40BLC (128) - INNER SWIVEL, (USED WITH TRACK BRAKE AND TWO SPEED DRIVE) (04) - UNDERCARRIAGE

1

S209252

BRACKET

1шт.

Ref. item #1 S209252 should read S209352 by bb 5/9/96

1шт.

2

REF

INSTRUCTION

SWIVEL - (For breakdown, see page 131)

1шт.

3

138-169

LOCK PIN,5/16" x 4", Slotted

2шт.

4

S71802

NYLON BEARING,0.756" ID x 1.187" OD x 0.375"

Nylon

1шт.

5

S229478

SWIVEL CONNECTION

Inner - consists of items 6 thru 10

1шт.

6

C13513

RING

Retaining

1шт.

7

S111313

SLEEVE

Swivel

1шт.

8

A35698

BACK-UP RING

2шт.

9

S6480

O-RING,0.737" ID x 0.943" OD x 0.103"

.737" ID x .939" OD

2шт.

10

S229479

TUBE,0.746" OD x 23.05" L

ASSEMBLY, inner swivel

1шт.

11

S95069

FITTING

CONNECTOR - (3/8" tube) - 7/16"-20 male x 9/16-18 male - 37 degree flared

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

A55980

CLAMP

1шт.

14

S237399

LARGE PLATE

PLATE, LARGE Lower swivel mounting

1шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

17

131-52

NUT,3/8"-16, GC

4шт.

18

194-103

WASHER, flat - 3/8"

4шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.
