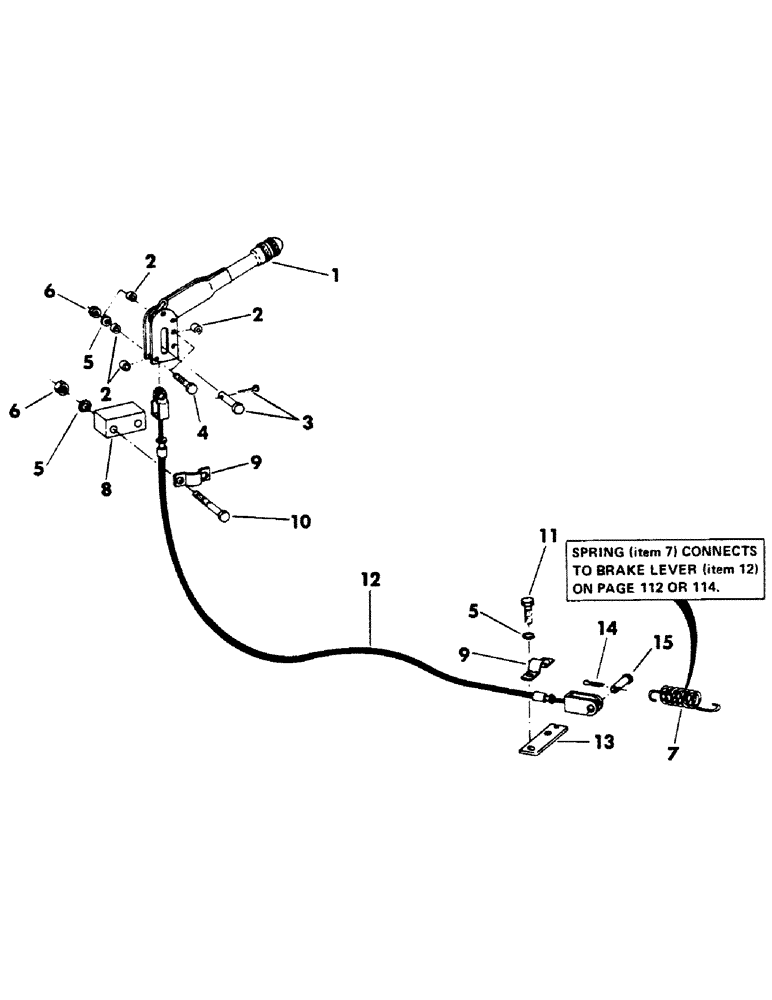

Запчасти Case 40BLC (116) - SWING BRAKE CONTROL (04) - UNDERCARRIAGE

1

S26639

LEVER

hand brake - (Includes item 3 and (3) of item 2)

1шт.

2

S48851

SPACER

hand brake - (2 used with brake lever and 2 used to space lever from mounting)

4шт.

3

S10742

PIN

clevis - 5/16" x 1.266" grip length

1шт.

4

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

7

S202938

SPRING

valve return

1шт.

8

S64927

SPACER

1шт.

9

A55980

CLAMP

2шт.

10

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

CPSW - 3/8" NC x 3/4" gr 5

2шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

S33995

CABLE

brake

1шт.

13

S68977

CLAMP

SPACER

1шт.

14

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

15

S10715

PIN

clevis - 1/4" x 1.851" grip length

1шт.
