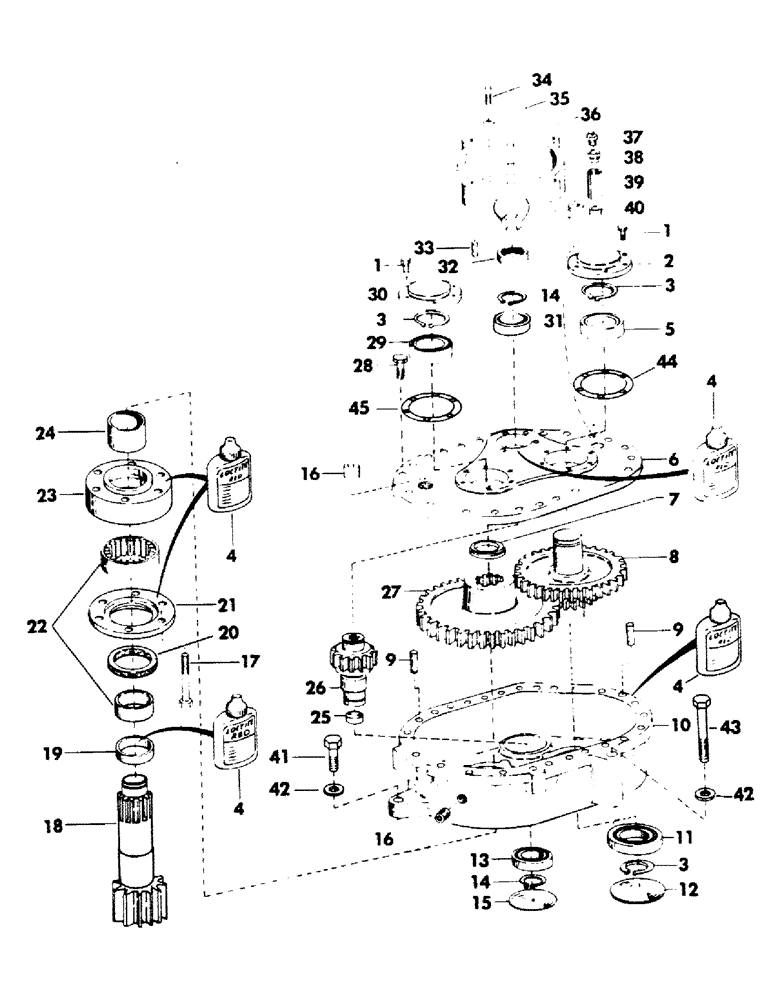

Запчасти Case 40BLC (108) - SWING REDUCER, (USED ON UNITS WITH SERIAL NUMBER 804 THRU 6275248) (04) - UNDERCARRIAGE

S606781

REDUCER

SWING REDUCER AND BRAKE HOUSING - complete (Consists of items 1 thru 40)

1шт.

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S402194

CAP

bearing

1шт.

3

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

3шт.

4

S96077

SEAL

- 10 CC bottle - (Red) - replaces gaskets - (Substitutes must not be used)

1шт.

5

S64314

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

BEARING, ball

1шт.

6

A603758

COVER, gear case

1шт.

7

S214014

SPACER

, Serial Range: bearing-gear

1шт.

8

S603733

GEAR

cluster

1шт.

9

S64319

CALIPER

DOWEL

2шт.

10

S606331

CASE

gear

1шт.

11

40035

SHAFT,1.5748" ID x 3.5433" OD x 0.9055"

ball

1шт.

12

41-58

PLUG,Exp, 3 3/4"

expansion

1шт.

13

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING, ball

1шт.

14

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

15

41-48

PLUG,Exp, 3"

expansion

1шт.

16

221-843

PLUG,Hex Soc, 3/8"-18

pipe - 3/8" NPT - (Socket head)

3шт.

17

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

CPSW - 5/8" NC x 3-1/4" gr 8

6шт.

18

S606286

SHAFT

AND GEAR, output

1шт.

19

S225232

OIL SEAL

RING

1шт.

20

S98415

OIL SEAL

oil

1шт.

21

S508460

RETAINER

oil seal

1шт.

22

S98416

ROLLER BEARING,5.12" OD x 1.63"

BEARING AND RACE ASSEMBLY

1шт.

23

S508461

RETAINER

roller bearing

1шт.

24

S225231

SPACER

1шт.

25

41-1015

PLUG,Cup, 15/16"

expansion

1шт.

26

S506736

PINION

AND SHAFT, input

1шт.

27

S603736

GEAR

drive

1шт.

28

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

23шт.

29

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

30

S214012

CAP

bearing

1шт.

31

S94598

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, ball

1шт.

32

S64311

OIL SEAL

oil

1шт.

33

S64915

DOWEL

1шт.

34

165-125

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 1 1/4"

CPSW - 3/8" NC x 1-1/4" - (Socket head nylok)

3шт.

35

F18408

WASHER

3шт.

36

S603824

HOUSING

swing brake

1шт.

37

L33264

BREATHER

VENT, breather

1шт.

38

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

- 3/8" NPT male x 1/8" NPT female

1шт.

39

S216625

TUBE,60" L

oil breather

1шт.

40

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" NPT x 1" long

1шт.

41

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

CPSW - 7/8" NC x 2" gr 8

1шт.

42

S92341

WASHER

flat - 7/8" - (Hardened steel)

3шт.

43

26-1492

BOLT,Hex, 7/8" - 9 x 5-3/4", Gr 8

CPSW - 7/8" NC x 5-3/4" gr 8

2шт.

44

S103261

GASKET

1шт.

Added listing

1шт.

45

S85842

GASKET

1шт.

Added listing

1шт.
