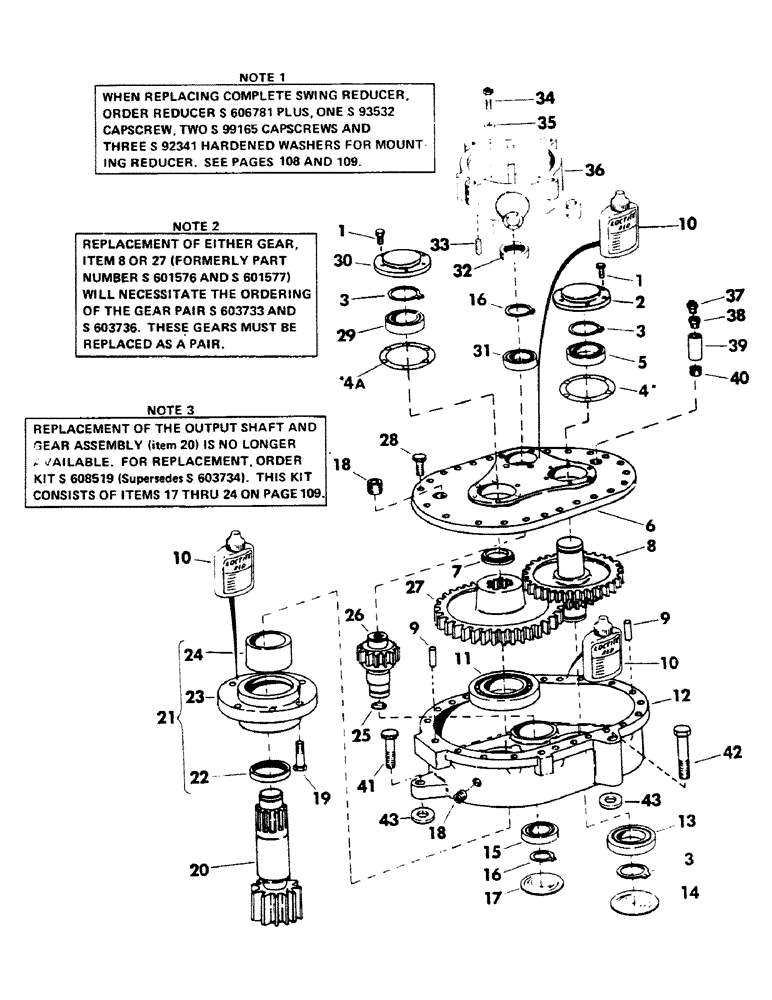

Запчасти Case 40BLC (106) - SWING REDUCER, (USED ON UNITS WITH SERIAL NUMBER 479 THRU 803) (04) - UNDERCARRIAGE

REDUCER, brake housing and swing - complete - (See note 1) - (See page 103)

1шт.

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S402194

CAP

bearing

1шт.

3

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

3шт.

4

S103261

GASKET

1шт.

Change in listing

1шт.

4a

S85842

GASKET

1шт.

Added listing

1шт.

5

S64314

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

BEARING, ball

1шт.

6

S603758

COVER

gear case

1шт.

7

S214014

SPACER

, Serial Range: bearing-gear

1шт.

8

S603733

GEAR

cluster - (See note 2)

1шт.

9

S64319

CALIPER

DOWEL - 3/8" diameter

2шт.

10

S96077

SEAL

- 10 CC bottle - (Red) - (Substitutes must not be used) - (Replaces cover, reducer support, and swing brake housing gaskets)

3шт.

11

S64321

BALL BEARING,70mm ID x 110mm OD x 20mm W

BEARING, ball

1шт.

12

S55373

CASE, gear

1шт.

13

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

ball

1шт.

14

41-58

PLUG,Exp, 3 3/4"

expansion

1шт.

15

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING, ball

1шт.

16

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

17

41-48

PLUG,Exp, 3"

expansion

1шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

pipe - 3/8" NPT - (Socket head)

4шт.

19

113-2410

SCREW

CPSW - 1/2" NC x 1-3/4" gr 8 - (Nylok) - (Special DMC)

6шт.

20

SHAFT AND GEAR, output - (See note 3) - (Order Kit S608519)

1шт.

21

S603774

HOUSING

- (Includes items 22 thru 24)

1шт.

22

S221773

OIL SEAL

oil

1шт.

23

NSS

NOT SOLD SEPARAT

SUPPORT, reducer

1шт.

24

S94604

BUSHING

1шт.

25

41-1015

PLUG,Cup, 15/16"

expansion

1шт.

26

S506736

PINION

AND SHAFT, input

1шт.

27

S603736

GEAR

drive - (See note 2)

1шт.

28

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

23шт.

29

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

30

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

CAP, bearing

1шт.

31

S94598

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, ball

1шт.

32

S64311

OIL SEAL

oil

1шт.

33

S64915

DOWEL

1шт.

34

165-125

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 1 1/4"

CPSW - 3/8" NC x 1-1/4" - (Socket head nylok)

3шт.

35

F18408

WASHER

3шт.

36

S603824

HOUSING

brake

1шт.

37

L33264

BREATHER

VENT, breather

1шт.

38

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

- 3/8" NPT male x 1/8" NPT female

1шт.

39

S216625

TUBE,60" L

oil breather

1шт.

40

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" NPT x 1" long

1шт.

41

13-1428

CAPSCREW,Hex, 7/8" - 9 x 1 3/4", Gr 5

CPSW - 7/8" NC x 1-3/4" gr 8 - (Reducer mounting)

1шт.

42

13-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 5

CPSW - 7/8" NC x 5-1/2" gr 8 - (Reducer mounting)

2шт.

43

S107839

WASHER

flat

3шт.

44

S608519

KIT

output shaft and roller improvement - (Consists of items 17 thru 24 and 42 on page 108) - (Supersedes S603734)

1шт.
